Recetor de microfone sem fios de secretária Omnitronic 13061092

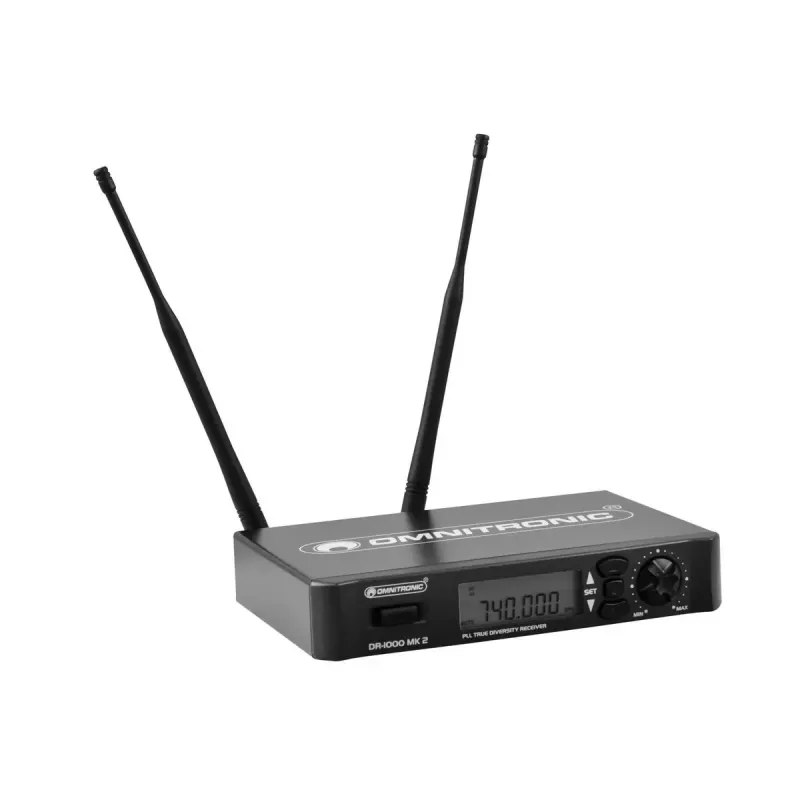

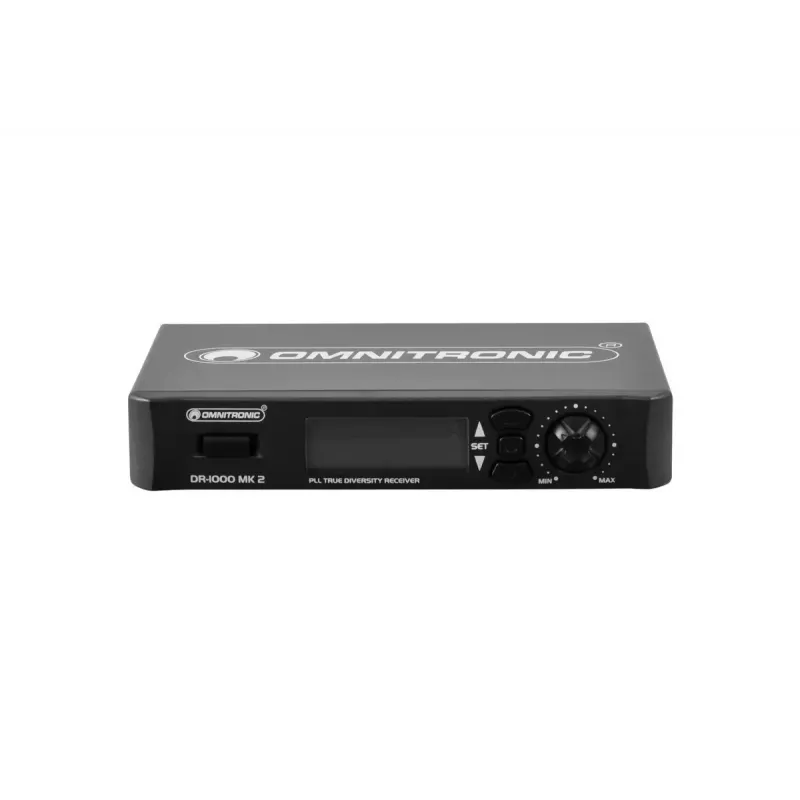

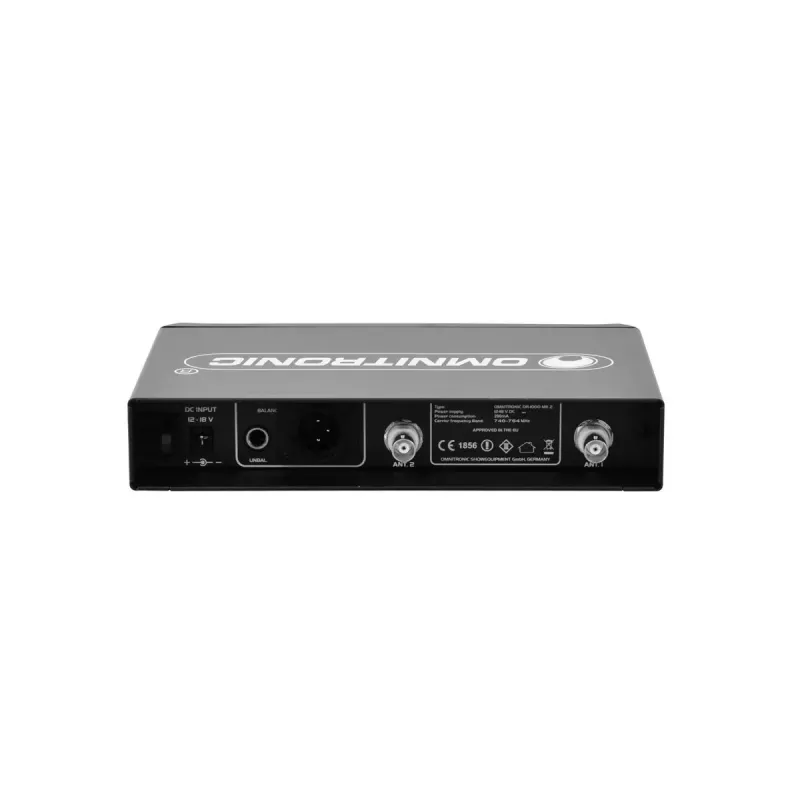

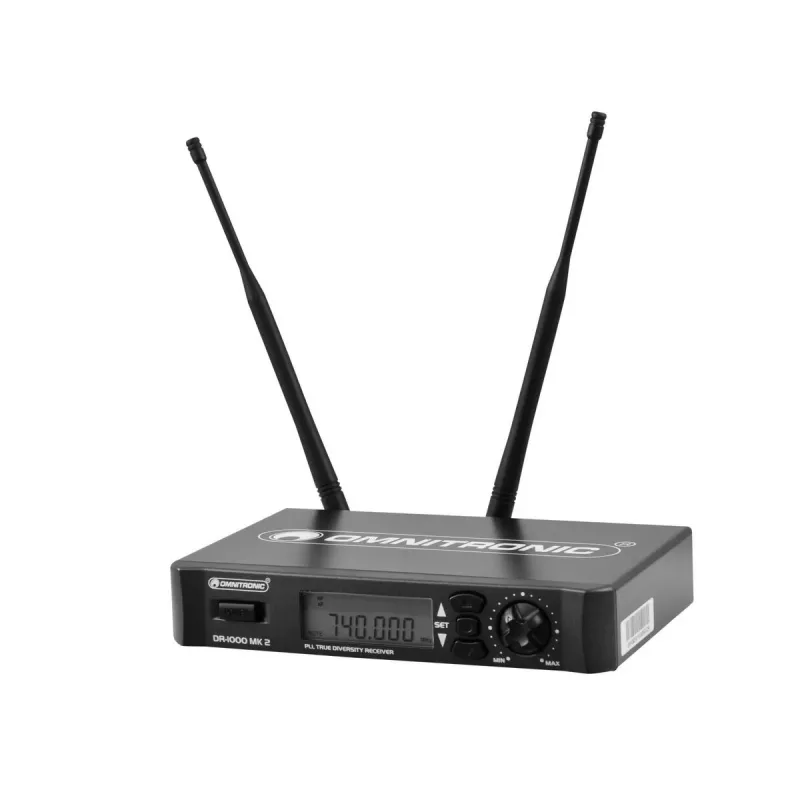

The Omnitronic 13061092 is a desktop wireless microphone receiver operating in the UHF 740–764 MHz band. Designed for professional audio applications, it supports a removable antenna and an AC power supply with a wide input range (100–240 V). Its compact dimensions (213 mm × 150 mm × 40 mm) make it suitable for fixed or portable setups where reliable wireless audio reception is required.

Advantages

The receiver is part of Omnitronic's 1000 series, offering access to 192 switchable frequencies within the UHF 740–764 MHz range, which allows operation of up to 16 intermodulation‑free wireless systems simultaneously. The compact desktop form factor and removable antenna provide flexible placement options while the universal AC power input ensures compatibility with different mains voltages.

Suitable for

Key specifications

How to use

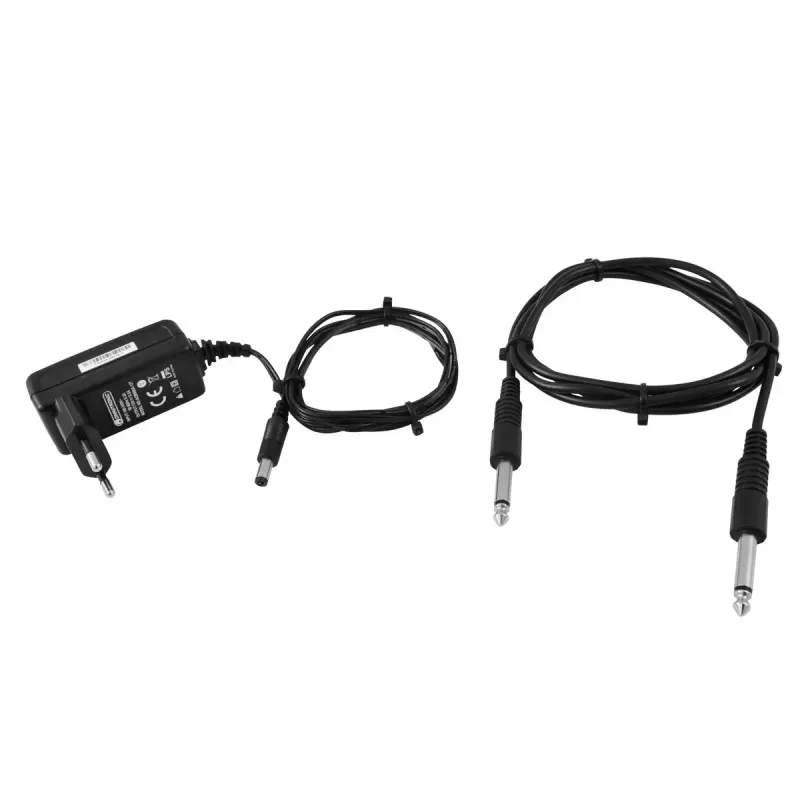

Connect the receiver to mains power using the supplied AC cable and attach the antenna to the designated connector. Place the unit on a stable desktop or rack shelf with clear line of sight to the wireless transmitters when possible. Power on the receiver and pair it with compatible Omnitronic transmitters (handheld, bodypack with headset, or lavalier) by selecting matching frequencies from the available 192 channels. Adjust receiver gain and routing to your mixing console or amplifier as required.

Recommendations

For best performance, distribute antennas and receivers to minimise obstructions and RF interference. When operating multiple systems, use the 192 switchable frequencies to assign intermodulation‑free channels and verify audio paths during a sound check.
