Recetor HDMI ATEN apenas através de 1 cabo CAT5e/6 (70 m), 4K/HDBaseT-Lite (Class B)

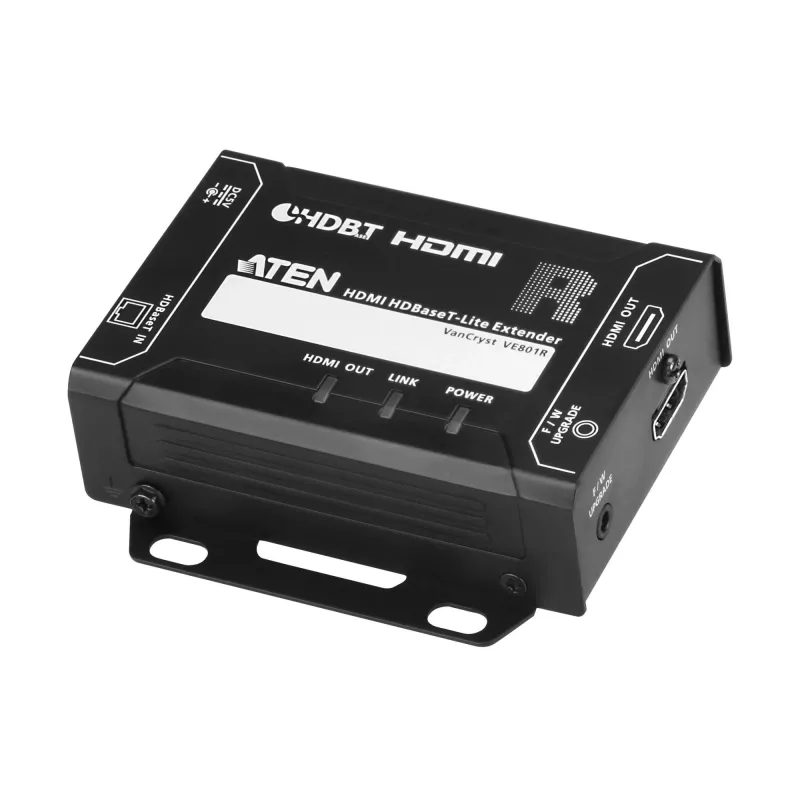

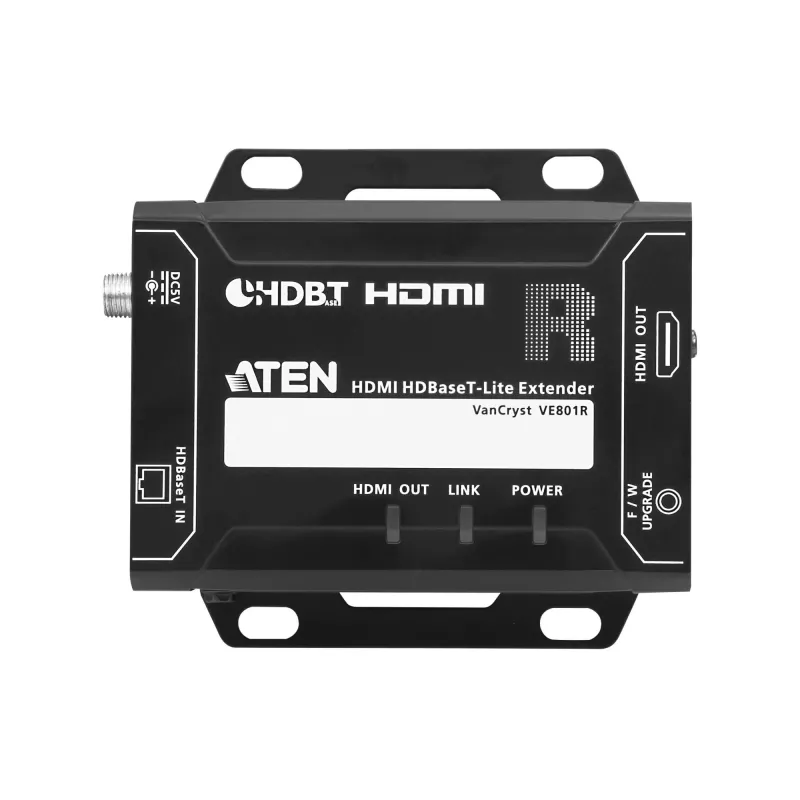

The ATEN VE801R-AT-G is an HDMI HDBaseT-Lite receiver that extends HDMI signals up to 70 m over a single Cat5e/6/6a cable. It supports resolutions up to 3840 x 2160 (4K), 3D and Deep Color, and carries multichannel audio including Dolby Digital 5.1 and DTS HD. The compact all-in-one housing (87 x 103 x 30 mm, 0.25 kg) is designed for flexible mounting and efficient operation, consuming 4.23 W.

Advantages

The VE801R-AT-G enables long-distance HDMI transmission with a single network cable, preserving high-resolution video and multichannel audio while remaining HDCP compatible. Its slip-resistant side grooves improve handling during installation and increase visibility of the LED status indicators. The compact, lightweight footprint simplifies placement in entertainment centers or integrated AV installations.

Suitable for

• Extending HDMI video and audio to remote displays up to 70 m away
• Home theaters and digital entertainment centers
• Conference rooms and meeting spaces requiring 4K signal distribution
• AV installations where a single Cat5e/6/6a cable is preferred

Key specifications

• Type: AV receiver
• Model: VE801R-AT-G (ATEN)
• Maximum resolution: 3840 x 2160 (4K)
• Maximum transfer distance: 70 m over Cat5e/6/6a
• HDMI outputs: 1
• RJ-45 input ports: 1
• Cable types supported: Cat5e, Cat6, Cat6a
• Power consumption: 4.23 W
• Dimensions: 87 x 103 x 30 mm
• Weight: 0.25 kg
• Color: Black

How to use

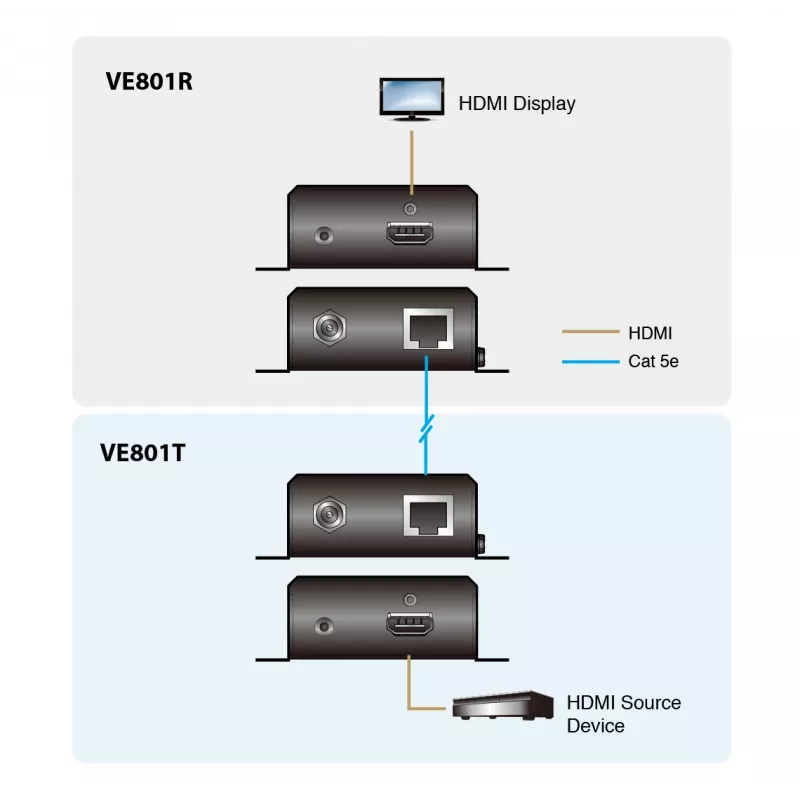

Connect the VE801R-AT-G receiver to a compatible ATEN HDBaseT transmitter (for example VE801T) using a single Cat5e/6/6a cable. Plug an HDMI cable from the receiver's HDMI output to the display. Power the unit and the transmitter according to their power supplies. Ensure source device settings match the desired resolution (up to 3840 x 2160). Observe the LED indicators on the side panel to confirm link and signal status during setup.

Recommendations

For reliable 4K transmission at longer distances use Cat6a or Cat6 cable and keep cable runs clear of strong electromagnetic interference sources. Verify HDBaseT transmitter compatibility (e.g., VE801T) and use quality HDMI cables for best video and audio performance.
