Recetor HDMI sobre TP ROLINE 14.01.3468 100 m

The ROLINE HDMI Receiver over TP (model 14.01.3469) extends an uncompressed HDMI signal up to 100 m when combined with the matching transmitter unit (ROLINE 14.01.3468) and a single Cat.5e or Cat.6 cable. It supports video resolutions up to 1920 x 1200 (including 1080p) and transmits uncompressed stereo audio. The compact metal-housed receiver includes an external infrared (IR) extender for remote-control pass-through and is supplied with the required power adapter and connection accessories.

Advantages

The receiver enables long-distance HDMI extension without additional signal compression and supports CEC pass-through for basic remote-control functionality. Its metal housing provides robust protection, and the package contains an IR extender, serial cable and power supply to simplify installation. Using a single twisted-pair cable to chain receivers allows flexible system expansion up to 100 m when used together with the ROLINE transmitter 14.01.3468.

Suitable for

• Extending HDMI from a source to a distant display up to 100 m
• Professional AV installations in meeting rooms and classrooms
• Multi-room signal distribution when chained with another receiver and 14.01.3468
• Setups requiring IR remote-control pass-through and uncompressed audio

Key specifications

• Model: ROLINE HDMI Receiver over TP 14.01.3469
• Max. nominal resolution over 100 m: 1920 x 1200, 1080p
• Transmission: uncompressed HDMI video and stereo audio

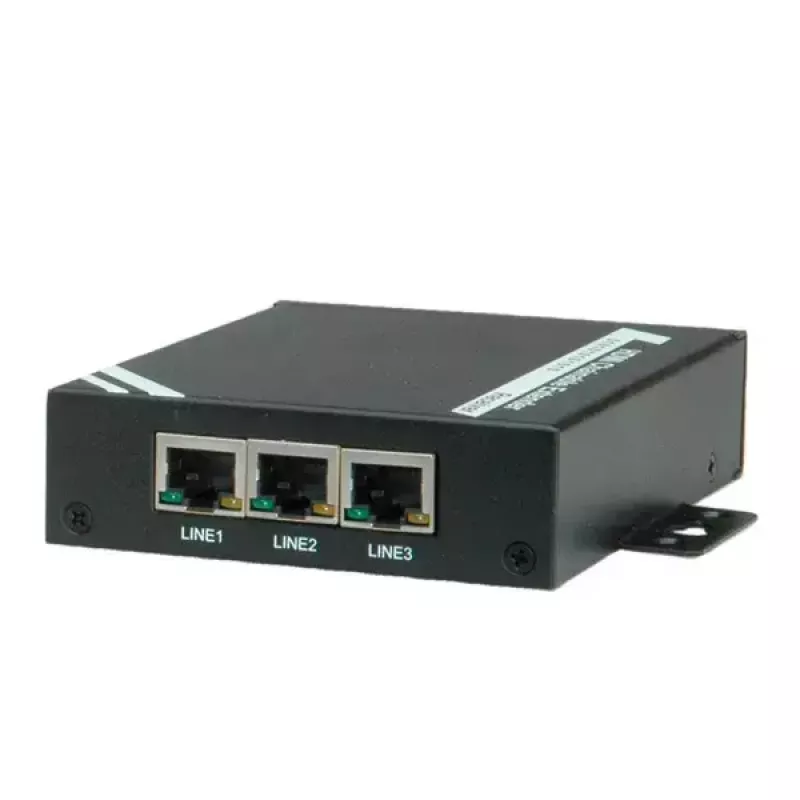

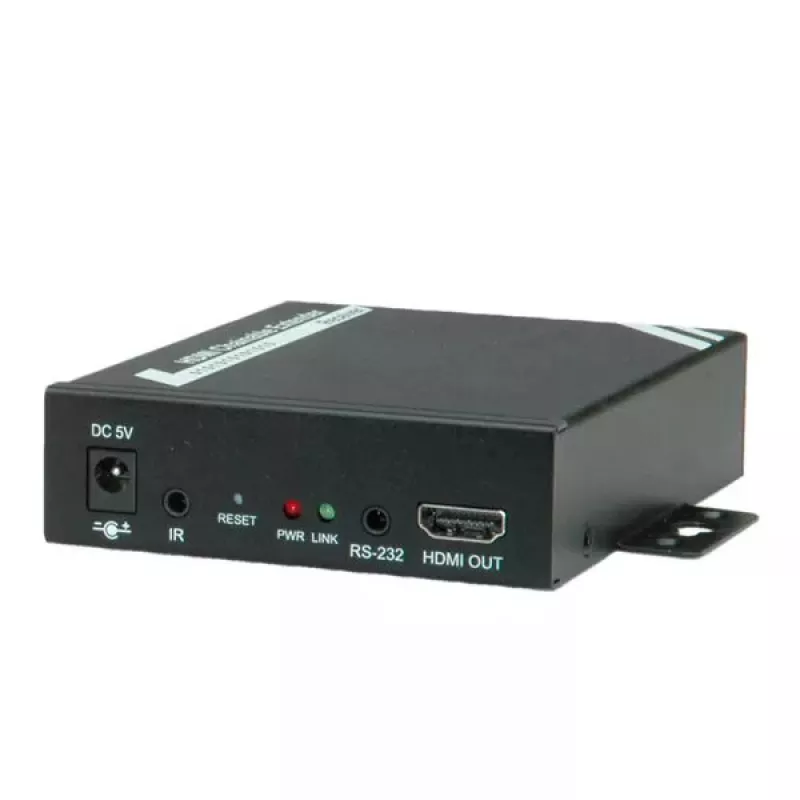

• Connectivity: 3× RJ-45 (F), 1× HDMI (F)
• IR: external infrared emitter included
• Power: external power supply included
• Housing: metal
• Dimensions (approx.): 28 x 115 x 91 mm
• Contents of delivery: receiver, infrared extender receiver, power supply, IR cable (1.1 m), serial cable (3.5 mm/DB9F, 1.1 m), manual

How to use

Connect the receiver's HDMI output to the display and link the receiver to the corresponding ROLINE transmitter (14.01.3468) using a single Cat.5e or Cat.6 twisted-pair cable. For chaining two receivers, connect them with a twisted-pair cable up to 100 m as specified and ensure the transmitter and receivers are powered. Attach the external IR emitter to enable remote-control commands from the source device through the extender.

Recommendations

For best results, use high-quality Cat.5e or Cat.6 cabling and keep cable runs within the specified 100 m limit. Verify compatibility with the ROLINE transmitter model 14.01.3468 and ensure proper grounding and stable power supply to avoid signal interruptions.
