Refrigeração Thermaltake CT140 EX ARGB 14 cm rosa 500-1800 RPM

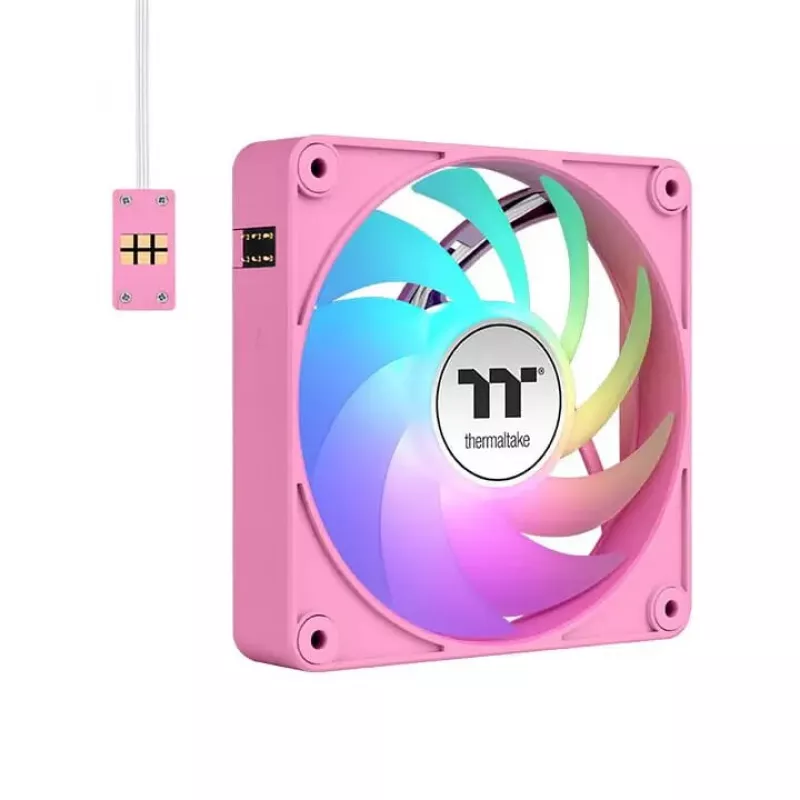

The Thermaltake CT140 EX ARGB Sync Pink is a 140 mm air cooler fan designed for PC case and radiator cooling. It uses the MagForce 2.0 quick connect magnetic system for easier fan-to-fan or cable connections, supports 9 addressable LEDs with motherboard ARGB sync, and operates across a speed range of 500–1800 RPM. The fan frame and blade design improve airflow and reduce gaps when mounted to chassis or radiator, while anti-vibration rubber pads at the corners reduce vibration and help maintain stable operation.

Advantages

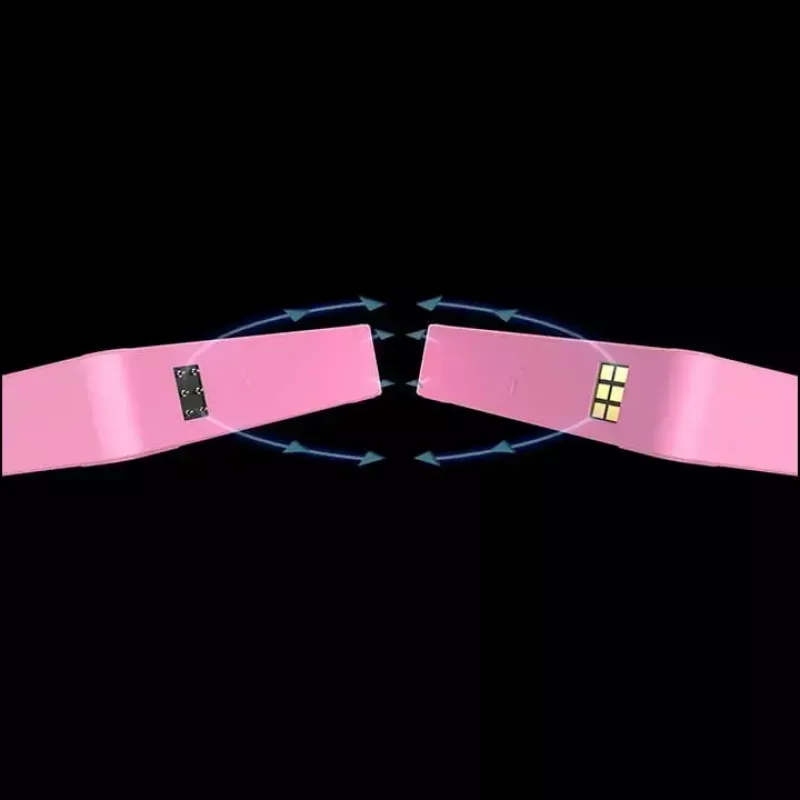

MagForce 2.0 provides a steadier magnetic connection with doubled pogo pin contact pad area to reduce misalignment during daisy-chaining or cable connections. The fan delivers up to 90.3 CFM airflow and 3.07 mm-H2O static pressure at a measured noise level of 30.7 dB-A, offering improved cooling performance within the CT series limits. The robust frame design minimizes deformation and improves sealing against chassis or radiator surfaces. Nine addressable LEDs allow synchronization with motherboard RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, ASRock Polychrome) for full ARGB control.

Suitable for

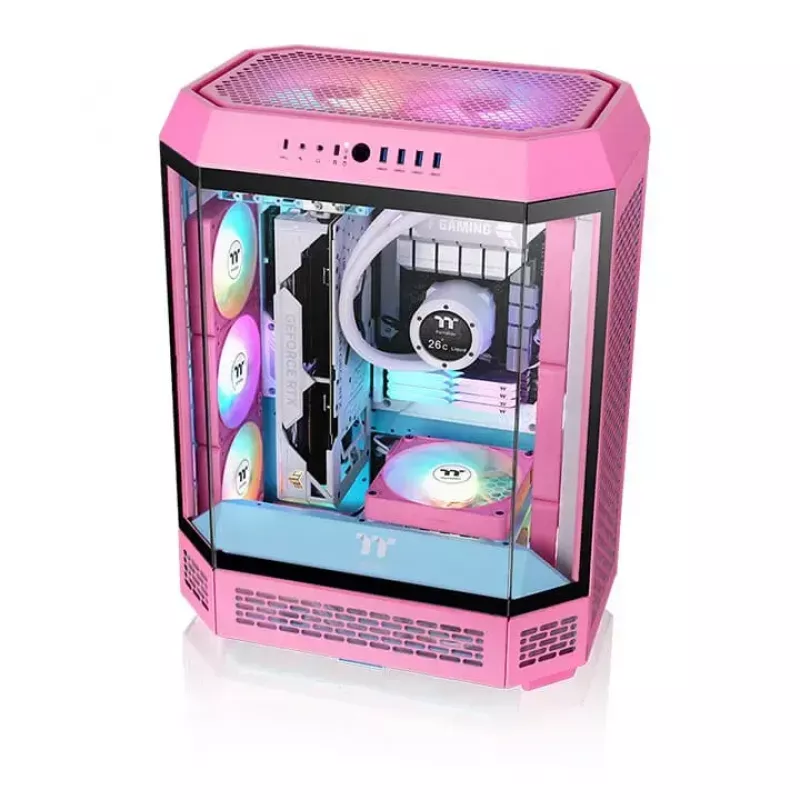

• Case cooling for mid-tower or full-tower PC builds

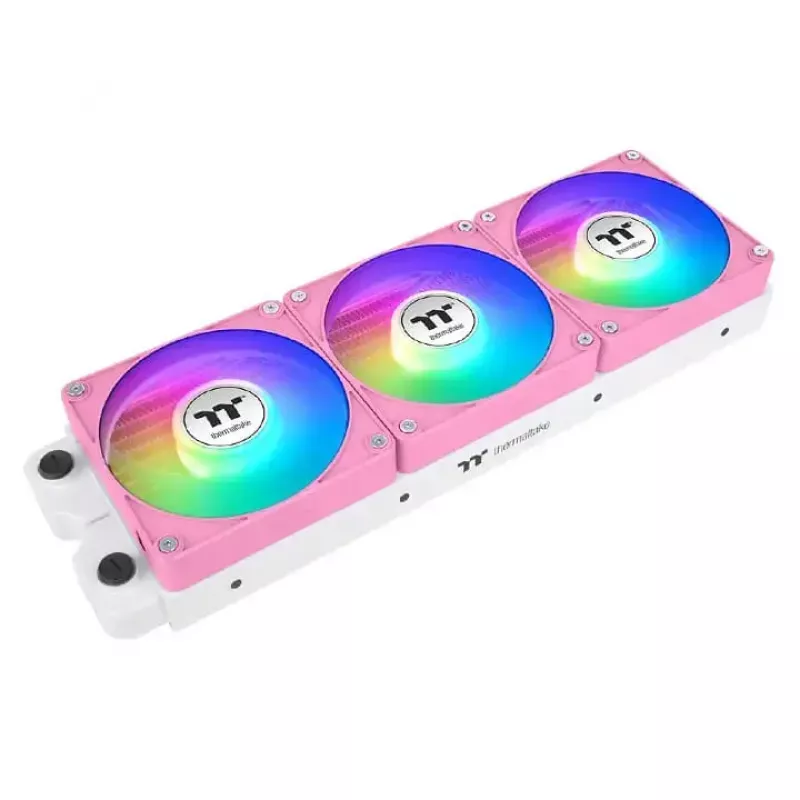

• Radiator fan in 140 mm liquid-cooling setups
• Systems requiring ARGB lighting synchronized via 5V addressable RGB header
• Environments where reduced cable clutter and quick fan installation are desired

Key specifications

• Fan diameter: 140 mm
• Speed range: 500–1800 RPM
• Maximum airflow: 90.3 CFM
• Maximum static pressure: 3.07 mm-H2O
• Noise level: 30.7 dB-A
• LEDs: 9 addressable RGB LEDs (requires motherboard 5V ARGB header for sync)
• Bearing type: Hydraulic bearing
• Operating voltage: 12V (fan) and 5V (ARGB)
• Dimensions: 140 x 140 x 25 mm
• Colour: Pink

How to use

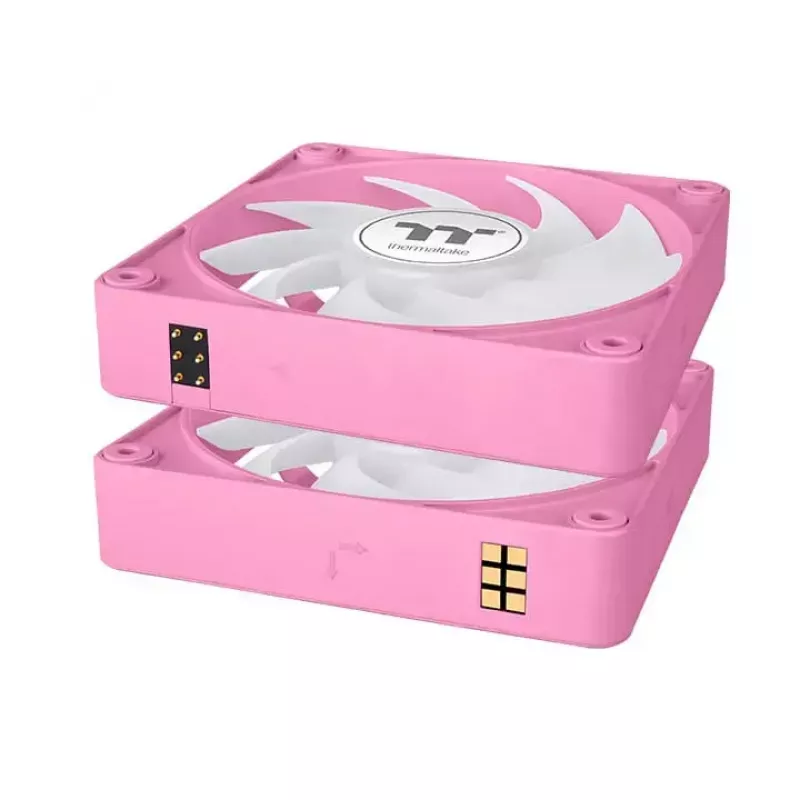

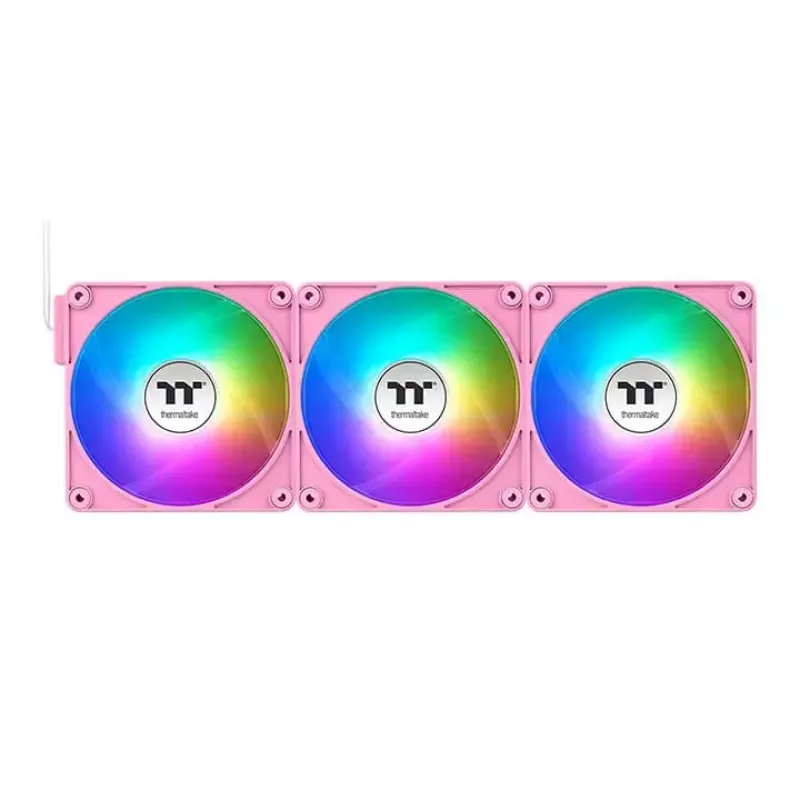

Install the CT140 EX ARGB fan in a compatible 140 mm mounting position on the case or radiator using the provided screws. For ARGB lighting, connect the 5V addressable RGB connector to a motherboard header that supports 5V ARGB and enable synchronization through the motherboard RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, ASRock Polychrome). Use the MagForce 2.0 magnetic quick connect to daisy-chain multiple CT EX fans or to connect fans with the supplied cable for simplified wiring. Ensure correct orientation for airflow and secure the anti-vibration pads at the corners where applicable.

Recommendations

Use a compatible 5V ARGB motherboard header to control lighting; check motherboard documentation for header location and software compatibility. When mounting multiple fans, align MagForce 2.0 connectors carefully and avoid forcing misaligned magnetic contacts to prevent damage. Maintain regular dust cleaning to preserve airflow and cooling efficiency.
