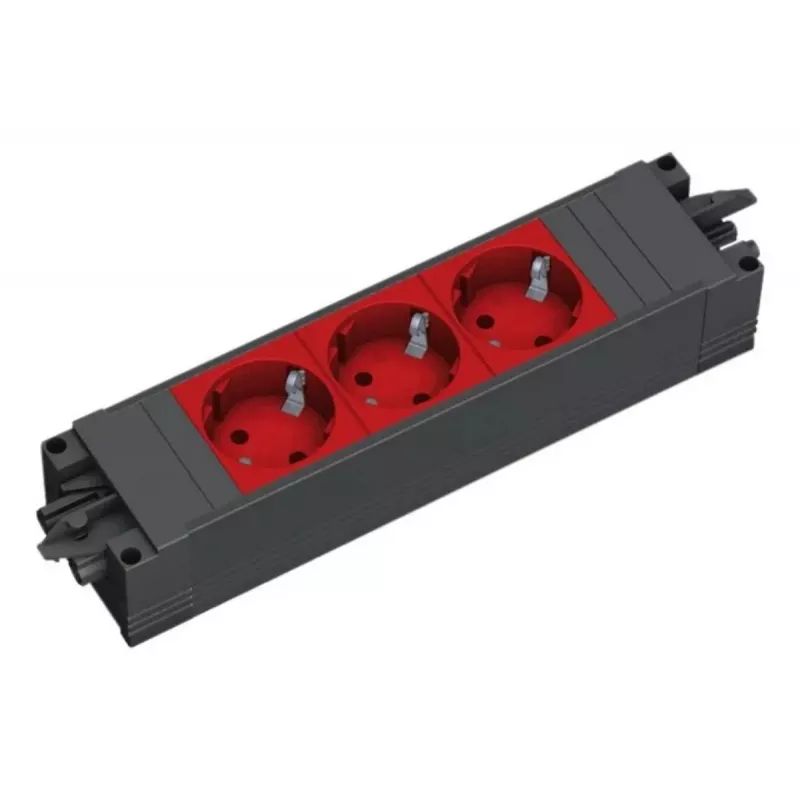

Régua de tomadas Bachmann STEP BASE 3 tomadas, 250 V 16 A, caixa de plástico, IP20, vermelho, 52×230×44 mm

Bachmann STEP BASE is a compact 3‑outlet power strip designed for indoor use. The unit provides three CEE7/standard AC outlets in a plastic housing with IP20 protection and a rated voltage of 250 V at 50 Hz. It accepts a maximum current of 16 A and measures 52 × 230 × 44 mm. The model includes a GST18i3 power input connector and is supplied with end caps and locking tabs for integration into furniture, cable ducts or partition installations.

Advantages

The STEP BASE combines a slim profile with three safety sockets arranged at a 35° angle to facilitate cable routing and device connection. The plastic housing and IP20 rating make it suitable for protected indoor environments, while the GST18i3 connector enables flexible power supply options and simple linking to compatible device extensions. Supplied accessories such as end caps and latching connectors support secure mounting and joining of multiple units.

Suitable for

• Installation under tabletops or worktops in offices or meeting rooms
• Mounting inside cable ducts and trunking systems
• Integration into partition walls or furniture for local power distribution

Key specifications

• Number of outlets: 3 AC sockets (CEE7 / Type F)
• Rated voltage: 250 V, 50 Hz
• Rated current: 16 A
• Protection class: IP20 (indoor use, protection against contact and solid objects)
• Socket orientation: 35° turned safety sockets
• Housing material: plastic profile
• Power input connector: GST18i3
• Dimensions (W × L × H): 52 × 230 × 44 mm
• Colors: light gray profile with red sockets

How to use

Connect the Bachmann STEP BASE to a compatible mains feed using the GST18i3 power input. Mount the unit in the desired location — for example under a table top, inside a cable duct or in a partition — using the supplied end caps, locking tabs and available mounting accessories. Plug appliances into the three CEE7 outlets, observing the 16 A maximum load across the device. Ensure the installation environment is dry and reserved for indoor use in accordance with the IP20 protection rating.

Recommendations

Verify that the total current draw of connected equipment does not exceed 16 A. Use the GST18i3 connection and optional device extensions when linking multiple STEP BASE units; follow local electrical regulations and, if needed, consult a qualified electrician for fixed installations or concealed wiring.
