Régua de tomadas Bachmann STEP BASE 4 tomadas com GST18 4 saídas AC 250V 16A

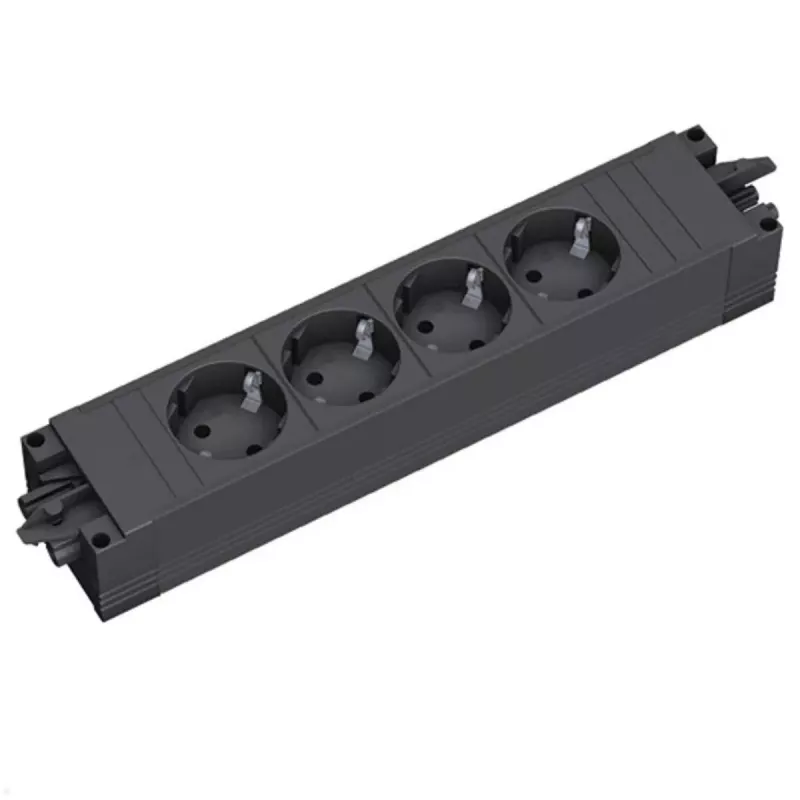

Bachmann STEP BASE (906.18819) is a compact 4-way power strip designed for indoor use. It features four 35°-turned safety AC sockets, accepts a Wieland GST18 power input for flexible cable entry options, and supports a nominal voltage of 250 V with a maximum current rating of 16 A. Its compact dimensions (272 mm × 44 mm × 52 mm) make it suitable for installation in confined spaces such as under tabletops, inside cable ducts or partitions.

Advantages

The STEP BASE unit offers four safety sockets arranged at a 35° angle to improve plug access and reduce bending stress on cables. The integrated Wieland GST18 inlet provides standardized, tool-free connection options and allows the unit to be fed from different cable entries. The compact aluminium/plastic housing and slim profile enable inconspicuous installation in furniture, workstations and service channels.

Suitable for

• Power distribution under desks and meeting tables
• Integration into cable ducts and cable management systems
• Fixed installations in partitions and office furniture
• Temporary or semi-permanent power setups where compact form factor is required

Key specifications

• Brand: Bachmann
• Model / MPN: 906.18819
• EAN: 4057298150258
• Number of outlets: 4 AC outlets (safety sockets, 35° turned)

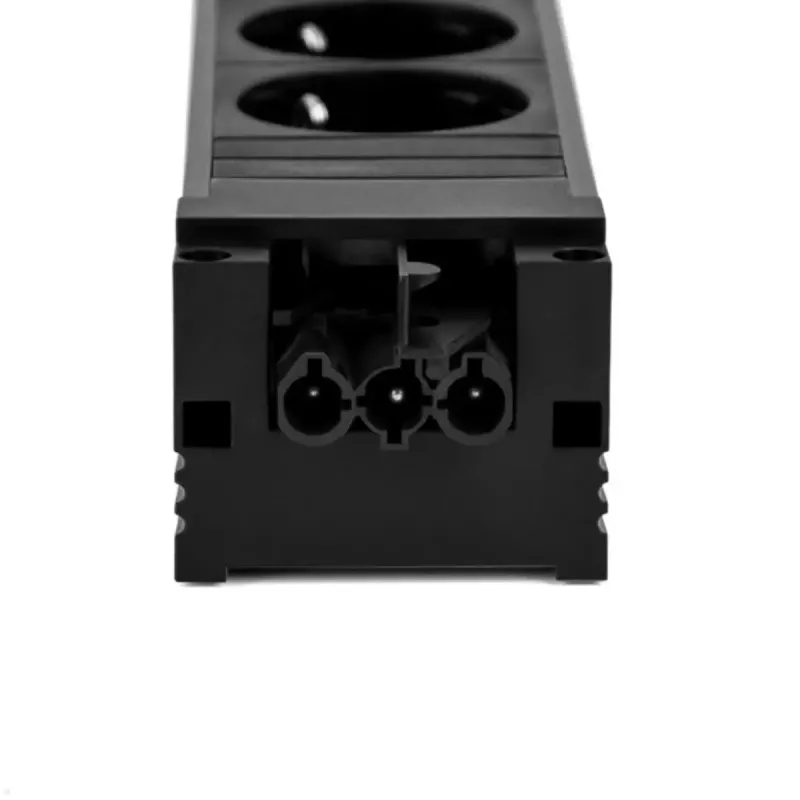

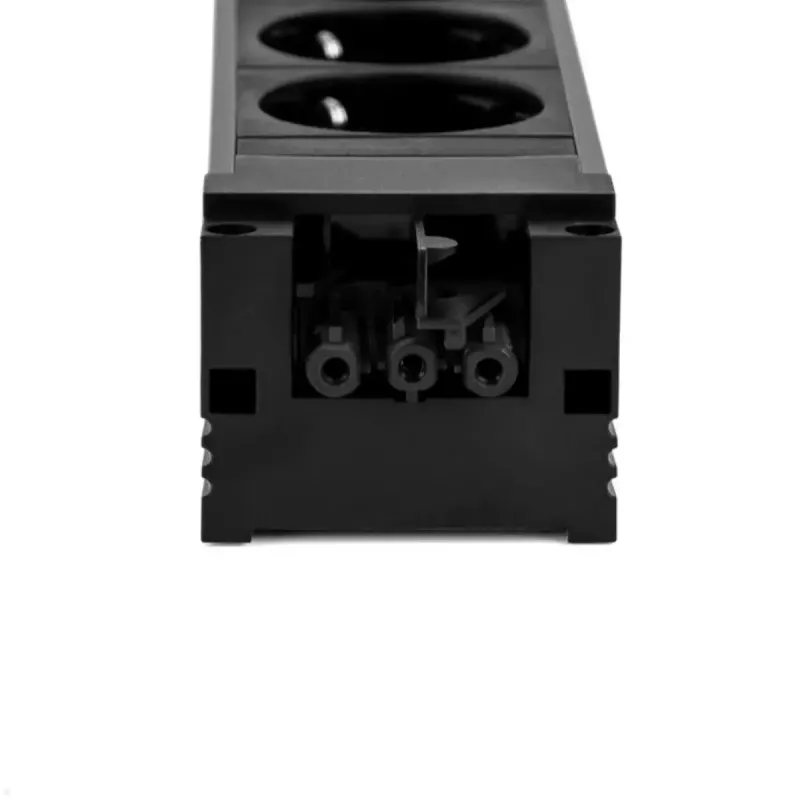

• Input connector: Wieland GST18
• Rated voltage: 250 V
• Rated current: 16 A
• Dimensions (W × D × H): 272 mm × 44 mm × 52 mm
• Intended use: Indoor power distribution

How to use

Mount the Bachmann STEP BASE in the chosen location such as under a tabletop or inside a cable duct using appropriate fasteners or mounting accessories. Connect the GST18 inlet to a compatible Wieland feed cable or distribution system, ensuring power is switched off during installation. After connection, plug electrical devices into the four safety sockets. Observe the rated current (16 A) and the rated voltage (250 V) when connecting loads to avoid overloading the unit.

Recommendations

Use compatible Wieland GST18 wiring and certified installation practices for fixed connections. Avoid exposing the unit to moisture, direct sunlight or mechanical stress. Do not exceed the rated 16 A current; distribute high-power devices across multiple circuits if necessary.
