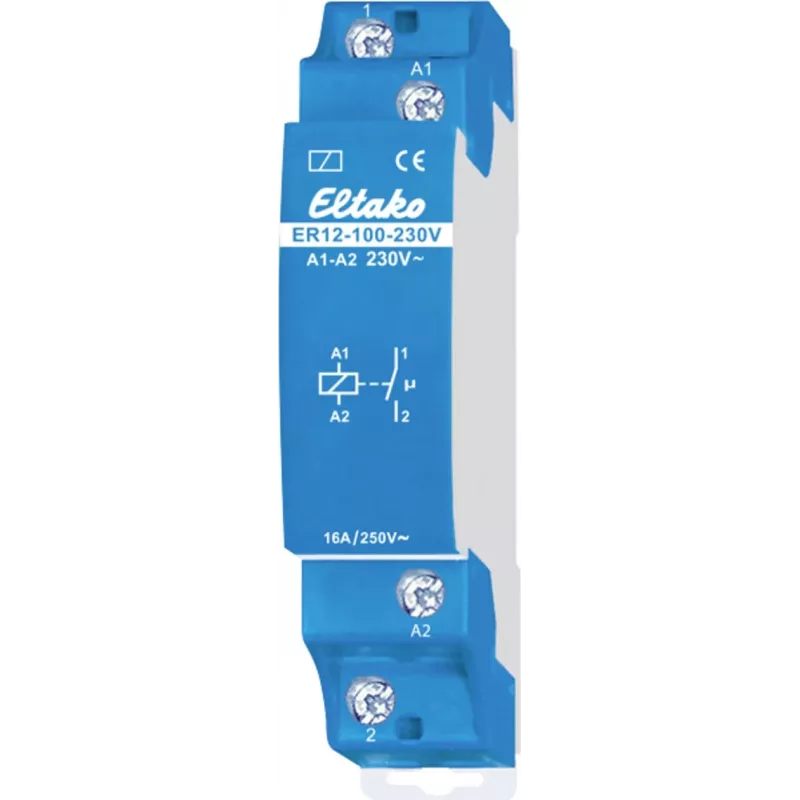

Relé eletrónico Eltako ER12-100-230V 16A 1NO 230V AC calha DIN 22100000

For switching loads up to 16 A with minimal standby consumption, the Eltako ER12-100-230V electronic switching relay stands apart from conventional electromechanical relays. Its silent, wear-free operation and compact 1-module DIN rail housing make it ideal for lighting and heating control in residential and commercial installations. The relay features a single normally open contact, controlled by a 230 V AC input, and handles a wide range of lamp types including LED, incandescent, halogen, and fluorescent loads. With a standby loss of only 0.8 W and a maximum switching frequency of 600 operations per hour, it offers both energy efficiency and reliable performance in demanding switching applications.

Highlights

• Electronic switching relay with 1 NO contact, 16 A / 250 V AC rating
• Control voltage 230 V AC, suitable for direct mains switching
• Silent operation with no mechanical wear, extending service life
• Compact DIN rail mounting, width only 1 module (18 mm)
• Low standby loss of 0.8 W, reducing energy costs
• Supports LED lamps up to 200 W, incandescent/halogen up to 2000 W
• High switching frequency up to 600 operations per hour
• Wide ambient temperature range from -20°C to +50°C

In daily use

Installation is straightforward: the ER12-100-230V snaps onto a standard 35 mm DIN rail (EN 60715 TH35) and connects via screw terminals. It is commonly used to switch lighting circuits, heating elements, or small motors where silent operation is preferred. The relay's electronic design eliminates contact bounce and arcing, making it suitable for frequent switching. Its IP20 protection class means it should be installed inside a distribution board or enclosure. The device requires no minimum load for reliable operation, but a minimum switching power of 100 mA at 10 V AC/DC is specified for contact wetting.

Full specifications

• Product type: Electronic switching relay
• Contact configuration: 1 NO (normally open)
• Maximum switching current: 16 A
• Maximum switching voltage: 250 V AC
• Control voltage: 230 V AC
• Rated operating voltage: 230 V AC
• Mounting type: DIN rail (EN 60715 TH35)
• Module width: 1 TE (18 mm)
• Connection type: Screw terminals
• Standby loss: 0.8 W
• Incandescent lamp load: 2000 W
• Halogen lamp load (HV): 2000 W
• Fluorescent lamp load (uncompensated): 1000 VA
• LED lamp load (>2 W): 200 W
• Ambient temperature range: -20°C to +50°C
• Protection class: IP20
• Housing material: Thermoplastic
• Switching frequency: max. 600 operations/hour
• Minimum switching power: 100 mA at 10 V AC/DC

Final note

The Eltako ER12-100-230V combines modern electronic switching technology with a proven DIN rail format. Its low standby consumption and silent operation make it a forward-looking choice for energy-conscious installations, while its robust load handling ensures compatibility with a wide range of lighting and heating systems.
