Relé temporizador multifunções METZ CONNECT MFRk-E12 0,15-800s, 24-240V AC/DC, 1 CO 110310412230

Ten selectable timing functions in a single 17.5 mm module make the METZ CONNECT MFRk-E12 a versatile solution for control cabinet automation. With a wide time range from 0.15 seconds to 800 seconds across seven ranges and a universal supply voltage of 24–240 V AC/DC, this relay adapts to almost any application without additional components.

Overview

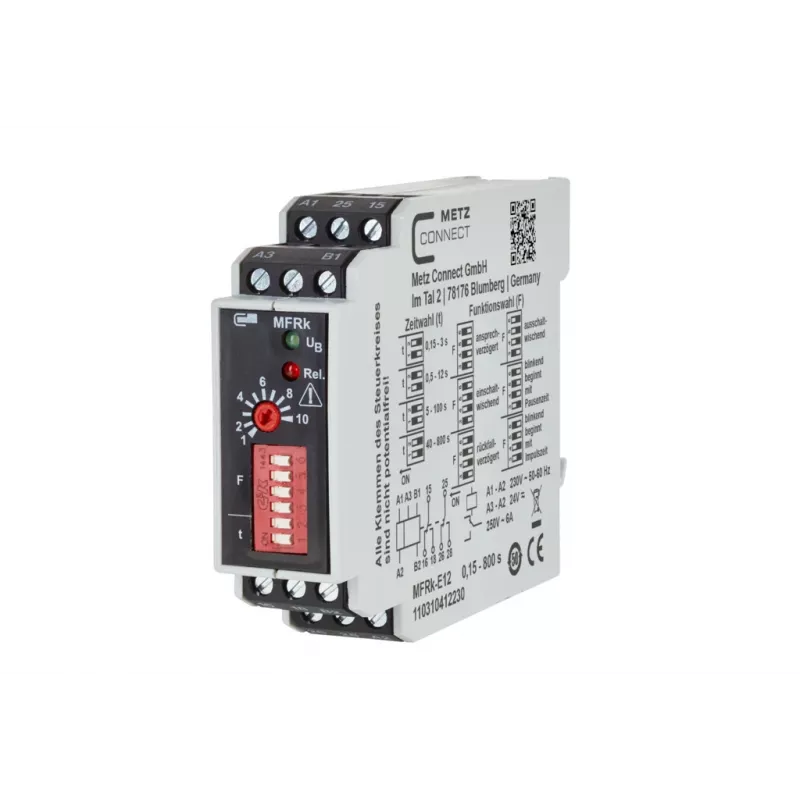

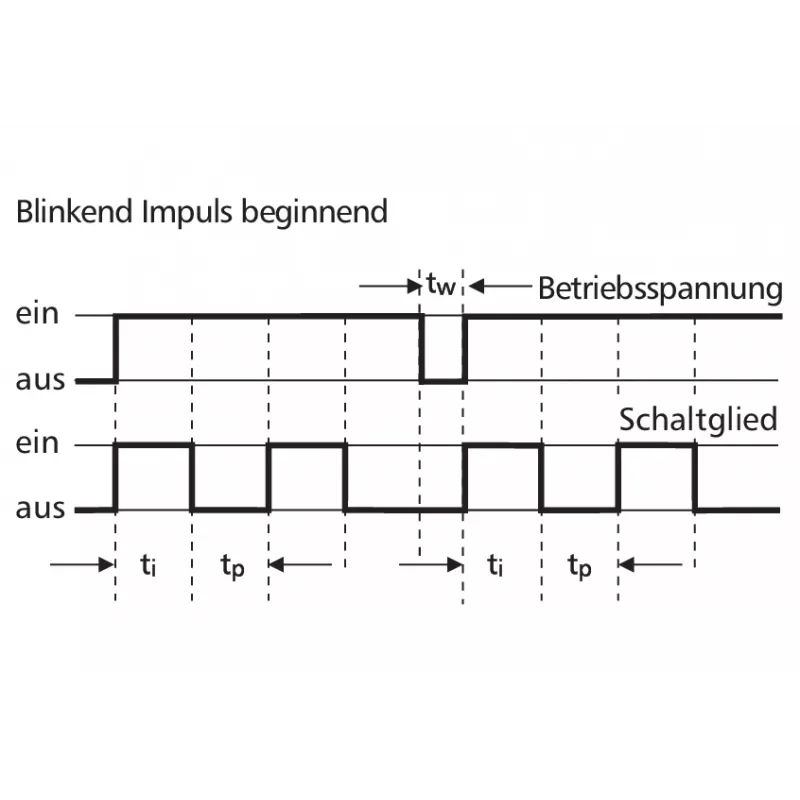

The MFRk-E12 is a multifunction time relay designed for DIN rail mounting. It offers ten different timing functions, including on-delay, off-delay, interval, and pulse shaping, selectable via front rotary switches. The time value and range are also set using rotary switches, allowing precise adjustment without programming. A status LED indicates the relay state and timing progress. The relay provides one changeover contact rated for 5 A at 250 V AC, suitable for controlling contactors, valves, or signalling devices.

What stands out

• Ten selectable functions cover most timing requirements
• Wide time range: 0.15 s to 800 s across seven ranges
• Universal supply voltage: 24–240 V AC/DC
• Compact 17.5 mm width saves space on the DIN rail
• Rotary switches for easy, tool-free configuration
• LED status indicator for quick diagnostics
• High electrical life: 100,000 operations

Technical details

• Supply voltage: 24–240 V AC/DC
• Output: 1 changeover (SPDT) contact
• Contact rating: 5 A / 250 V AC (resistive)
• Mounting: DIN rail EN 60715 TH35
• Connection: screw terminals
• Setting: rotary switches for function, time range, and time value
• Operating temperature: -25 °C to +55 °C
• Protection degree: IP20 (housing), IP40 (front)
• Power consumption: max. 3 VA (AC), max. 1.5 W (DC)
• Module width: 17.5 mm (1 TE)
• Mechanical life: 10^7 operations

Our verdict

For engineers and panel builders who need a reliable, flexible time relay without the complexity of programmable devices, the MFRk-E12 is an excellent choice. Its universal voltage input and wide timing range reduce inventory, while the compact design and clear LED indication simplify installation and troubleshooting.
