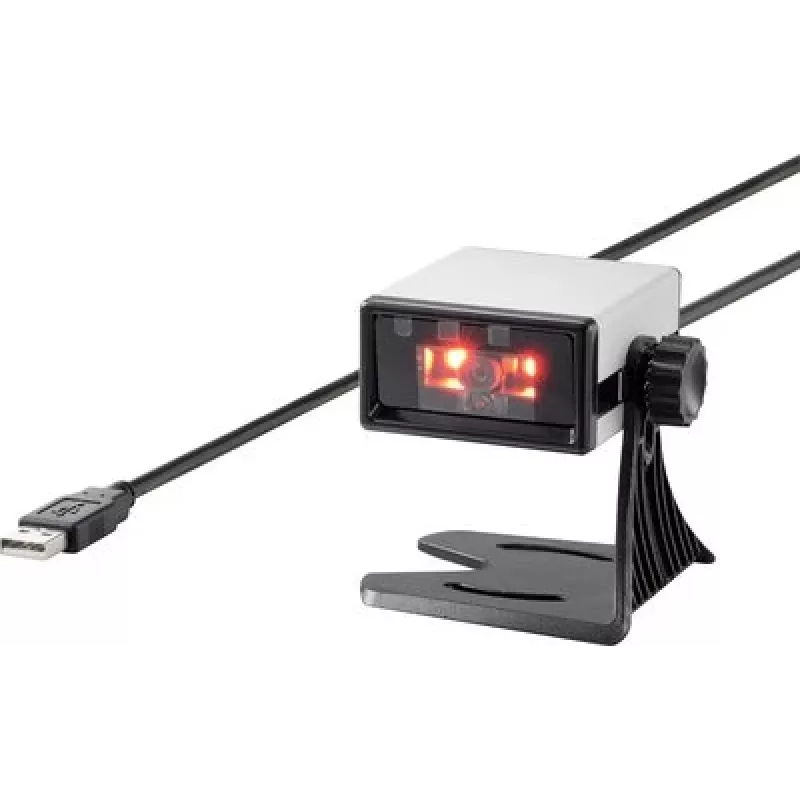

Renkforce FS5022J Leitor de códigos de barras 2D com fio USB estacionário de secretária prateado/preto RF-3794272

At busy retail checkouts, warehouse receiving docks, and hospital admissions desks, the Renkforce FS5022J 2D barcode scanner reads both 1D and 2D codes instantly. Its stationary design and automatic scan mode let staff keep both hands free for handling items, while the white LED illumination and 640 x 480 CMOS sensor deliver fast, accurate decoding of printed and on-screen barcodes.

Key specifications

• Scanning technology: 2D Imager (CMOS)
• Connectivity: Wired USB
• Supported 1D barcodes: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar
• Supported 2D barcodes: QR Code, Data Matrix, PDF417, Aztec Code, Maxicode, Micro QR, Micro PDF417
• Scan modes: Automatic, Continuous, Manual (Trigger)
• Light source: White LED
• Sensor resolution: 640 x 480 pixels
• Scan angle: Horizontal 40°, Vertical 30°
• Minimum print contrast: ≥ 20%
• Indicators: LED, Beeper
• Input voltage: 5V DC via USB
• Current consumption: 200 mA (operating)
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Humidity: 5% - 95% RH (non-condensing)
• Drop resistance: 1.5 m to concrete
• IP rating: IP52
• Cable length: 1.8 m
• Color: Silver, Black

Why choose it

This scanner combines rugged durability with versatile decoding. The IP52 rating protects against dust and light moisture, while the 1.5 m drop resistance ensures reliability in fast-paced environments. Its compact stationary form factor saves counter space and reduces operator fatigue compared to handheld units.

Ideal use cases

• Retail point-of-sale for scanning items and mobile coupons
• Warehouse receiving and inventory management
• Healthcare patient identification and medication tracking
• Ticket validation at events and transportation hubs
• Library self-checkout and document tracking

Good to know

The scanner is powered directly via USB, eliminating the need for an external power supply. It includes a stand for fixed presentation scanning, and the automatic mode triggers scanning when a barcode is presented, improving throughput. The 1.8 m cable offers flexible placement options.
