Repetidor AV Lindy Controlador SDVoE 3840 x 2160 Píxeis Cabo Cat6 Com fios Micro-USB

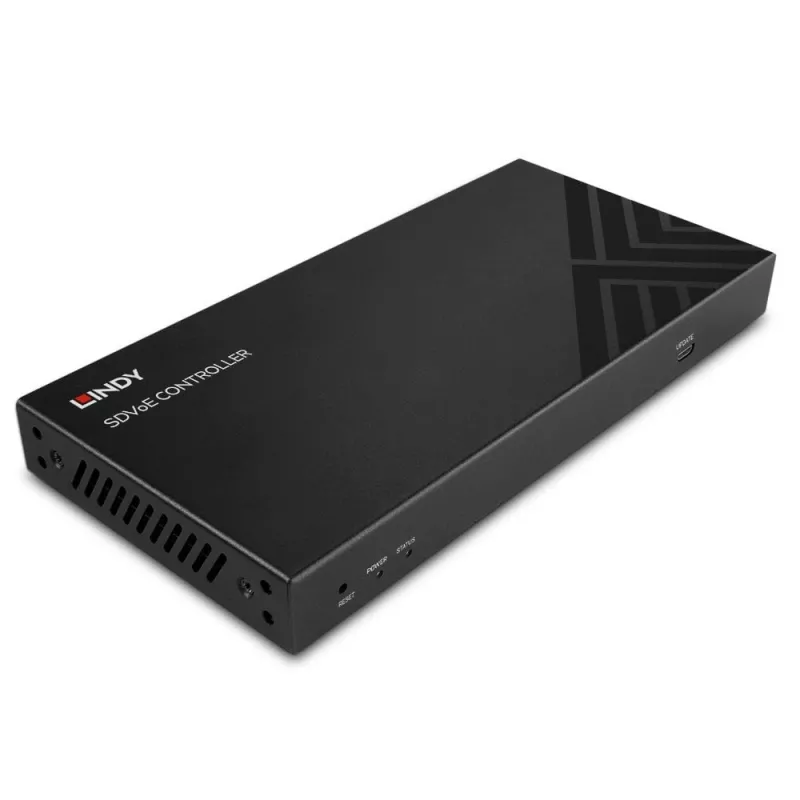

The Lindy SDVoE Controller is an AV repeater designed for 4K60 over IP installations, supporting a maximum resolution of 3840 x 2160 pixels and transmission over Cat6 up to 100 m. The unit provides a web-based visual interface with signal preview and drag-and-drop configuration to manage large AV systems, including multi-view and video wall setups. It includes dual network ports for network isolation, a PoE-capable gigabit interface for optional power without using the included PSU, and a Micro-USB service/power connector. This controller requires a 10 Gigabit SDVoE network and compatible extender transceiver units to operate.

Advantages

The controller offers uncompressed, low-latency AV distribution following the SDVoE standard and centralised management of matrix switching, multi-view layouts and video walls via an intuitive browser interface. Dual network ports allow separating control and multicast traffic, and third-party RS-232 control is supported for integration with existing control systems. PoE support simplifies installation when a PoE-capable switch is available.

Suitable for

• Conference rooms and meeting spaces requiring 4K60 AV distribution
• Control rooms and command centres with video wall and multi-view needs
• Large AV installations where centralised management and matrix control are required

Key specifications

• Product type: AV repeater
• Maximum resolution: 3840 x 2160 (4K)
• Cable types supported: Cat6
• Maximum transfer distance: up to 100 m

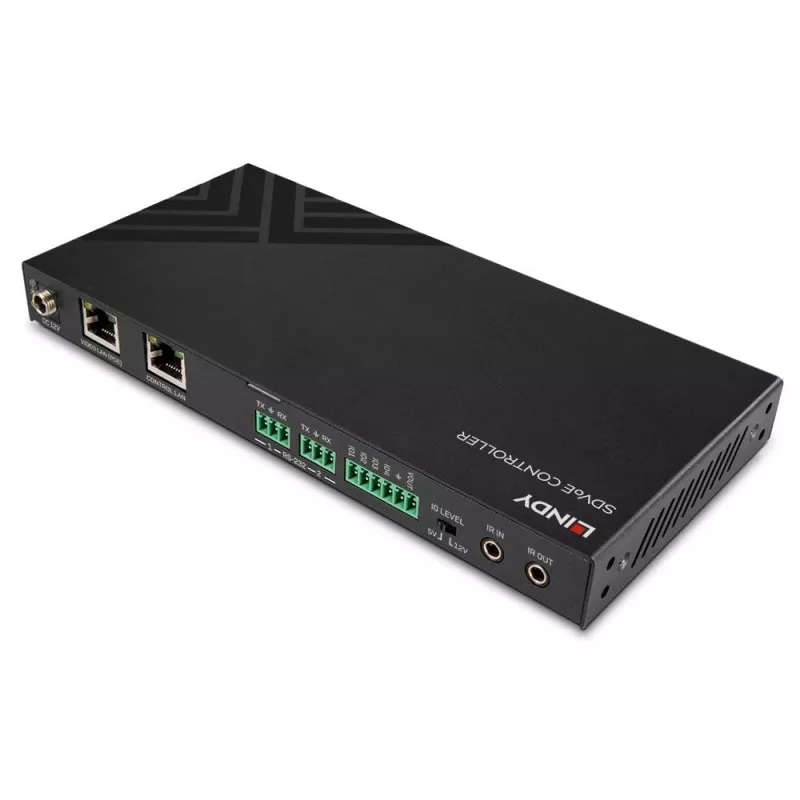

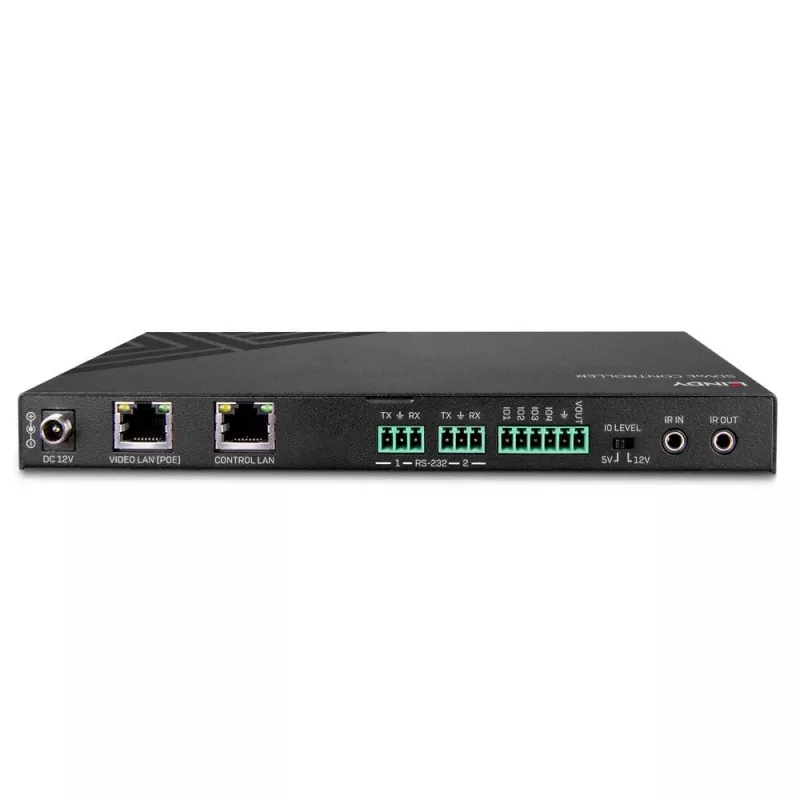

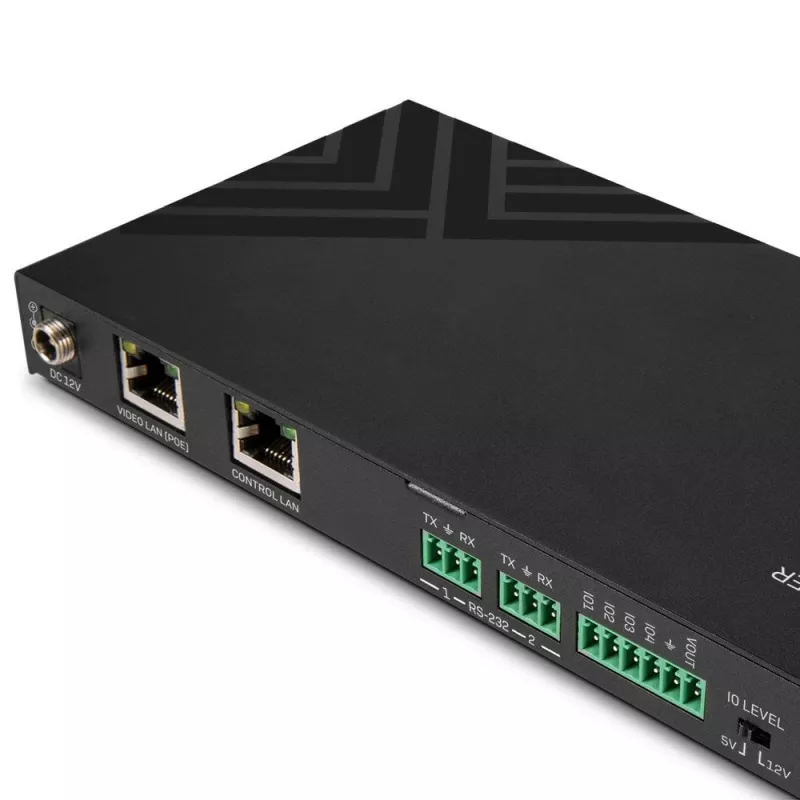

• Network ports: dual RJ-45 (gigabit), requires 10G backbone for SDVoE extenders
• Inputs / outputs: 1 RJ-45 input port, 1 RJ-45 output port
• Power: 12 V ⎓ 1 A (PSU included) and PoE-capable gigabit interface

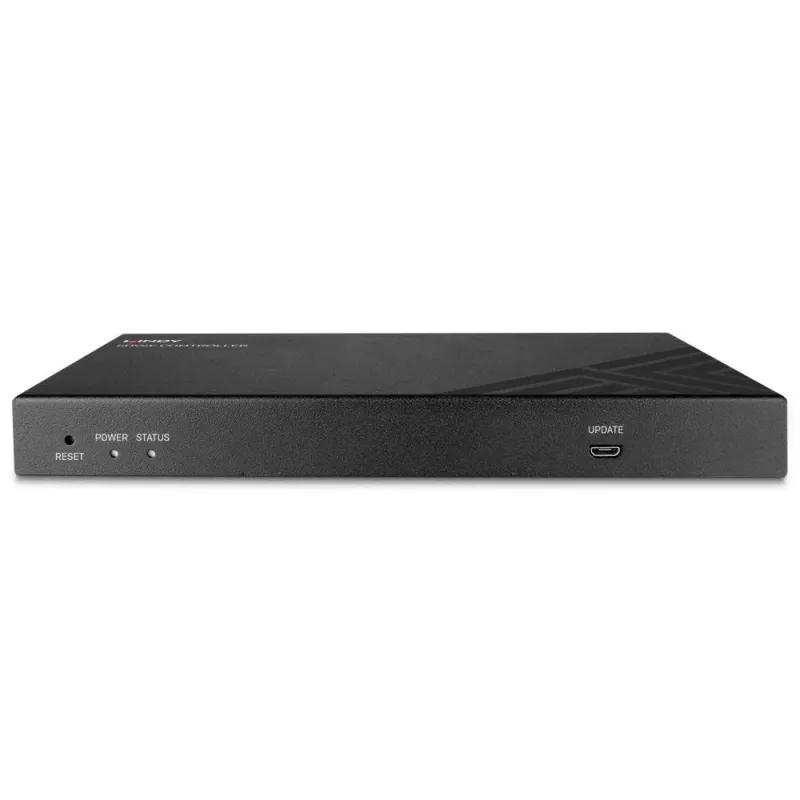

• Connectors: Micro-USB (service/power)
• Colour: Black
• Weight: 0.76 kg

How to use

Install the Lindy SDVoE Controller into the 10 Gigabit network where SDVoE extender transceiver units are deployed. Connect the controller to the network using Cat6 cabling and link the extenders to the same 10G network. Access the device management interface through a web browser to preview sources, arrange multi-view or video wall configurations and perform drag-and-drop routing. Use the dual network ports to separate control and multicast traffic as required. If a PoE-capable switch is available, the unit can be powered via PoE; otherwise, connect the supplied 12 V, 1 A PSU to the Micro-USB power input. For integration with third-party control systems, use the RS-232 central control option where supported.

Recommendations

Ensure the unit is connected to a 10 Gigabit SDVoE-capable backbone and paired with compatible Lindy SDVoE extender transceivers; the controller will not operate as intended on a standard 1G network. Use Cat6 cabling for horizontal runs up to 100 m and separate the control network from multicast traffic using the dual ports to improve stability and manageability.
