Repetidor de rede LevelOne Industrial IP67 PoE BT Extender/Repeater

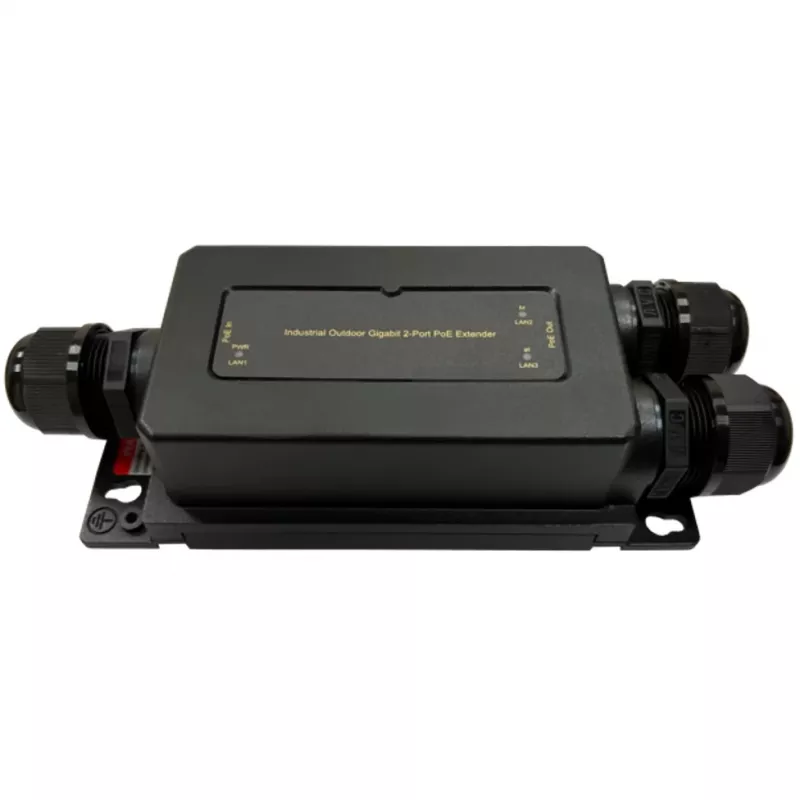

The LevelOne POR-1322 is a PoE repeater designed to extend Power over Ethernet network reach beyond the standard 100 meters. It requires no external power supply and draws power from a compatible Power Sending Equipment (PSE), such as a PoE switch. The device enables installers to extend a PoE network up to 500 meters using a chain of up to four POR-1322 units, providing a simple and durable way to connect remote devices.

Advantages

The POR-1322 operates without additional software or external power adapters, simplifying installation and reducing cable infrastructure. Its passive power sourcing from the PSE makes it flexible for integration into existing PoE systems. The unit is compact and durable, suitable for extending connectivity to locations that are difficult to reach with standard Ethernet cabling.

Key specifications

• Function: PoE repeater (Power over Ethernet extender)
• Maximum extension distance: up to 500 meters with up to 4 nodes
• Power source: receives power from PSE (e.g., PoE switch), no external power required
• Installation: plug-and-play, no software required
• Typical applications: rooftop, factory floor, airport areas, manufacturing plants, large warehouses

How to use

Connect the POR-1322 inline between the PoE source (PSE) and the powered device. Multiple POR-1322 units can be chained—up to four repeaters—to reach distances up to 500 meters. Ensure the upstream PoE switch or other PSE provides sufficient power budget for all chained repeaters and the connected endpoint devices. No configuration or external power supply is necessary; the device functions once connected to a compatible PSE.

Recommendations

Verify PoE standard and power budget of the PoE switch before deploying multiple POR-1322 units to ensure adequate power delivery to the end devices. Use quality Ethernet cabling and secure connections for reliable long-distance operation.
