Resistência de terminação SMA Telegärtner 1 W, 34 dB / 2 GHz, 23 dB / 6 GHz, Telealloy (J01152A0018)

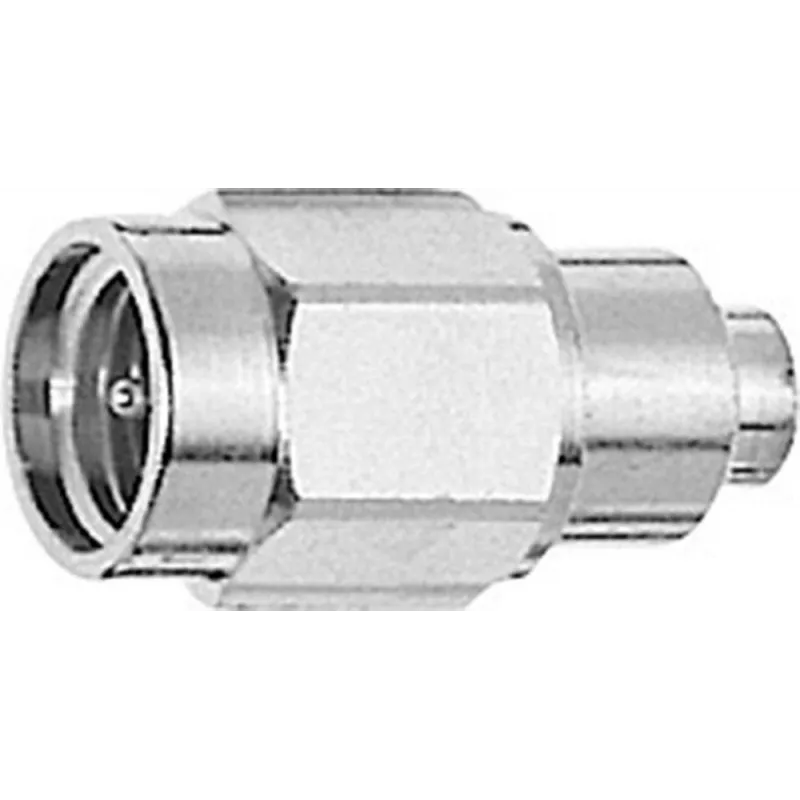

This SMA termination resistor from Telegärtner's Telealloy series provides a precise 50 Ohm load for RF systems up to 6 GHz. With a power rating of 1 W and return loss of 34 dB at 2 GHz and 23 dB at 6 GHz, it ensures stable signal integrity in demanding applications.

Highlights

• SMA plug (male) connector, 50 Ohm impedance
• Broadband performance: DC to 6 GHz
• Low VSWR: ≤1.10 up to 2 GHz, ≤1.20 up to 4 GHz, ≤1.30 up to 6 GHz
• Robust construction: brass body with nickel plating, gold-plated inner conductor, PTFE insulator
• Wide operating temperature range: -55 °C to +155 °C

In daily use

Ideal for terminating unused RF ports, testing, and calibration in laboratory and field environments. The resistive termination absorbs signal power, preventing reflections that could degrade system performance.

Full specifications

• Connector Type: SMA Plug (Male)
• Impedance: 50 Ohm
• Power Rating: 1 W (CW)
• Frequency Range: DC - 6 GHz
• VSWR (DC - 2 GHz): ≤ 1.10
• VSWR (2 - 4 GHz): ≤ 1.20
• VSWR (4 - 6 GHz): ≤ 1.30
• Return Loss @ 2 GHz: 34 dB
• Return Loss @ 6 GHz: 23 dB
• Body Material: Brass, Nickel Plated
• Inner Conductor Material: Brass, Gold Plated
• Insulator Material: PTFE
• Operating Temperature: -55 °C to +155 °C

Final note

A reliable, high-frequency termination for professional RF applications.
