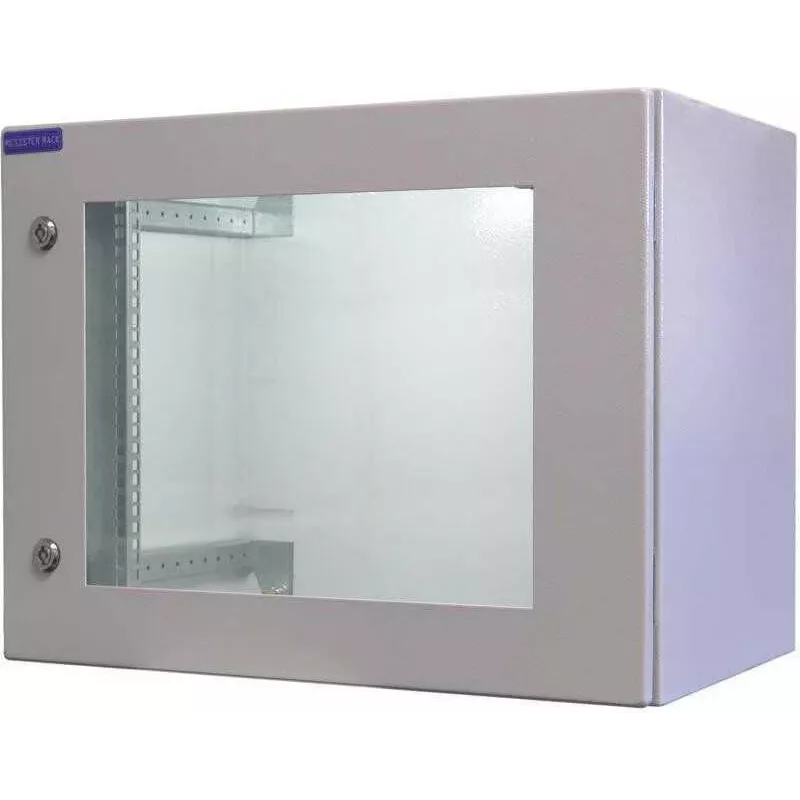

RESISTER Armário de rede 19 polegadas PRO - IP66 exterior e indústria - porta com janela - 9U - 600x400 mm - cinzento-claro (90RR19WV94GG)

IP66-rated protection meets 19-inch rack convenience in a wall-mountable steel cabinet built for outdoor and industrial environments. The RESISTER PRO 9U enclosure keeps network equipment sealed against dust, water jets, and harsh conditions while the transparent viewing door allows quick visual checks without opening the cabinet.

Overview

This 9U network cabinet provides a secure, sealed housing for 19-inch rack-mount equipment in demanding locations. The welded steel frame with powder-coated light grey finish (RAL 7035) offers durability and corrosion resistance. External dimensions are 600 mm width, 400 mm depth, and 500 mm height, with a usable depth of approximately 350 mm. The cabinet is wall-mountable for space-saving installation, and sealed gland plates provide cable entry without compromising the IP66 protection rating.

What stands out

• IP66 protection against dust and powerful water jets, suitable for outdoor and industrial use
• Transparent viewing door with lock and key for visual monitoring and security
• Wall-mountable design saves floor space in tight areas
• Welded steel construction with powder coating for long-term durability
• Load capacity up to 60 kg supports a variety of rack-mount equipment

Technical details

• Rack standard: 19-inch
• Rack units: 9U
• Protection rating: IP66
• Application environment: Outdoor, Industrial
• Door type: Viewing door (transparent)
• External dimensions (W x D x H): 600 x 400 x 500 mm
• Usable depth: 350 mm
• Colour: Light grey (RAL 7035)
• Material: Steel, powder-coated
• Mounting type: Wall-mountable
• Cable entry: Sealed gland plates
• Ventilation: Passive (sealed)
• Security: Lockable door with key
• Construction: Welded frame
• Load capacity: 60 kg

Our verdict

A robust, weatherproof 9U cabinet that delivers reliable protection for network equipment in challenging environments. The IP66 rating and sealed design ensure long-term operation, while the viewing door adds convenience for monitoring.
