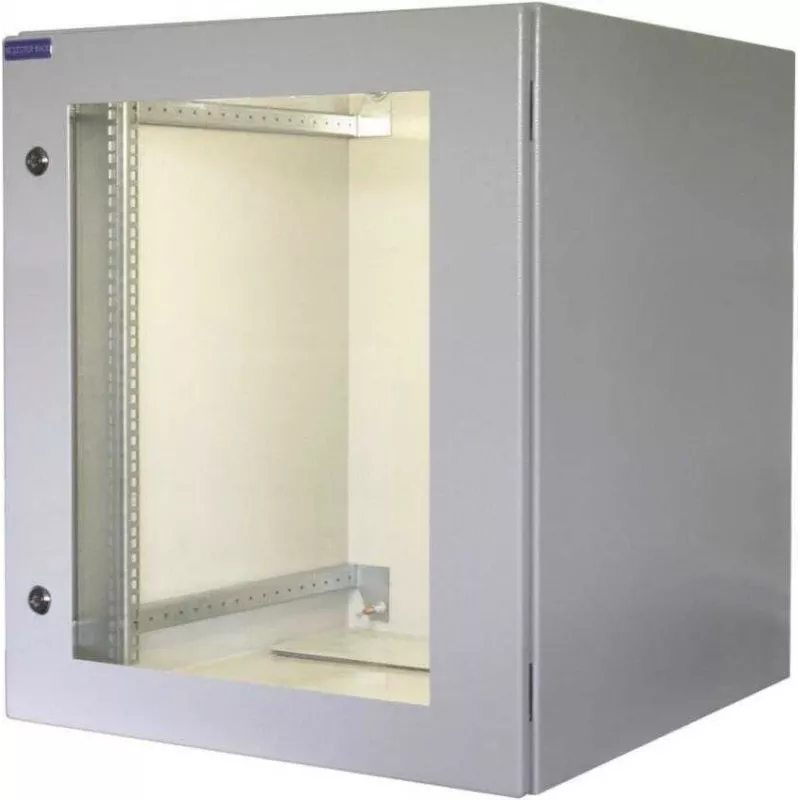

RESISTER Armário de Rede 19 polegadas Pro - IP66 para Exterior e Indústria - Porta com Janela - 16U - 600x600 mm - Cinzento Claro (RAL 7035) (90RR19WV166GG)

The RESISTER 19-Inch Network Cabinet Pro is a robust, IP66-rated enclosure designed for demanding outdoor and industrial environments. With a 16U height and 600x600 mm dimensions, it provides secure housing for 19-inch rack equipment. The cabinet features a viewing door with safety glass or polycarbonate, allowing visual inspection of installed components while maintaining protection against dust and water jets.

Advantages

IP66 protection ensures the cabinet is dust-tight and protected against powerful water jets, making it suitable for outdoor and harsh industrial settings. The viewing door enables quick status checks without opening the cabinet, reducing contamination risk. The welded steel frame and powder-coated finish offer long-lasting durability. Depth-adjustable 19-inch profiles provide flexibility for mounting various equipment depths.

Suitable for

• Outdoor telecommunications and network installations
• Industrial automation and control systems
• Security and surveillance equipment housing
• Any environment requiring high ingress protection

Key specifications

• Rack Standard: 19-inch
• Rack Units: 16U
• Protection Rating: IP66
• Door Type: Single front viewing door (safety glass or polycarbonate)
• External Width: 600 mm
• External Depth: 600 mm
• External Height: approx. 850 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel, powder coated
• Mounting: Floor standing
• Cable Entry: Sealed gland plates
• Security: Lockable door
• Construction: Welded frame

Recommendations

For optimal performance, ensure proper cable gland installation to maintain IP66 integrity. Use appropriate grounding and bonding for outdoor installations. This cabinet is ideal for housing switches, patch panels, and other 19-inch equipment in exposed locations.
