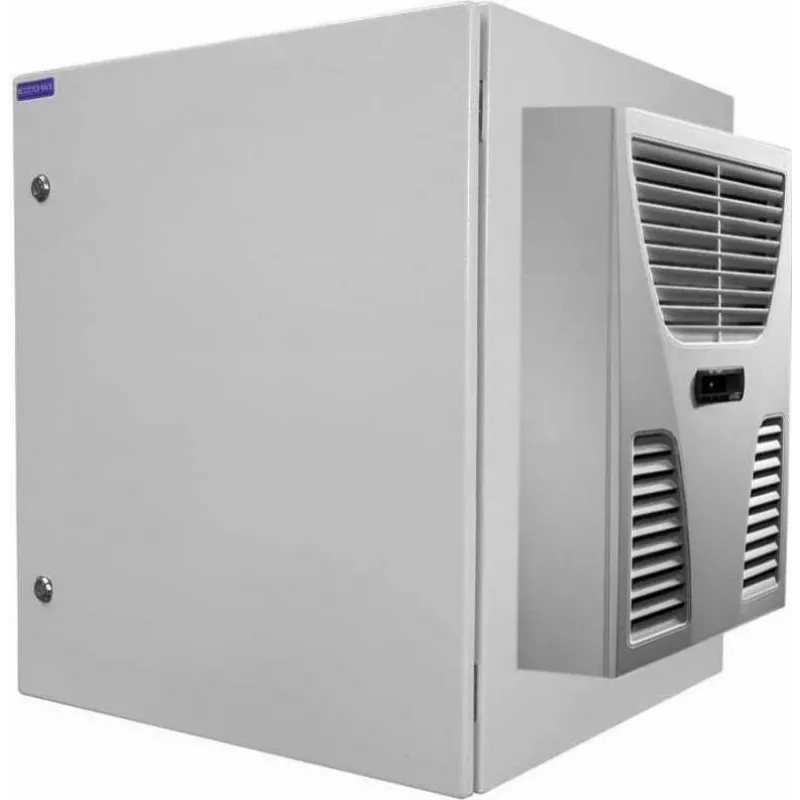

RESISTER Armário de servidor 16U 19" com refrigeração configurável 300-900W, IP54/55, porta maciça, cinzento-claro, 600x600mm 99RR19WV166MGKLIMA

Outdoor and industrial IT installations often fail because standard enclosures cannot protect equipment from dust, moisture, and temperature extremes. The RESISTER Pro 16U server cabinet solves this with an integrated active cooling unit configurable from 300 to 900 W, plus IP54/55 protection for demanding environments.

Who is it for

System integrators and facility managers deploying 19-inch rack-mount equipment in factories, warehouses, or outdoor locations where ambient conditions are harsh. The 16U height and 600x600 mm footprint fit standard networking, server, and automation gear while the solid steel door and lockable design deter unauthorized access.

Main features

• Integrated cooling unit with configurable capacity: 300 W, 450 W, 600 W, 750 W, or 900 W
• IP54 / IP55 ingress protection against dust and water jets
• Solid sheet metal door with lock for physical security
• 16 rack units (16U) for 19-inch equipment
• External dimensions: 600 mm width x 600 mm depth
• Light grey powder-coated steel construction
• Floor-standing design for stable installation

Specifications

• Rack standard: 19-inch
• Rack units: 16U
• External width: 600 mm
• External depth: 600 mm
• Cooling system: Integrated active cooling unit
• Cooling capacity range: 300 - 900 W (configurable)
• Ingress protection: IP54 / IP55
• Environmental suitability: Outdoor, industrial
• Door type: Solid sheet metal door
• Colour: Light grey
• Material: Steel (powder coated)
• Mounting type: Floor standing
• Security features: Lockable door
• Ventilation type: Forced air (via cooling unit)
• Product series: Pro
• Product type: Server cabinet / enclosure

Tips

To achieve the desired IP rating, ensure all cable entry points are sealed with appropriate glands and the door is properly closed. The cooling unit's capacity should be selected based on the total heat load of installed equipment; allow headroom for peak ambient temperatures.
