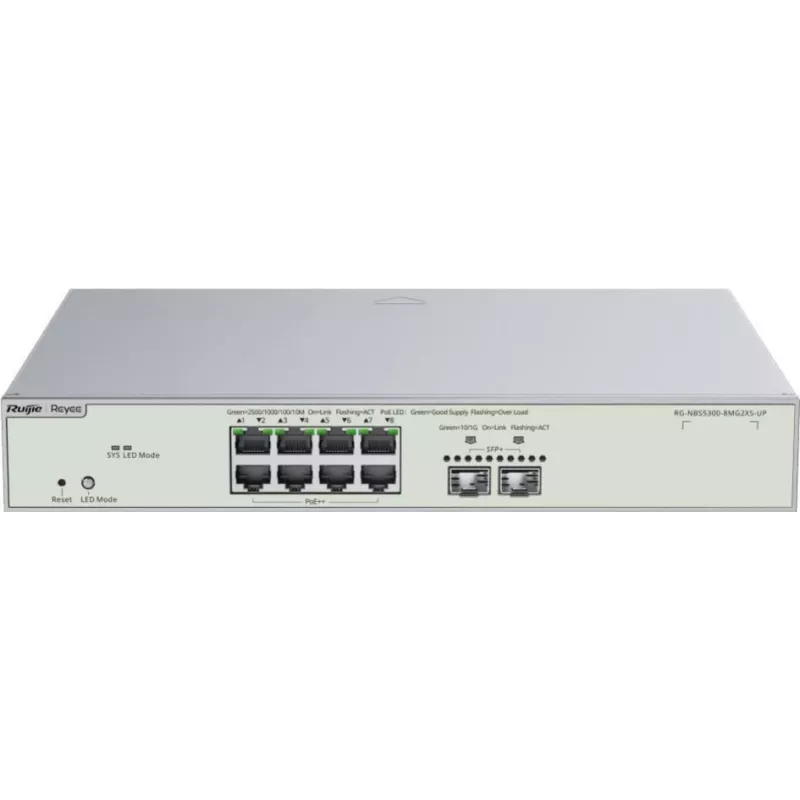

Reyee Switch Gerido Layer 3 Multi-Gigabit 10 Portas, 8x PoE++, 2x SFP+, 370W (RG-NBS5300-8MG2XS-UP)

The Reyee RG-NBS5300-8MG2XS-UP is a high-performance 10-port multi-gigabit Layer 3 managed switch designed for demanding network environments. With 8x PoE++ ports delivering up to 90W per port and a total PoE budget of 370W, it provides robust power and data connectivity for devices such as high-power wireless access points, PTZ cameras, and IoT devices. The switch features 2x 10 Gigabit SFP+ uplink ports for high-speed backbone connections, ensuring seamless data flow.

Advantages

This switch offers exceptional value with its combination of multi-gigabit speeds, advanced Layer 3 routing capabilities (including static routing, RIP, and OSPFv2/v3), and comprehensive management options via web GUI, CLI, SNMP, or Ruijie Cloud. The smart fan ensures quiet operation while maintaining optimal thermal performance. Its 1U rackmount design fits easily into standard server racks.

Suitable for

• Enterprise networks requiring high-power PoE++ for advanced devices
• Surveillance systems with high-bandwidth cameras
• Wireless LAN deployments with multi-gigabit access points
• Small to medium business networks needing Layer 3 routing

Key specifications

• 10 ports: 8x 100/1000/2500/5000Mbps RJ45 (PoE++) + 2x 10G SFP+
• PoE standard: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Max PoE power per port: 90W, total budget: 370W
• Switching capacity: 80 Gbps
• Packet forwarding rate: 59.52 Mpps
• MAC address table: 16K
• Jumbo frame support: 12K bytes
• VLANs: 4094
• Layer 3 features: static routing, RIP, OSPFv2/v3
• Management: Web GUI, CLI, SNMP, Ruijie Cloud
• QoS: 8 queues with SP/WRR/SP+WRR
• Security: ACL, port security, DHCP snooping, ARP inspection, IP source guard
• Fan: smart fan (variable speed)
• Power supply: internal AC 100-240V, 50/60Hz
• Mounting: rackmount (1U)
• Operating temperature: 0°C to 50°C

Recommendations

For optimal performance, use this switch with high-quality Cat6a or Cat7 cabling for multi-gigabit connections. Pair with Reyee access points for a seamless managed network experience.
