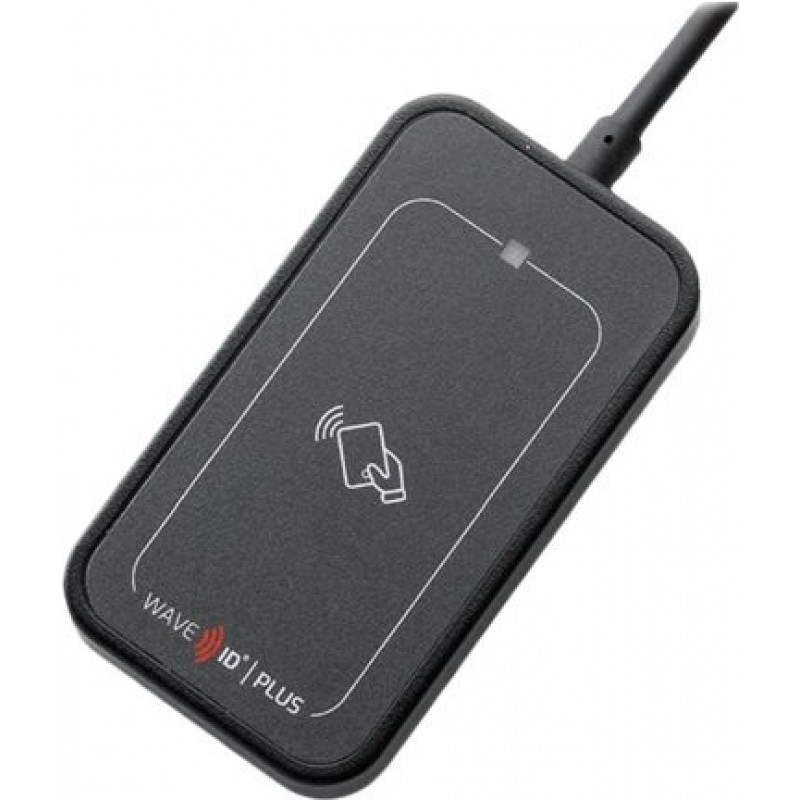

RF IDeas WAVE ID Plus SDK Preto USB

Managing multiple card technologies across an organization can be a headache. The RF IDeas WAVE ID Plus SDK Black USB reader eliminates that complexity by reading virtually any proximity or contactless smart card—from legacy 125 kHz HID Prox to modern 13.56 MHz MIFARE, iCLASS, and even NFC-enabled smartphones. With its included software development kit, you can integrate secure card-based authentication into your own applications, streamlining access control, time and attendance, and secure printing workflows.

Who is it for

This reader is ideal for developers, IT administrators, and system integrators who need a flexible, future-proof credential reader for desktop or kiosk environments. Whether you're building a custom login solution, upgrading an existing access system, or simply need a reliable way to read employee badges, the WAVE ID Plus SDK delivers.

Main features

• Reads both low frequency (125 kHz) and high frequency (13.56 MHz) credentials
• Supports HID Prox, Indala, AWID, EM410x, MIFARE Classic/ DESFire/ Plus/ Ultralight, iCLASS, FeliCa, ISO 14443 A/B, ISO 15693, PIV, CAC, TWIC, and NFC
• USB 2.0 interface with keyboard emulation, serial ASCII, or Wiegand output (configurable)
• Includes Software Development Kit (SDK) for custom integration
• Dual-color LED (red/green) and audible beeper for user feedback
• Plug-and-play on Windows, macOS, Linux, and Android—no external power needed
• Firmware upgradable to support future card technologies
• Compact desktop form factor with ABS plastic housing

Specifications

• Brand: RF IDeas
• Model: RDR-80532BKU
• MPN: RDR-80532BKU
• Product colour: Black
• Interface: USB 2.0
• Power source: USB bus powered
• Read range: up to 2 inches (5 cm), depending on card type
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Humidity: 5% to 95% non-condensing
• Certifications: FCC, CE, RoHS, IC
• Housing material: ABS plastic
• Supported operating systems: Windows, macOS, Linux, Android
• NFC support: Yes
• Plug and Play: Yes
• LED indicators: Yes
• Warranty: 1 year (typical for RF IDeas readers)

Tips

To get the most out of your WAVE ID Plus SDK, download the latest SDK and configuration utility from the RF IDeas website. Use the configuration tool to set the output format (keyboard, serial, or Wiegand) and adjust the beeper and LED behavior. For card compatibility, ensure your cards are within the supported frequency and protocol list. Keep the firmware updated to add support for new card types.
