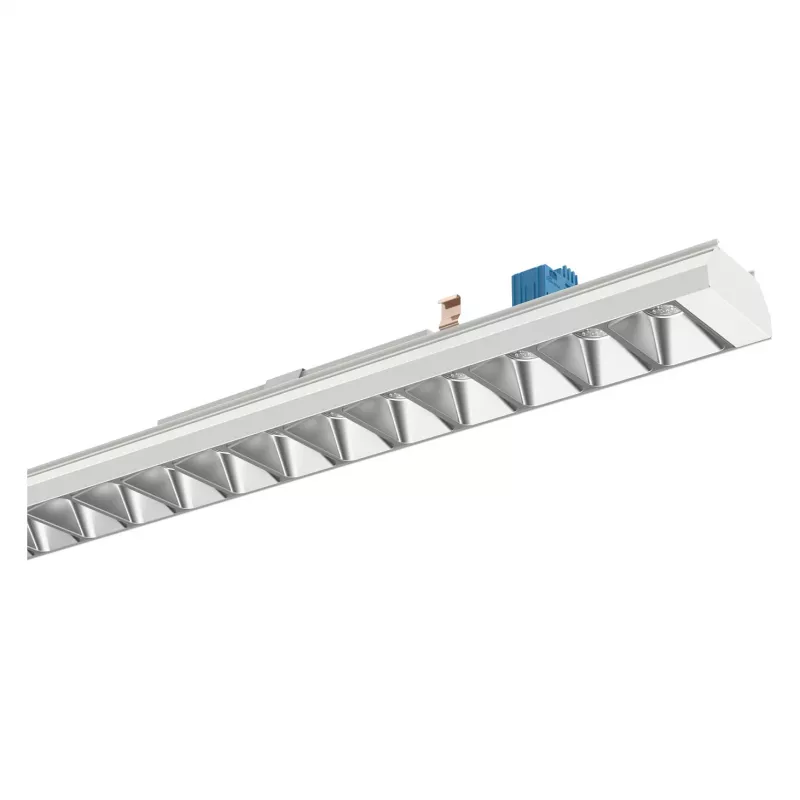

RIDI VL2P-ML150-5FLWS840M9P0800 LED Gear Tray para sistema de iluminação contínua VL2, 5 módulos, 8200lm, 50W, 4000K

Facility managers upgrading open-plan offices or retail floors to a modern trunking system can rely on the RIDI VL2 gear tray for efficient, uniform illumination. This 5-module LED engine delivers 8200 lumens at 50 W, achieving 164 lm/W and neutral white light (4000 K) with a CRI above 80. The DALI interface enables precise dimming for individual or group control, while the tool-free snap-in mounting and 5-pole through-wiring simplify installation and maintenance. The powder-coated steel housing ensures durability in commercial environments.

Key specifications

• System compatibility: RIDI VL2 trunking system
• Light source: LED, 5 modules
• Luminous flux: 8200 lm
• System power: 50 W
• Luminous efficacy: 164 lm/W
• Colour temperature: 4000 K (Neutral White)
• Colour rendering index: Ra > 80
• Beam angle: Wide distribution
• Dimmability: DALI
• Rated lifetime: L80B50 @ 50,000 h
• Operating voltage: 220-240 V AC / 50-60 Hz
• Protection class: IP20
• Housing material: Steel sheet, powder-coated
• Mounting type: Tool-free snap-in
• Electrical connection: 5-pole through-wiring
• Ambient temperature range: +10°C to +35°C

Why choose it

The VL2 gear tray is engineered for easy installation and maintenance. The tool-free snap-in mounting allows for quick and secure insertion into the trunking, while the 5-pole through-wiring simplifies electrical connections across multiple trays. The robust powder-coated steel housing provides durability and long-term performance, and the DALI interface enables precise individual or group control of lighting scenes.

Ideal use cases

• Open-plan offices requiring efficient, dimmable lighting
• Retail floors needing uniform illumination with control flexibility
• Commercial spaces upgrading to a modular trunking system
• Projects where quick installation and low maintenance are priorities

Good to know

This gear tray is designed specifically for the RIDI VL2 trunking system and is not compatible with other systems. The wide beam distribution ensures even light coverage, reducing shadows and glare. With an L80B50 lifetime of 50,000 hours, it offers long-term reliability and reduced maintenance costs.
