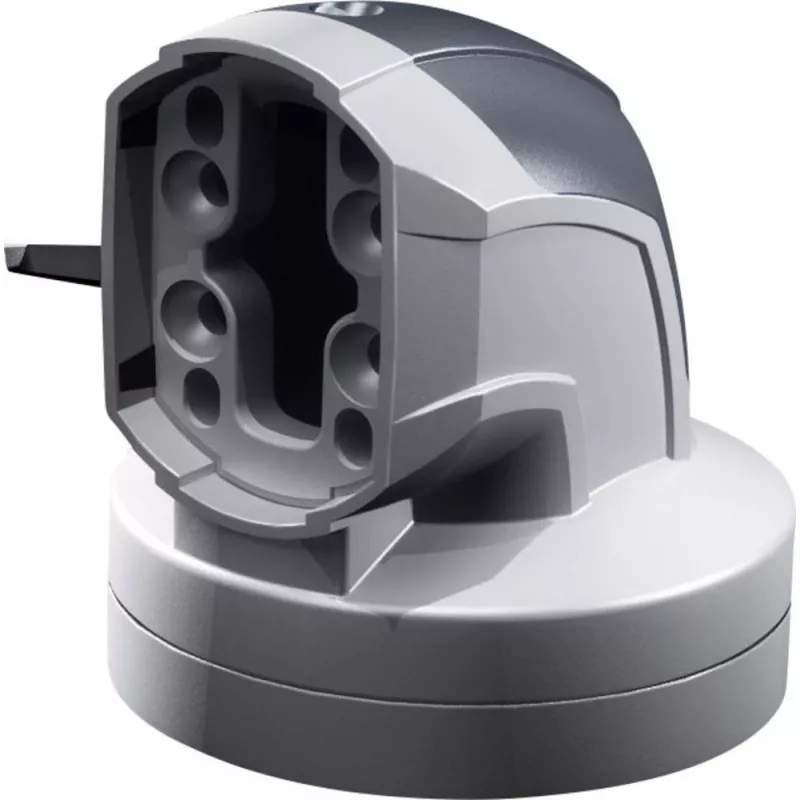

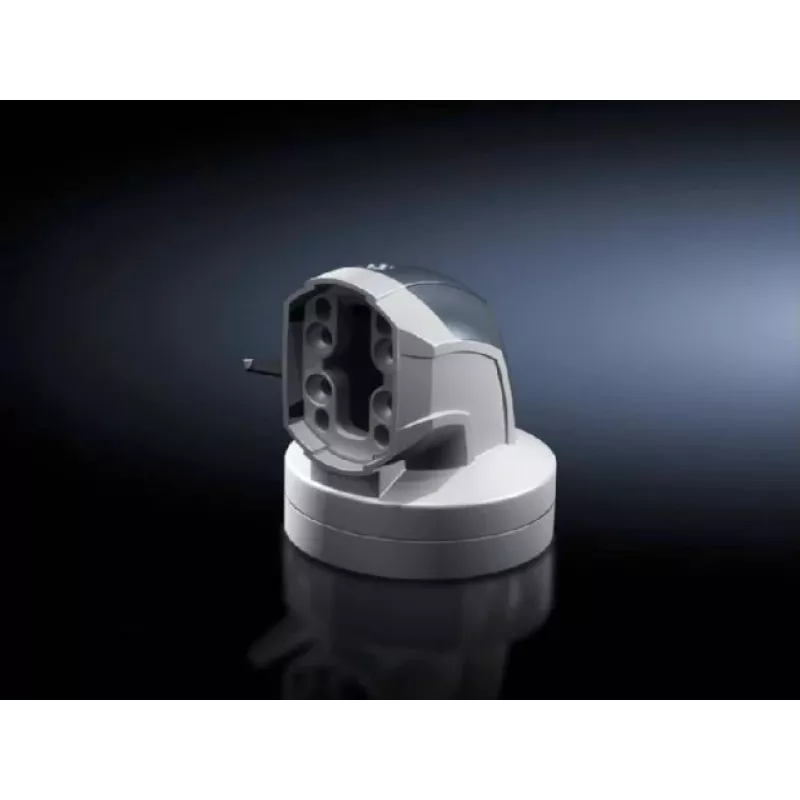

Rittal 90° Acoplamento angular System 60 para ligação de braço de suporte Ø 130 mm - CP 6206.380 alumínio fundido/zinco, plástico

With a static load capacity of 60 kg, this 90° angle coupling provides a robust connection for Rittal System 60 support arms with a 130 mm diameter. It enables precise right-angle routing of support arm sections in industrial enclosures and HMI applications.

Overview

The Rittal 6206.380 angle coupling is engineered to join two support arm sections at a fixed 90° angle, expanding configuration possibilities for control panels and operator interfaces. Its die-cast aluminum housing ensures strength and durability, while die-cast zinc clamping parts deliver secure, vibration-resistant fastening. The plastic cover and gasket contribute to a clean appearance and reliable sealing, achieving IP 54 protection against dust and water spray.

What stands out

• High static load capacity of 60 kg for demanding installations
• Precision 90° angle for exact positioning of support arms
• Internal clamping design allows concealed cable routing
• Durable materials: die-cast aluminum housing, zinc clamps, plastic cover
• IP 54 protection suitable for industrial environments

Technical details

• Product type: Angle coupling
• Angle: 90°
• System compatibility: Rittal Support Arm System 60
• Connection diameter: 130 mm
• Housing material: Die-cast aluminum
• Clamping parts material: Die-cast zinc
• Cover/gasket material: Plastic
• Housing colour: RAL 7035 (light grey)
• Plastic components colour: RAL 9005 (black)
• Static load capacity: 60 kg
• Protection category: IP 54
• Mounting type: Internal clamping
• Rotation capability: Fixed 90° angle (non-rotatable)
• Number of connections: 2
• Design: Closed, internal cable routing possible
• Certifications: CE

Our verdict

A reliable and robust solution for right-angle support arm connections in industrial control systems. Its high load rating and IP54 protection make it a solid choice for demanding environments.
