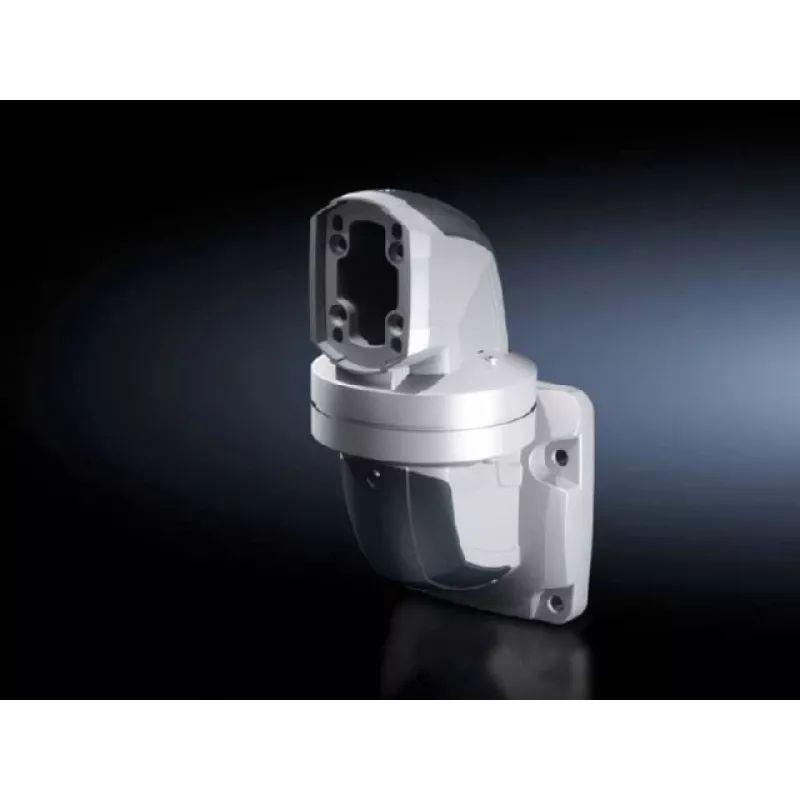

Rittal CP 120 articulação de parede, saída horizontal, alumínio fundido, cinzento claro RAL 7035 6212.740

In industrial control panel setups, achieving a stable yet adjustable connection between a support arm and a wall can be a challenge. The Rittal CP 120 Wall Joint solves this by providing a robust, articulated link that allows horizontal cable routing and precise positioning, ensuring your control enclosures stay secure and accessible.

Who is it for

This wall joint is ideal for system integrators, panel builders, and maintenance engineers who deploy Rittal CP 120 support arm systems in factories, workshops, or automation environments. It suits those needing a durable, IP54-rated pivot point for control panels, HMI enclosures, or operator stations mounted on walls.

Main features

• Die-cast aluminum housing with plastic cover for lightweight strength and corrosion resistance.
• Horizontal outlet orientation enables clean, side-directed cable management.
• 300° rotation range allows flexible positioning of the attached support arm.
• IP54 protection guards against dust and water splashes in industrial settings.
• Integrated cable routing capability keeps wiring organized and protected.
• Compatible with the entire Rittal CP 120 support arm system for seamless integration.
• UL and cUL approvals ensure safety and compliance in North American markets.

Specifications

• Product Type: Wall Joint
• System Compatibility: Rittal CP 120 Support Arm System
• Outlet Orientation: Horizontal
• Housing Material: Die-cast aluminum
• Cover/Gasket Material: Plastic
• Color: Light Grey (RAL 7035)
• Rotation Range: 300°
• Protection Category: IP54
• Mounting Type: Wall mounting
• Application: Industrial Control Panel Support
• Design Feature: Articulated Joint
• Series: Rittal Command Panel (CP)
• Approvals: UL, cUL
• Cable Management: Integrated cable routing capability
• Installation: Easy assembly with system components

Tips

When installing, ensure the wall surface is flat and capable of bearing the combined weight of the joint, support arm, and panel. Use appropriate fasteners for your wall type, and verify the rotation range before final tightening to achieve the desired panel angle. For outdoor or washdown areas, consider additional sealing or enclosures despite the IP54 rating.
