Rittal DK 7063.750 componente de montagem, caixa de aço, cinzento, profundidade 30 mm, carga máx. 20 kg, pack de 2

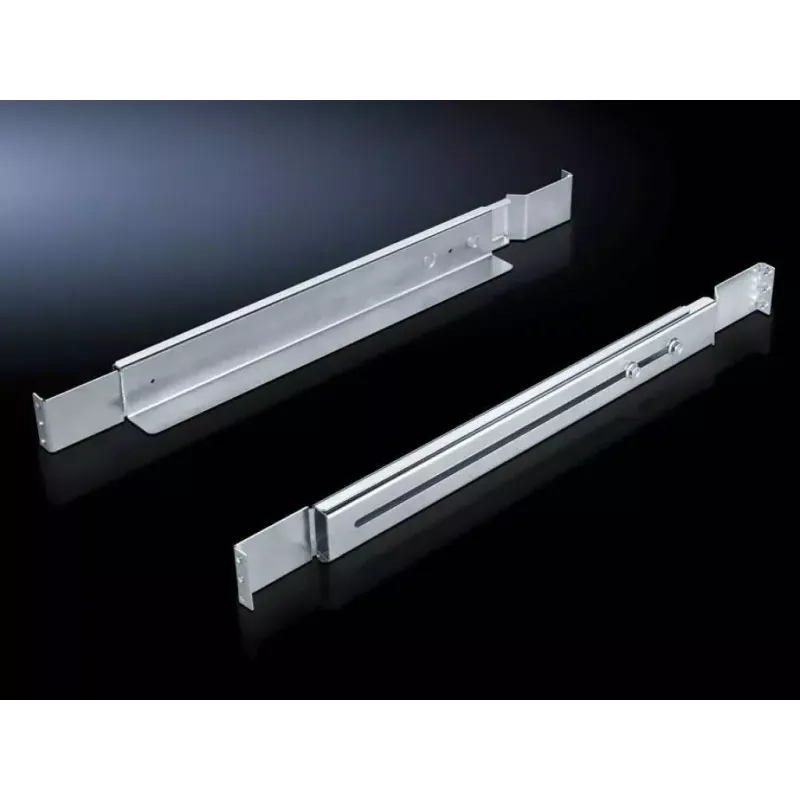

Rittal DK 7063.750 is a steel mounting component supplied as a pack of two, designed for direct attachment to the 482.6 mm (19") system punchings on mounting angles. The components have a grey finish and a depth of 30 mm, providing a compact mounting solution for electrical enclosures, control cabinets and industrial housings. Each part supports a maximum load of 20 kg and is intended to be used by sliding the rails out to the required length and securing them between the front and rear mounting level on the 482.6 mm (19") pitch pattern.

Advantages

The steel housing ensures mechanical strength and resistance to deformation under load, and the grey surface provides a neutral appearance that integrates well into standard control cabinet interiors. Supplied as a pack of two, the mounting components allow quick pairing for symmetrical installations. Their 30 mm depth offers a space-efficient profile that is suitable for shallow-fit applications while still supporting equipment up to 20 kg.

Suitable for

Key specifications

How to use

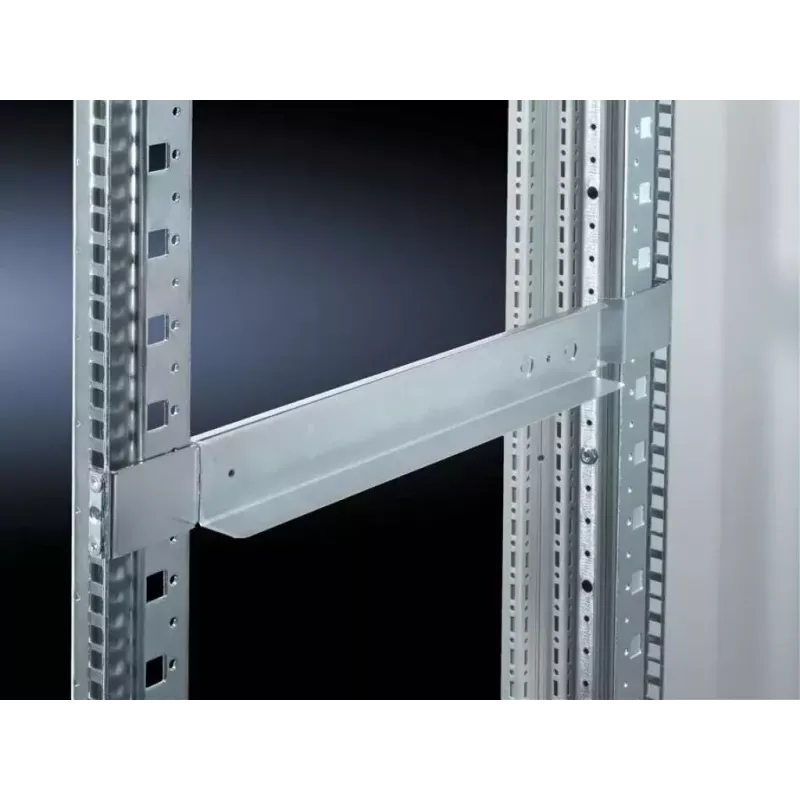

Pull the slide rails to the required length, position the mounting components between the front and rear mounting level on the 482.6 mm (19") pitch pattern, and secure them according to the cabinet or enclosure mounting procedure. Ensure the components are aligned and tightened to prevent movement. Verify that the intended load does not exceed the 20 kg maximum per the mounted arrangement and that surrounding clearances accommodate the 30 mm depth.

Recommendations

For safe installation, confirm compatibility with the cabinet's 482.6 mm (19") mounting pattern and use appropriate fastening hardware. Distribute loads evenly across paired components and avoid exceeding the specified maximum load. Regularly inspect mounted items for loosening or deformation, especially in vibration-prone environments.
