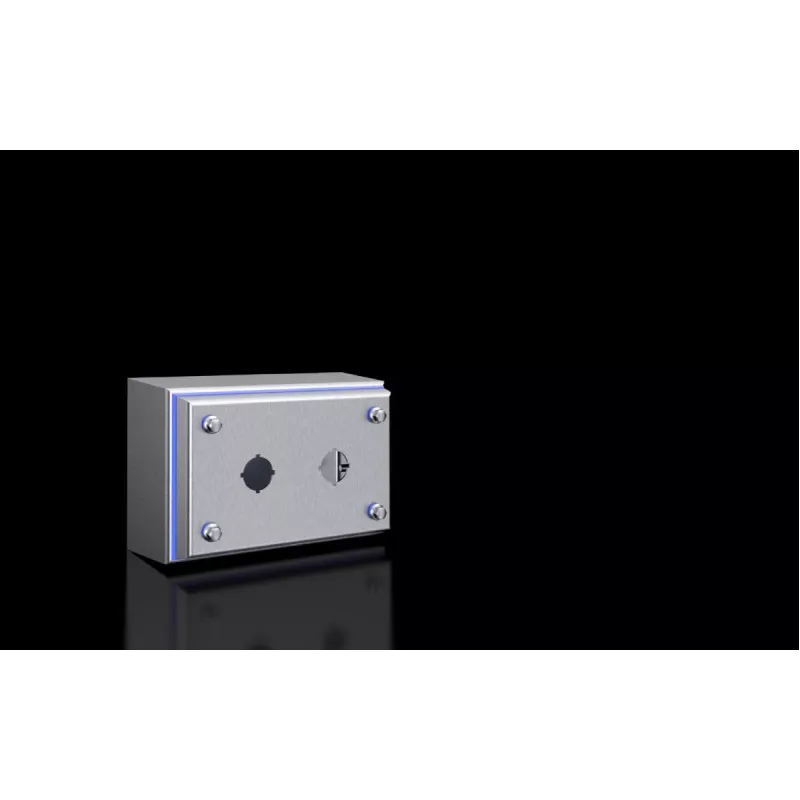

Rittal HD 1682.600 Caixa de terminais em aço inoxidável 160x100x90 mm IP66/IP69 NEMA 4X

IP66 and IP69 protection in a compact 160 x 100 x 90 mm stainless steel enclosure — built for demanding hygienic and washdown environments.

Overview

The Rittal HD 1682.600 is a wall-mounted terminal box crafted from stainless steel 1.4301 (AISI 304) with a brushed, grain 240 surface finish. Its screw-fastened cover includes a blue silicone gasket, and the enclosure is rated IP66, IP69, and NEMA 4X. Suitable for operating temperatures from -40 °C to +80 °C, it meets UL, cUL, TÜV, Germanischer Lloyd, RMRS, EAC, and VDE approvals.

What stands out

• High protection: IP66 and IP69 for dust-tight and high-pressure washdown resistance
• Corrosion-resistant stainless steel 1.4301 (AISI 304) with hygienic design
• Captive external cover screws for secure closure
• Blue silicone gasket ensures reliable sealing
• Compact size: 160 mm height, 100 mm width, 90 mm depth

Technical details

• Material: Stainless steel 1.4301 (AISI 304), 1.25 mm thickness
• Surface finish: Brushed, grain 240
• Protection class: IP66, IP69
• NEMA rating: NEMA 4X
• Mounting type: Wall-mounted / surface-mounted
• Cover type: Screw-fastened, captive external screws
• Gasket material: Silicone (blue)
• Operating temperature range: -40 °C to +80 °C
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, RMRS, EAC, VDE

Our verdict

A robust stainless steel terminal box for applications requiring high ingress protection and corrosion resistance, such as food processing or outdoor installations.
