Rittal painel de base VX lateral H100 mm para T300 mm 8660.030 Rittal

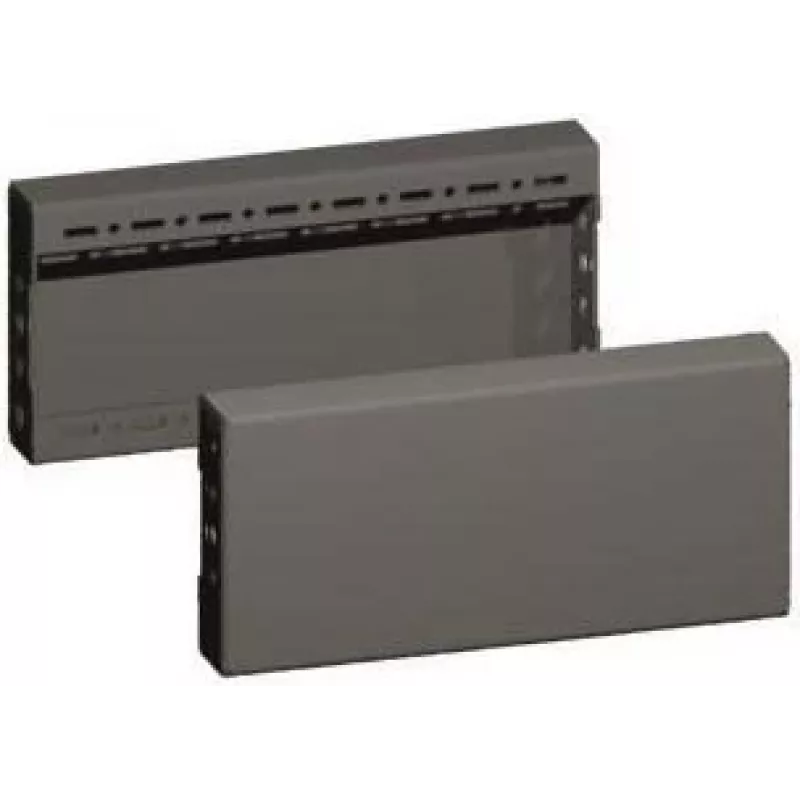

The Rittal Sockelblende VX side H100mm for T300mm is a metal side panel designed to fit VX series enclosures with a 300 mm trunking depth. It provides a neat, continuous appearance at the base of the cabinet and closes the gap between the enclosure and its plinth. The panel is intended to improve cable routing and protect wiring runs at the cabinet base while maintaining the visual uniformity of a technical installation.

Advantages

The panel offers a precise fit to VX enclosures with compatible depth, made from durable material that resists deformation in normal indoor industrial and server-room environments. It simplifies finishing work at the cabinet base by concealing cable entries and creating a regular external surface that is easy to clean. The product is compatible with standard mounting points on Rittal VX enclosures and allows rapid installation and removal for maintenance access.

Suitable for

Key specifications

How to use

Position the side panel against the enclosure plinth area matching the 300 mm trunking depth and align the panel's mounting holes with the enclosure's frame. Secure the panel using the corresponding fasteners at the recommended torque values to ensure stable attachment. For maintenance, remove the fasteners and slide the panel away to access cables and the lower section of the cabinet. Follow workplace safety procedures when handling metal panels to avoid sharp edges.

Recommendations

Install the panel in dry indoor environments and avoid exposure to aggressive chemicals or outdoor weathering. Inspect mounting points periodically and tighten fasteners if vibration or mechanical stress is present. When routing cables, use appropriate grommets or seals at entry points to preserve cable insulation and reduce dust ingress.
