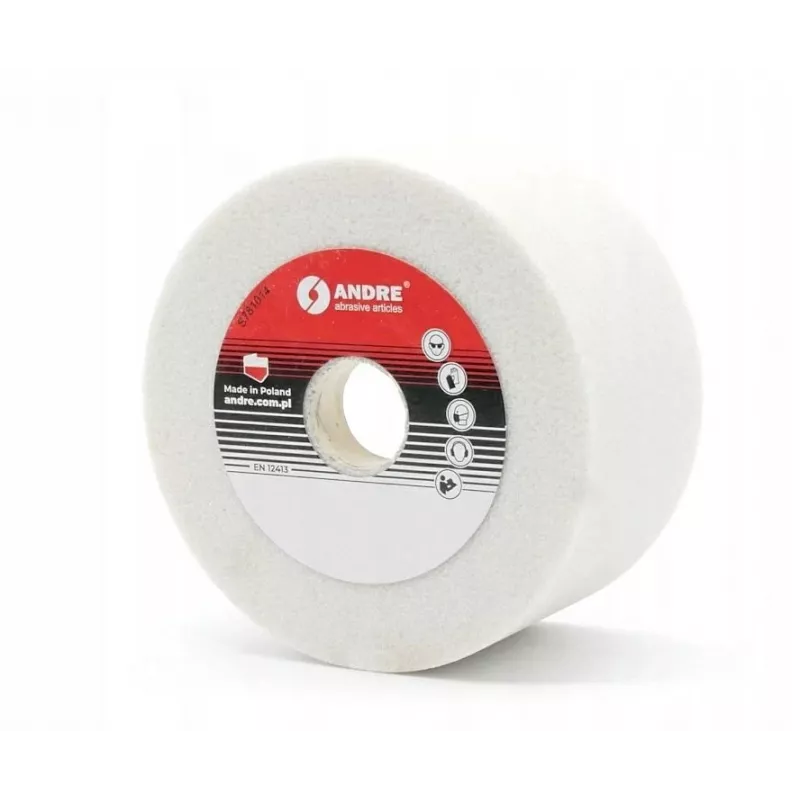

Roda de copo ANDRE CUP WHEEL 150mm x 80mm x 32mm 99A46K7VE01-35 WHITE TYPE 6

The ANDRE Cup Wheel is a high-performance grinding tool designed for precision surface grinding and tool sharpening. With a diameter of 150 mm, thickness of 80 mm, and a 32 mm bore, this Type 6 straight cup wheel is crafted from white fused aluminum oxide (99A) with a medium grit size of 46. The vitrified bond (V) and medium-dense structure (7) ensure efficient material removal and long tool life. Ideal for use on steel, cast iron, hardened steel, and non-ferrous metals, this wheel operates at a maximum speed of 4500 RPM (approx. 35 m/s) and complies with EN 12413 safety standards.

Advantages

White fused aluminum oxide provides sharp cutting edges and cool grinding action, reducing heat buildup and workpiece damage. The Type 6 shape allows for easy mounting on arbor or spindle, making it suitable for various grinding machines. The medium hardness (K) and structure (7) offer a balance between stock removal and surface finish.

Suitable for

• Surface grinding of steel and cast iron
• Tool sharpening (e.g., lathe tools, milling cutters)
• General metal removal on hardened steel and non-ferrous metals

Key specifications

• Product Type: Cup Grinding Wheel
• Shape: Type 6 (Straight Cup Wheel)
• Outer Diameter: 150 mm
• Height/Thickness: 80 mm
• Bore Diameter: 32 mm
• Abrasive Material: White Fused Aluminum Oxide (99A)
• Grit Size: 46 (Medium)
• Hardness Grade: K (Medium)
• Bond Type: Vitrified (V)
• Structure: 7 (Medium-Dense)
• Color: White
• Maximum Operating Speed: 4500 RPM (approx. 35 m/s)
• Safety Standard: EN 12413
• Mounting Type: Arbor/Spindle Mount
• Bond Series/Code: VE01-35

Recommendations

For optimal performance, ensure the wheel is properly mounted and balanced. Always adhere to the maximum operating speed and use appropriate safety equipment. Suitable for use on bench grinders, surface grinders, and tool and cutter grinders.
