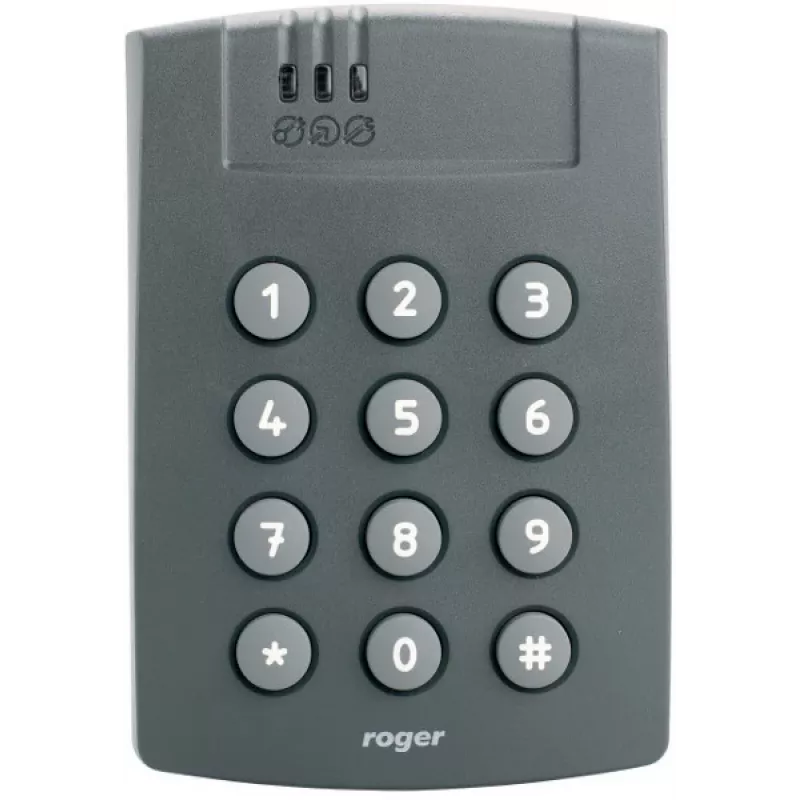

ROGER MCT64E-IO leitor de proximidade

The ROGER MCT64E-IO is a proximity reader designed for use in the RACS 5 system with MC16 controllers. It supports identification via card and code, with a read range of up to 7 cm.

Key features

• Identification by card and code
• Card reading distance up to 7 cm
• Three LED indicators
• Operation in 125 kHz standard
• Indoor and outdoor operation
• Built-in relay output
• EM 125 kHz Unique card reading, compatible with EM4100/4102
• RS485 communication interface
• Three inputs
• Relay output 1.5A/30V
• Two transistor outputs 1A/15V
• Definition of quiescent polarity of output line
• Signalling speaker with adjustable sound level
• Keypad with adjustable backlight level
• Enclosure opening and detachment detection
• Low-level configuration via RS485 (RogerVDM)
• Firmware update via RS485 (RogerISP)
• Outdoor operation

Specifications

• Brand: Roger
• MPN: MCT64E-IO
• Power supply: 10-15 VDC
• Current consumption (average): ~50 mA
• Inputs: Three (IN1..IN3) two-state NO/NC lines internally polarised to supply plus via 15kΩ resistor, switching threshold approx. 3.5V
• Relay output (REL1) with single NO/NC contacts, load capacity 30V/1.5A DC/AC
• Two transistor outputs (IO1, IO2) open collector type, max load 15VDC/1A
• Reading range: up to 7 cm
• Tamper: isolated NO/NC contact, 50mA/24V, contacts closed when enclosure is closed
• Card type: EM 125 kHz Unique, compatible with EM4100/4102
• Distance: up to 1200 m between controller and reader counting along cable
• Protection rating: IP65
• Class (according to EN 50133-1): Class IV, general outdoor conditions
• Operating temperature: -25°C to +60°C
• Operating humidity: 10 to 95% (non-condensing)
• Dimensions (W x H x D): 115 x 80 x 35 mm
