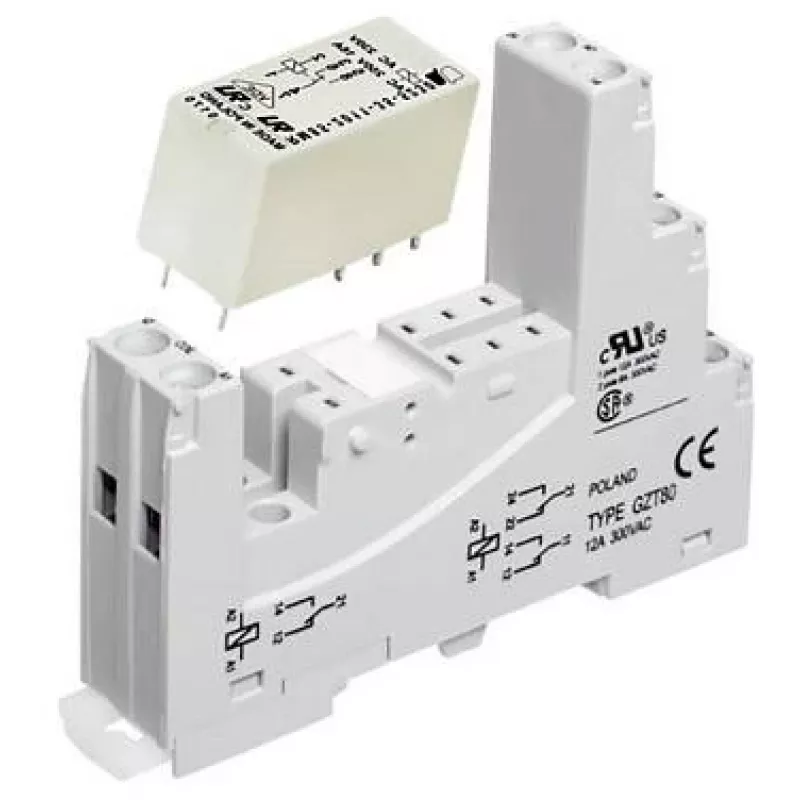

ROPAM RM85-230V-1P módulo de relé 1 canal SPDT 16A 230V AC calha DIN

The ROPAM RM85-230V-1P is a high-quality monostable relay module designed for reliable switching in industrial and building automation applications. With a compact 1-module DIN rail housing, this relay offers a single SPDT contact rated at 16A / 250V AC, controlled by a 230V AC input. Ideal for controlling loads such as lighting, motors, and heating elements, it features a clear LED status indicator and screw terminals for easy wiring.

Advantages

Robust construction with PC/ABS plastic housing ensures durability and long service life. Low power consumption (<1W) and high electrical life (100,000 operations) make it a cost-effective choice for continuous use. The LED indicator provides immediate visual feedback on relay status, simplifying troubleshooting.

Suitable for

• Industrial control panels
• Building automation (lighting, HVAC)
• Machine control systems
• Power distribution units

Key specifications

• Relay Type: Monostable
• Number of Channels: 1
• Contact Configuration: 1 x SPDT (NO/NC)
• Max Contact Current: 16 A
• Max Contact Voltage: 250 V AC
• Control Voltage: 230 V AC
• Mounting: DIN Rail (1-module width)
• Operating Temperature: -10°C to +55°C
• Power Consumption: <1 W
• Indicator: LED
• Terminal Type: Screw terminals
• Housing Material: Plastic (PC/ABS)
• Protection Class: IP20
• Electrical Life: 100,000 operations
• Mechanical Life: 10,000,000 operations
• Compliance: CE

Recommendations

For optimal performance, use with appropriate circuit protection and ensure the load does not exceed the rated contact ratings. Suitable for use in dry indoor environments only.
