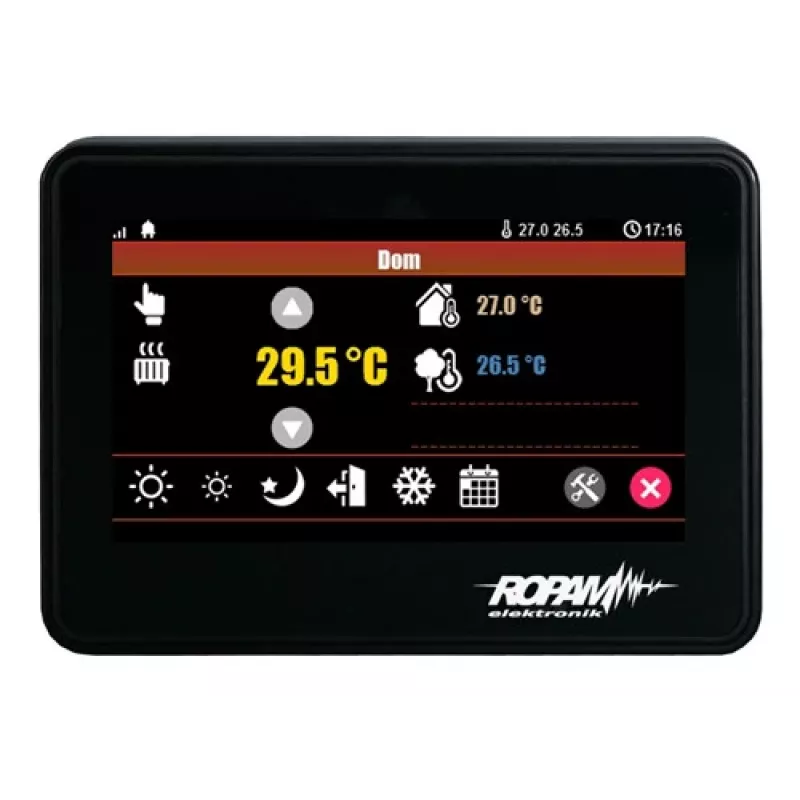

ROPAM Teclado Tátil TPR-4B-P

The ROPAM TPR-4B-P is a modern touch-sensitive keypad designed for intuitive arming and disarming of ROPAM NEO, OPTIMA, and MONO series control panels. Featuring a graphical LCD display with backlight, built-in buzzer, and tamper protection, this wall-mounted keypad offers reliable security system management.

Advantages

Touch-sensitive interface for easy operation; backlit display and keypad for visibility in low light; programmable inputs and output for flexible integration; tamper protection against enclosure opening; acoustic signaling for system events.

Suitable for

• Residential and commercial security systems using ROPAM control panels
• Users requiring a modern, touch-based keypad with clear status display
• Installations needing Grade 2 security compliance

Key specifications

• Display: Graphical LCD, 128x64 pixels
• Keypad: Touch-sensitive with backlight
• Communication: ROPAM Bus (RS-485)
• Power: 9-14V DC, max 100 mA
• Operating temperature: -10°C to +55°C
• Enclosure: ABS plastic, white
• Built-in inputs: 2 (programmable)
• Built-in output: 1 (OC type, programmable)
• Tamper protection: Yes (enclosure opening)
• Acoustic signaling: Built-in buzzer
• Mounting: Surface wall-mounted
• Security grade: Grade 2 (EN 50131-1)
• Firmware update: Via ROPAM Bus
• Language support: Multi-language

Recommendations

For optimal performance, ensure the keypad is connected to a compatible ROPAM control panel via the ROPAM Bus. The built-in buzzer provides audible feedback for system events. The tamper switch enhances security by detecting unauthorized enclosure opening.
