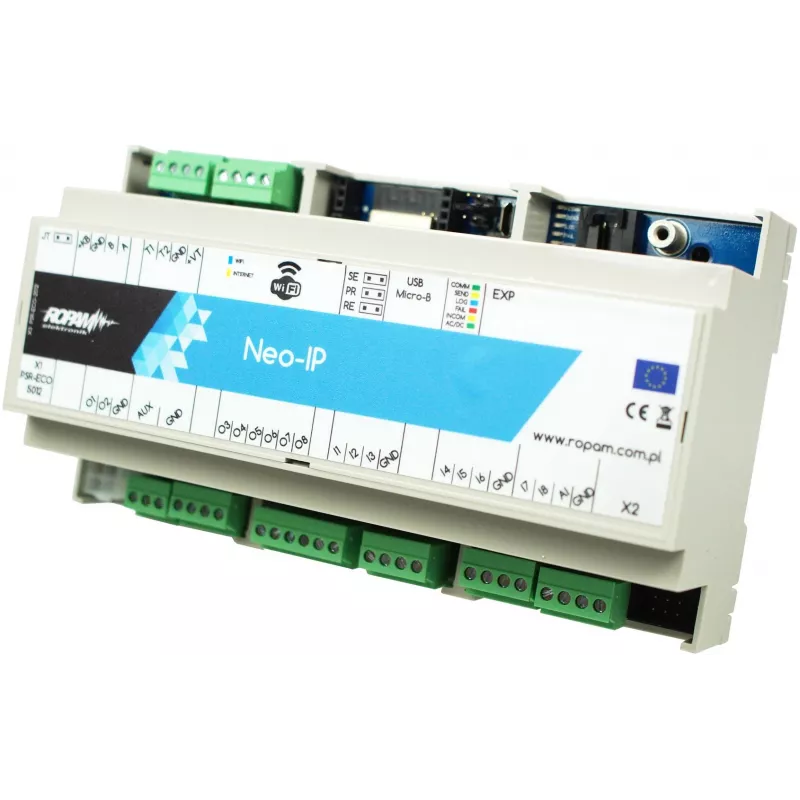

ROSE&TULIPANI ROPAM CONTROL PANEL NEO-IP-D9M

The ROSE&TULIPANI ROPAM CONTROL PANEL NEO-IP-D9M is a professional-grade alarm control panel designed for modern security systems. With its integrated touch keypad and graphical OLED display, it offers intuitive control and monitoring. Supporting up to 64 zones and 64 outputs, this panel is ideal for medium to large installations. The NEO-IP-D9M features Ethernet connectivity for remote access via mobile app or web browser, and supports SIA-IP, SMS, and email communication protocols. It also includes home automation capabilities, digital temperature sensor support, and 32 independent timers.

Advantages

This control panel provides a comprehensive security solution with expandable wired/wireless zones, programmable outputs, and a large event log. The integrated touch keypad simplifies arming and disarming, while the mobile app allows remote control and notifications. The panel's RopamNET expansion bus enables easy integration with additional modules.

Suitable for

• Residential security systems
• Small to medium commercial premises
• Home automation integration
• Remote monitoring applications

Key specifications

• System Type: Alarm Control Panel
• Primary Connectivity: Ethernet (IP)
• Expandable Zones: Up to 64 (wired/wireless)
• Expandable Outputs: Up to 64 (programmable)
• Integrated Wired Inputs: 8 (NO/NC/EOL/2EOL)
• Integrated Programmable Outputs: 4 (OC type)
• Maximum Users: 64
• Partitions/Areas: 4 independent
• Display Type: Graphical OLED (128x64 pixels)
• Keypad: Integrated Touch Keypad
• Event Log Capacity: 10,000 events
• Power Supply: 12V DC
• Operating Temperature: -10°C to +55°C
• Remote Access: Mobile App (RopamDroid, RopamBridge), Web Browser
• Communication Protocols: SIA-IP, SMS, Email
• Expansion Bus: RopamNET
• Home Automation Features: Yes
• Digital Temperature Sensor Support: Up to 8
• Timers: 32 independent
• Firmware Update Method: USB, Ethernet

Recommendations

For optimal performance, use with RopamNET compatible peripherals and ensure stable Ethernet connection. The panel supports firmware updates via USB or Ethernet for future enhancements.
