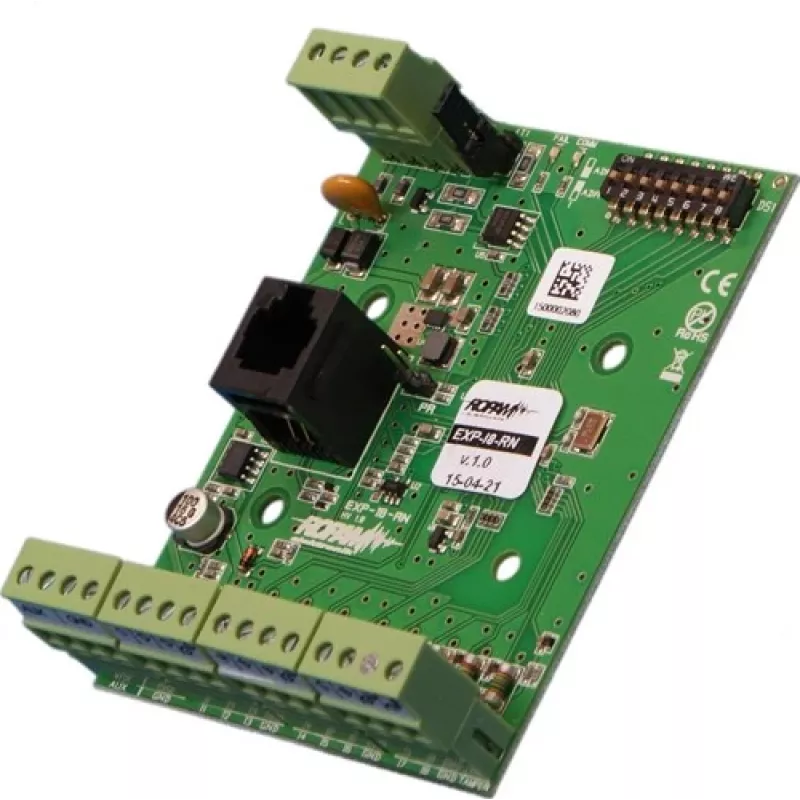

ROSE&TULIPANI ROPAM Módulo de expansão EXP-I8-RN

The ROSE&TULIPANI ROPAM Expander Module EXP-I8-RN is a high-quality input expansion module designed to extend the zone capacity of Ropam alarm and automation control panels. It provides 8 programmable inputs that can be configured for various detection modes, making it an ideal solution for security systems, access control, and building automation.

Advantages

This expander module offers flexible input configuration (NO, NC, EOL, 2EOL/NO, 2EOL/NC) to suit different sensor types. It communicates via the reliable Ropam NET bus (RS-485) and is compatible with NeoGSM-IP, OptimaGSM, and MultiGSM series panels. The module features LED indicators for power, bus status, and each input, simplifying diagnostics. Its compact design supports both DIN rail and surface mounting, and the ABS plastic housing ensures durability.

Suitable for

• Expanding input zones in alarm and security systems
• Building automation and access control applications
• Integration with Ropam control panels for enhanced monitoring

Key specifications

• Product Type: Input Expander Module
• Number of Inputs: 8
• Input Configuration Modes: NO, NC, EOL, 2EOL/NO, 2EOL/NC
• Communication Interface: Ropam NET bus (RS-485)
• Power Supply: 12V DC (from Ropam NET bus)
• Current Consumption (Standby): ~25 mA
• Compatibility: Ropam NeoGSM-IP, OptimaGSM, MultiGSM series
• Max Bus Length: Up to 1000 m
• LED Indicators: Power, Bus Status, 8x Input Status
• Mounting Type: DIN rail or Surface mount
• Operating Temperature Range: -10°C to +55°C
• Operating Humidity: 10-90% RH (non-condensing)
• Housing Material: ABS Plastic
• Input Response Time: Programmable (e.g., 50ms, 300ms, 750ms)
• Firmware Update: Yes, via Ropam NET

Recommendations

For optimal performance, use shielded twisted-pair cable for the Ropam NET bus and ensure proper termination. The module should be installed by a qualified technician following local safety regulations.
