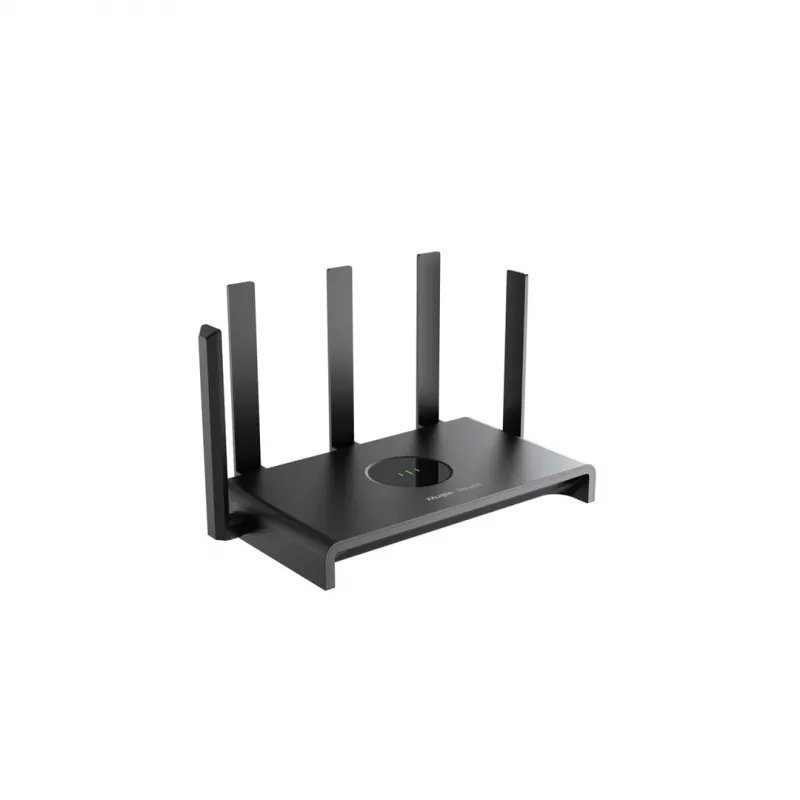

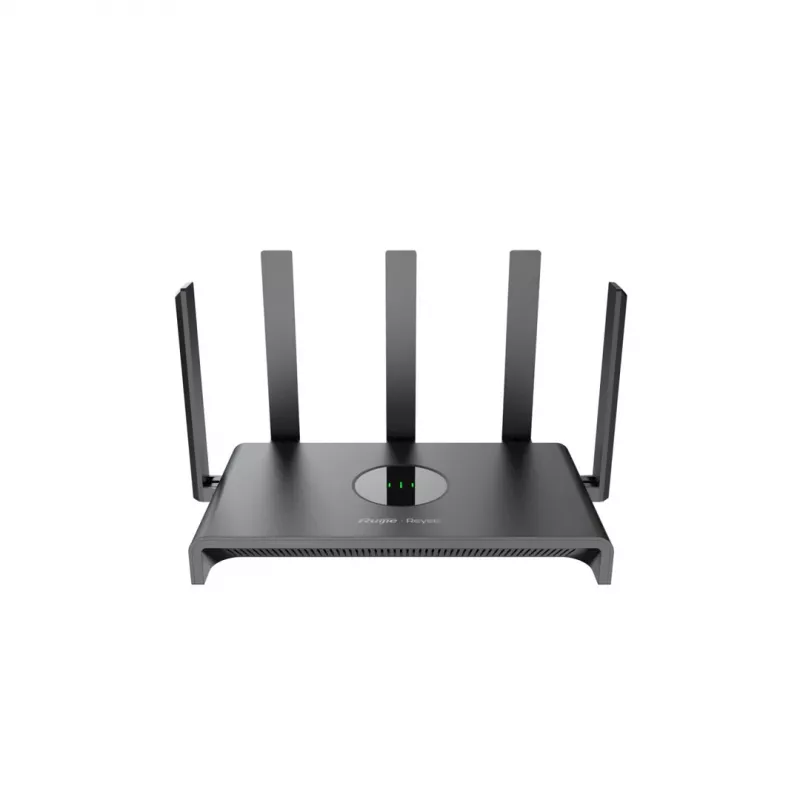

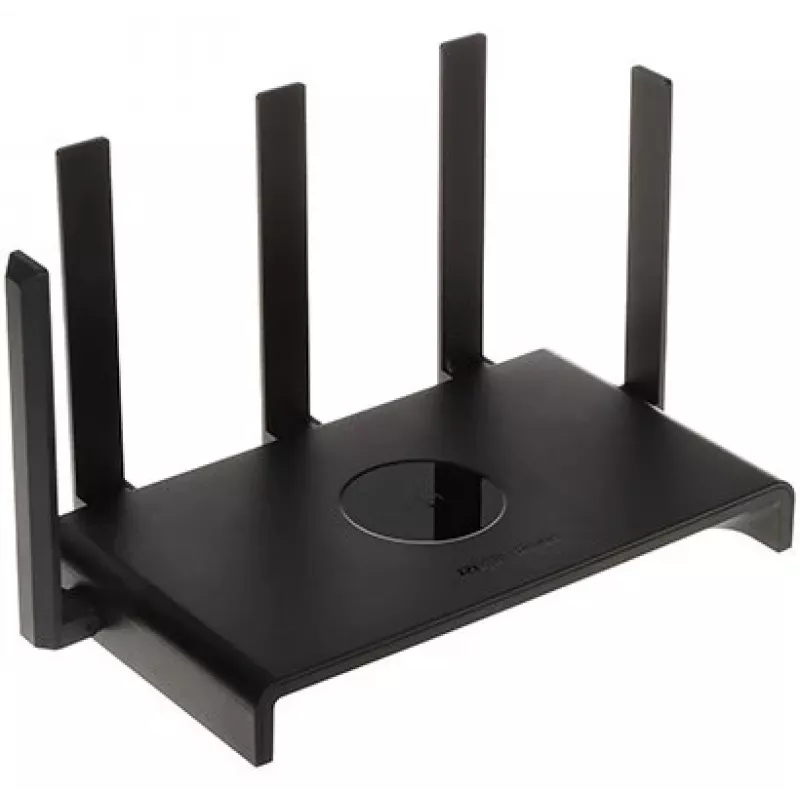

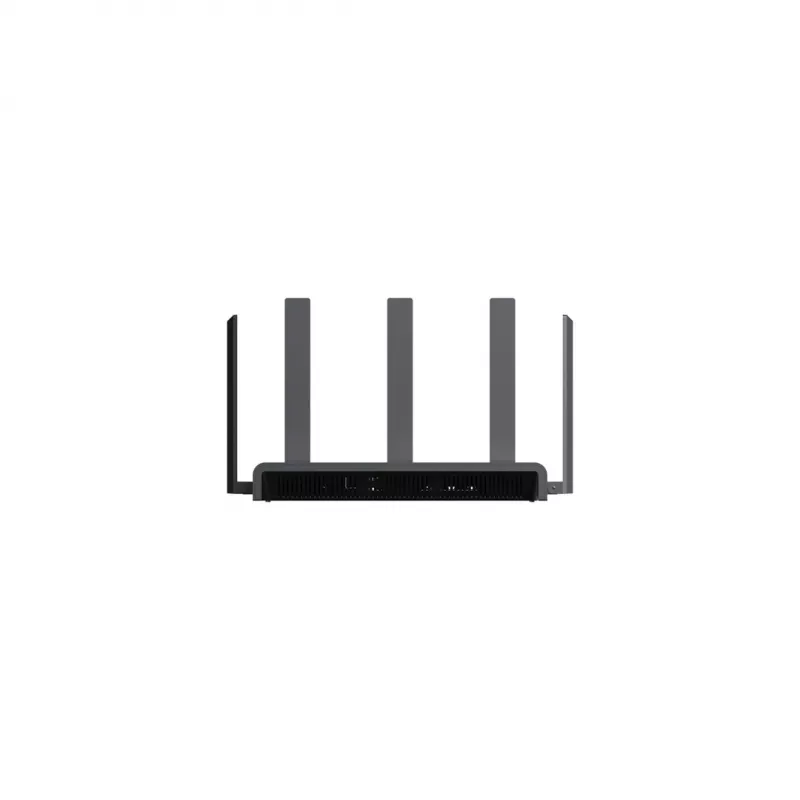

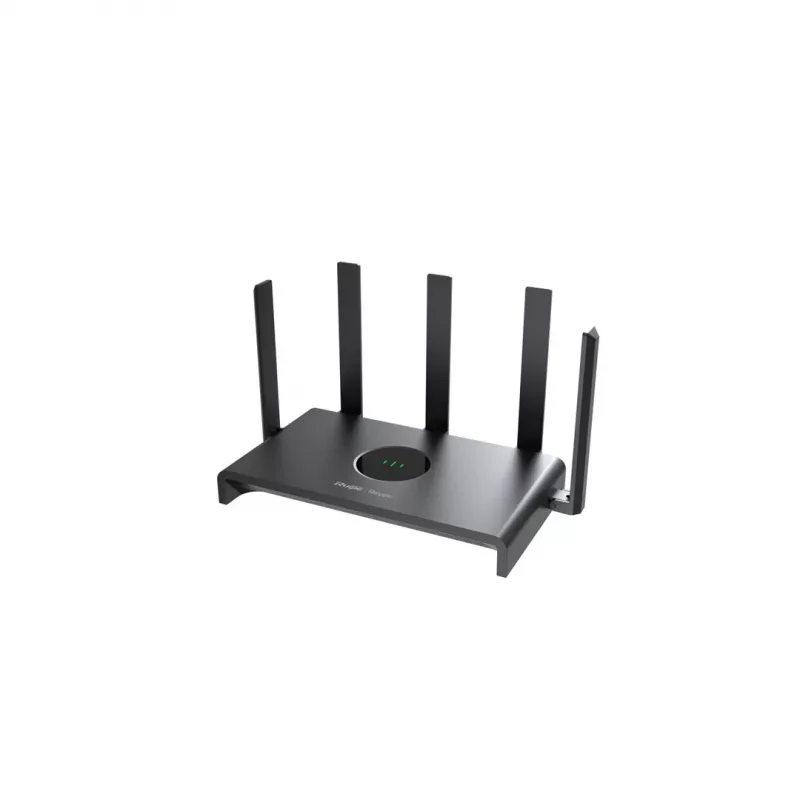

Router de secretária RUIJIE RG-EW1300G Dual-Band Wi‑Fi 5 1300 Mbit/s, MediaTek MT7621, 3x Gigabit-LAN, 5 antenas externas

RUIJIE RG-EW1300G is a tabletop dual-band Wi‑Fi 5 router that delivers up to 1300 Mbps total throughput (400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). It is powered by a MediaTek MT7621 processor with 128 MB internal memory and supports MU‑MIMO and OFDMA for improved wireless efficiency. The device includes one RJ‑45 WAN port, three Gigabit Ethernet LAN ports, five external antennas and is firmware upgradeable. It is AC powered and supplied with an AC adapter and quick start guide.

Advantages

The router offers dual‑band operation to reduce congestion, Gigabit LAN ports for high‑speed wired connections, and external antennas to improve coverage. Hardware support for MU‑MIMO and OFDMA enhances simultaneous multi‑device performance. Built‑in QoS, guest network, parental controls and WPA2 security provide basic network management and protection. Compact tabletop design and firmware upgradability simplify deployment and maintenance.

Suitable for

• Home networks with multiple wireless devices
• Small office environments requiring wired Gigabit connections
• Streaming video and online gaming on several devices
• Guest Wi‑Fi and basic parental control setups

Key specifications

• Wireless standard: Wi‑Fi 5 (802.11ac), also compatible with Wi‑Fi 4 (802.11n)
• Wi‑Fi bands: Dual‑band 2.4 GHz and 5 GHz
• Maximum WLAN data rate: up to 1300 Mbps (400 Mbps @2.4 GHz + 867 Mbps @5 GHz)
• Processor: MediaTek MT7621
• Internal memory: 128 MB

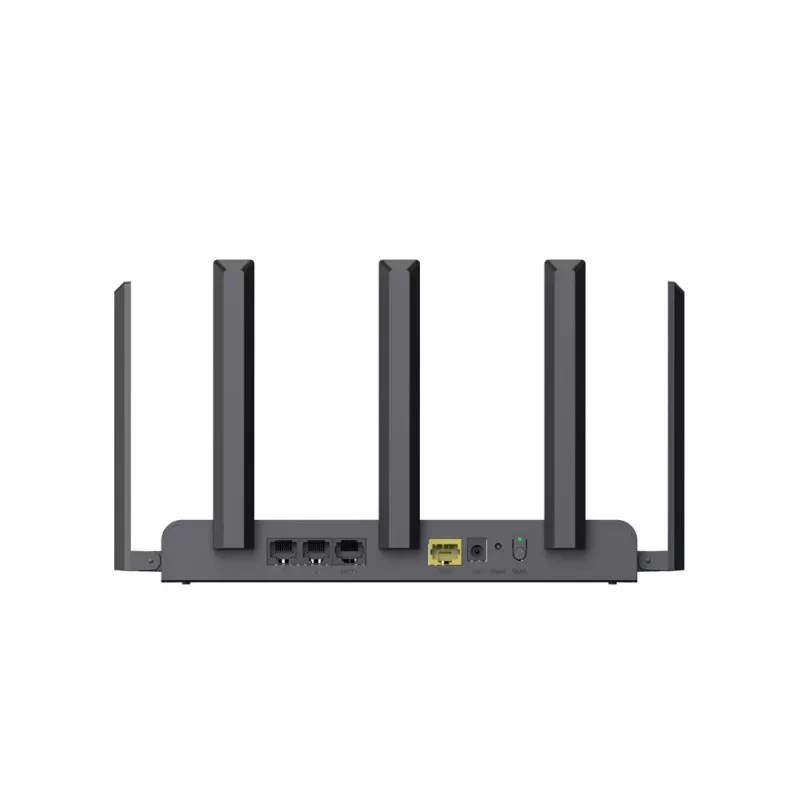

• Ethernet LAN: 3 × Gigabit Ethernet ports (1000 Mbps)
• WAN: RJ‑45 Ethernet WAN
• Antennas: 5 external antennas
• Security: WPA2, guest access, DMZ, parental controls
• Management features: MU‑MIMO, OFDMA, QoS, WPS button, reset button, UPnP, DHCP server
• Operating temperature: -10 to 40 °C
• Operating humidity: 5–95% relative humidity
• Power: AC powered (AC adapter included)
• Dimensions (H×W×D): 30 × 230 × 130 mm; Weight: 290 g

How to use

Place the tabletop router in a central location with the external antennas positioned vertically for best coverage. Connect the AC adapter to the DC‑in jack and plug the WAN RJ‑45 port into your modem or upstream network. Use Gigabit LAN ports for wired devices that require stable high speeds. Access the router web interface or mobile setup utility to configure wireless SSIDs, security (WPA2), QoS, guest network and parental controls. Check for firmware updates and apply them as needed to maintain performance and security.

Recommendations

For optimal performance, keep firmware up to date, position the router away from large metal objects and microwave ovens, and use the 5 GHz band for bandwidth‑heavy activities while reserving 2.4 GHz for longer‑range connections and legacy devices.
