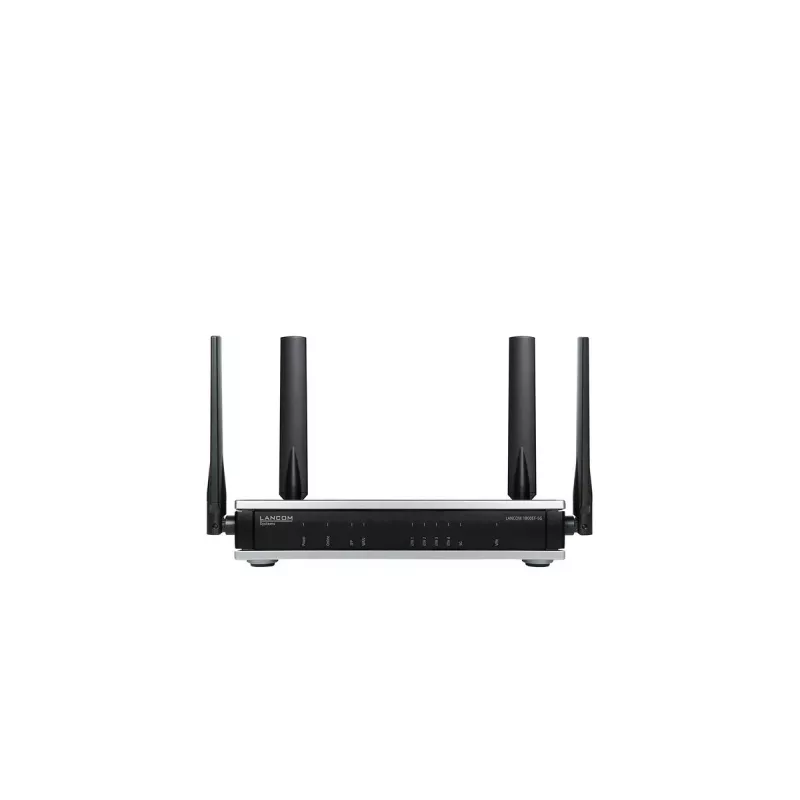

Router LANCOM 1800EF-5G preto prateado 5G Ethernet 1000 Mbit/s

The LANCOM 1800EF-5G is a business-class SD-WAN gateway that combines 5G, fiber and Gigabit Ethernet interfaces to provide high-performance, highly available networking for data-intensive and business-critical applications. It supports direct FTTH connection via SFP (GPON/AON modules available separately) and connection to external modems via Gigabit Ethernet, while an integrated 5G modem provides resilient failover or mobile primary access. With LANCOM IPSec VPN and SD-WAN, up to 5 sites (optionally 25 with a license) and mobile users are securely interconnected.

Advantages

The device offers multiple access types (5G, fiber, Gigabit Ethernet) for increased uptime and flexible deployment. LANCOM SD-WAN enables centralized management, automated Auto‑VPN and Auto‑VLAN setup via the LANCOM Management Cloud, dynamic path selection and traffic steering, and active/active WAN operation for load balancing. Built-in security features include IPSec VPN channels, a stateful inspection firewall, intrusion prevention and DoS protection. Hardware and software development are primarily located in Germany, ensuring regular OS updates and long-term support.

Suitable for

• Branch offices and distributed site networks requiring secure VPN connectivity
• Company locations with data‑intensive or real‑time applications (telephony, video conferencing, 4K/8K streaming, AR)
• Deployments needing fiber (FTTH) or connection to external modems via Gigabit Ethernet
• Mobile primary access or broadband failover using integrated 5G

Key specifications

• Interfaces: 5G modem, SFP port (GPON/AON SFP modules sold separately), Gigabit Ethernet
• WAN speeds: 10/100/1000 Mbit/s
• IPSec VPN: 5 integrated channels (upgradeable to 25 with LANCOM VPN Option)
• SD‑WAN features: Auto‑VPN, Auto‑VLAN, High Scalability VPN (HSVPN), Advanced Mesh VPN, Dynamic Path Selection, Dynamic Traffic Steering
• Network virtualization: up to 16 isolated IP contexts (ARF)
• Security: stateful inspection firewall, intrusion prevention, DoS protection, AES/RSA algorithms
• Antenna: external SMA, 2 dBi
• SIM card type: MicroSIM
• Product colour: Black, Silver
• Weight: 0.45 kg

How to use

Install the LANCOM 1800EF-5G in a rack or on a shelf and connect the primary access via SFP (if using fiber) or the Gigabit Ethernet port for an external modem. Insert a MicroSIM for 5G access if required and attach the external SMA antennas. Use the LANCOM Management Cloud for zero‑touch deployment to provision Auto‑VPN and Auto‑VLAN settings across branch sites. Configure SD‑WAN policies such as dynamic traffic steering, link monitoring and active/active WAN to ensure optimal routing and failover behavior.

Recommendations

For resilient site connectivity, configure at least two WAN paths (for example fiber/SFP plus 5G) and enable active/active mode with Dynamic Path Selection. Apply the LANCOM VPN Option when you require more than five IPSec channels. Keep the LANCOM OS updated regularly to maintain security and compatibility.
