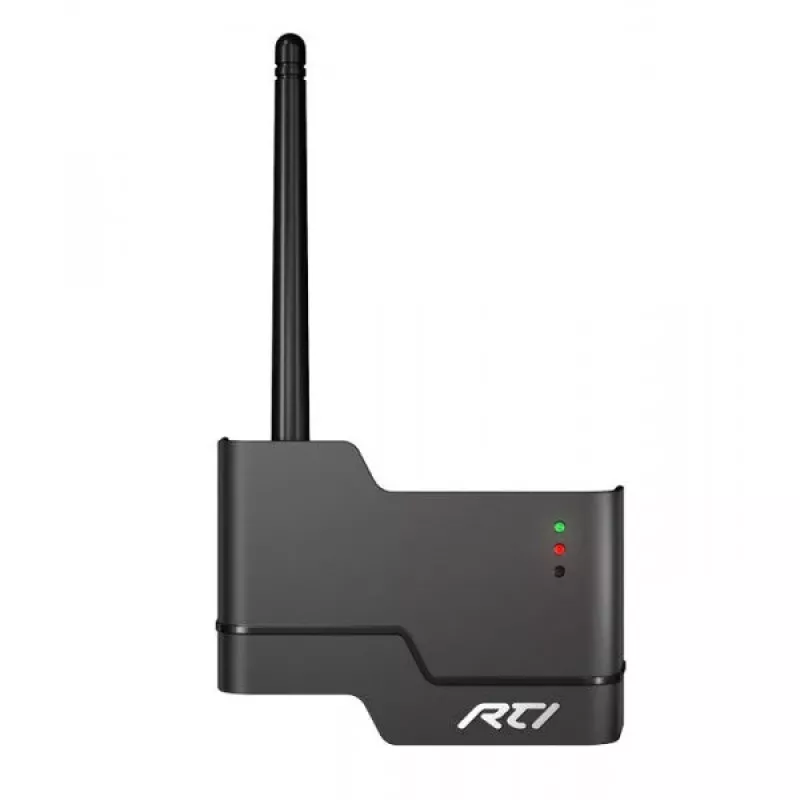

RTI ZM-24 Transceptor / Gateway Zigbee

The RTI ZM-24 is a high-performance Zigbee transceiver and gateway designed for seamless integration with RTI XP Series control processors. It enables reliable two-way wireless communication for home automation and custom installation systems, supporting mesh network topology for extended coverage.

Advantages

Extends control system range with up to 30 meters (100 feet) indoor line-of-sight coverage. Supports mesh networking for robust signal propagation. Easy integration via RS-232 serial connection to RTI XP processors. Compact design with wall-mountable or shelf placement options.

Suitable for

• Home automation and smart home control systems
• Custom installation projects requiring Zigbee wireless connectivity
• Integration with RTI XP Series control processors (XP-3, XP-6, XP-8v, XP-8s, XP-10, XP-12, XP-20, XP-24)

Key specifications

• Wireless Protocol: Zigbee (IEEE 802.15.4)
• Frequency Band: 2.4 GHz
• Communication: Two-way wireless
• Connectivity: RS-232 (Serial)
• Maximum Indoor Range: Up to 30 meters (100 feet) line of sight
• Power Input: 12V DC
• Current Consumption: 300 mA (max)
• Antenna Type: External SMA connector, omni-directional
• Status Indicators: Power LED, Link LED, Activity LED
• Mounting Options: Wall-mountable, shelf placement
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Operating Humidity: 5% to 95% non-condensing
• Housing Material: High-impact plastic
• Included Accessories: Zigbee antenna

Recommendations

For optimal performance, mount the ZM-24 in a central location away from large metal obstructions. Pair with RTI XP Series processors for a complete control solution.
