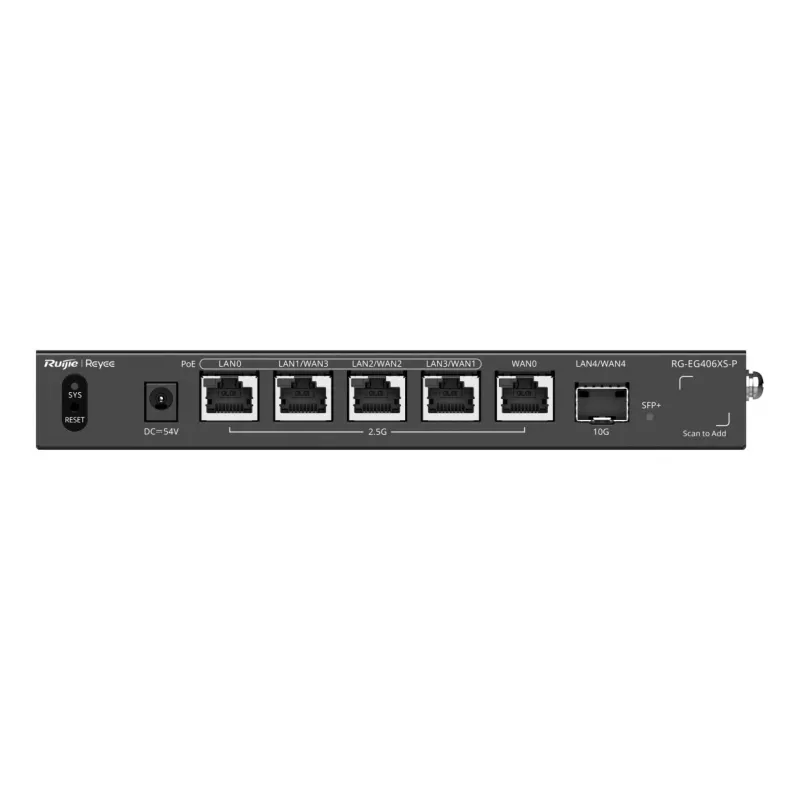

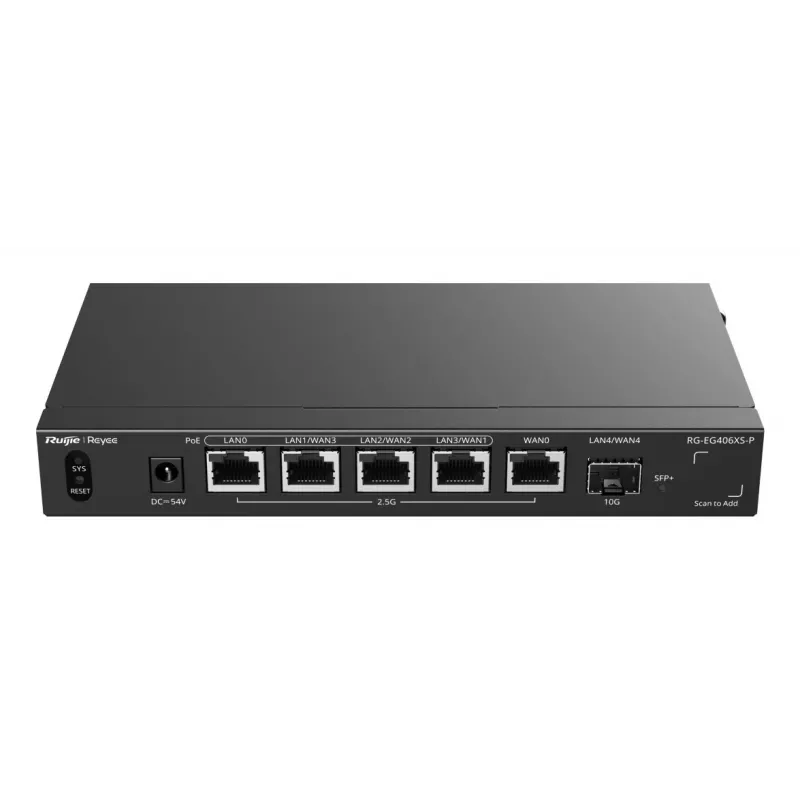

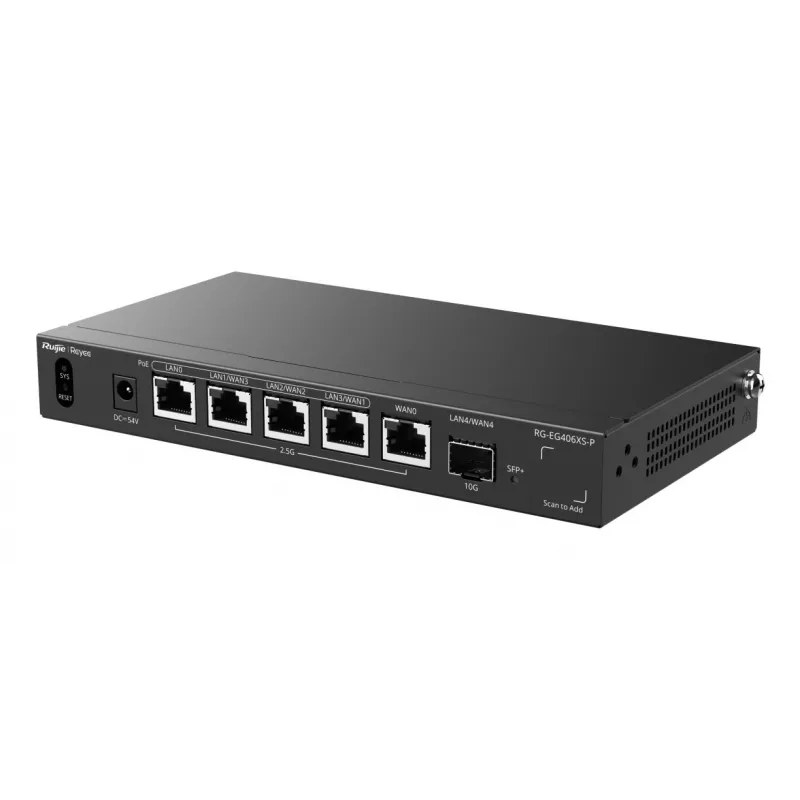

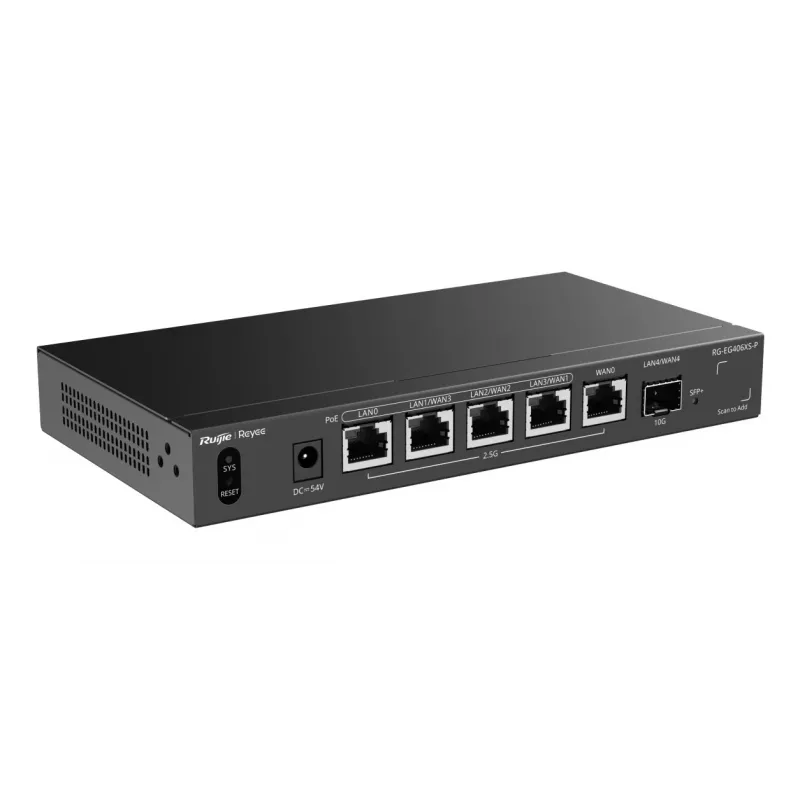

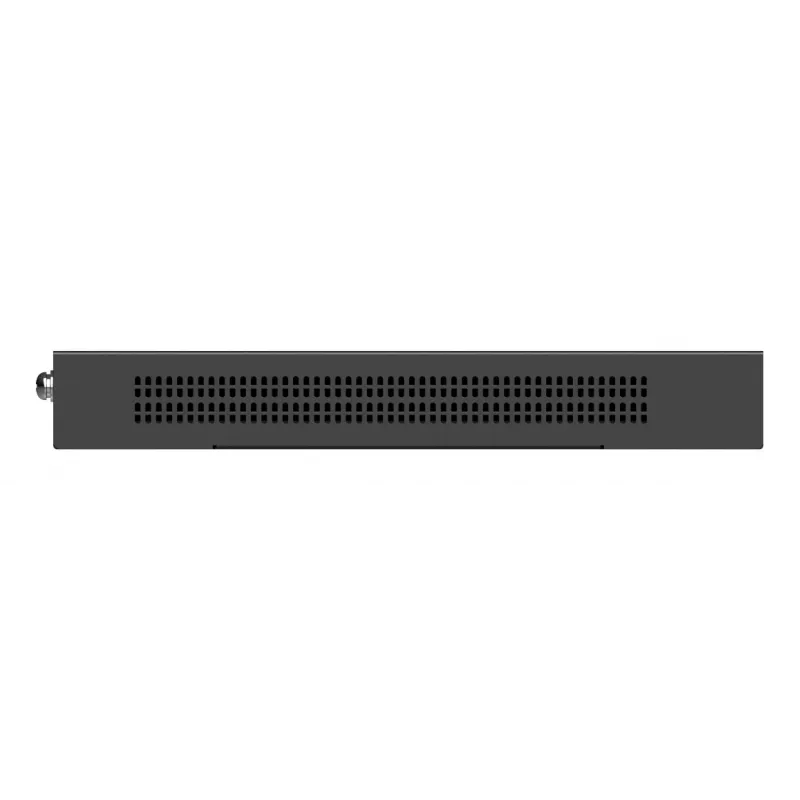

Ruijie Reyee RG-EG406XS-P router gateway cloud multi-WAN, 6x 2.5GE RJ45, 1x 10GE SFP+, 4 PoE, VPN, para rack

The Ruijie Reyee RG-EG406XS-P is a high-performance Multi-WAN Cloud Gateway Router designed for small to medium businesses and enterprise branch offices. It combines robust routing, advanced VPN capabilities, and cloud management in a compact 1U rackmount form factor. With 6x 2.5 Gigabit Ethernet ports and 1x 10 Gigabit SFP+ port, it delivers exceptional throughput and flexibility for demanding network environments.

Advantages

Experience seamless connectivity with multi-WAN load balancing, ensuring optimal bandwidth utilization and failover protection. The integrated cloud management via Ruijie Cloud App simplifies deployment and monitoring, reducing operational costs. Advanced security features including firewall, VLAN, QoS, and ACL provide enterprise-grade protection. The router supports up to 300 concurrent users and 300,000 concurrent sessions, making it ideal for growing businesses.

Suitable for

• Small to medium businesses requiring reliable and scalable network infrastructure
• Enterprise branch offices needing secure VPN connectivity (IPSec, SSL, L2TP, PPTP, OpenVPN)
• Deployments requiring multi-WAN aggregation and load balancing
• Environments where cloud-based network management is preferred

Key specifications

• Product Type: Multi-WAN Cloud Gateway / Router
• Total Network Ports: 6x RJ45 2.5GE, 1x SFP+ 10GE
• Fixed WAN: 1x 2.5GE RJ45
• Fixed LAN: 1x 2.5GE RJ45
• Configurable LAN/WAN: 3x 2.5GE RJ45, 1x 10GE SFP+
• Firewall Throughput: 2.5 Gbps
• VPN Throughput (IPSec): 1.5 Gbps
• Recommended Concurrent Users: 300
• Max Concurrent Sessions: 300,000
• VPN Protocols: IPSec, SSL, L2TP, PPTP, OpenVPN
• Management: Ruijie Cloud App, Web UI
• Mounting: 1U Rackmount, Desktop
• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption: < 20W
• Additional Ports: 1x Console (RJ45), 1x USB 3.0
• Advanced Features: Multi-WAN Load Balancing, Link Aggregation, VLAN, QoS, ACL, Bandwidth Management, Captive Portal

Recommendations

For optimal performance, pair the RG-EG406XS-P with Ruijie Reyee switches and access points to create a fully managed cloud network. Ensure proper ventilation in rackmount installations. The router supports PoE on all 2.5GE ports, simplifying power delivery to connected devices.
