RUKO HGB conjunto de 2 peças DIN 2181 rosca métrica fina machos de rosca manuais M30 x 1,0

Cutting precise M30 x 1.0 metric fine threads by hand in tough materials demands taps that stay sharp and aligned. This 2-piece HSS-G hand tap set solves that with ground flutes and a DIN 2181 design built for clean, accurate threads in steel, cast iron, and non-ferrous metals.

Who is it for

Machinists, metalworkers, and maintenance technicians who need reliable hand tapping for through holes and blind holes in unalloyed or low-alloy steels up to 800 N/mm², malleable cast iron, and non-ferrous metals.

Main features

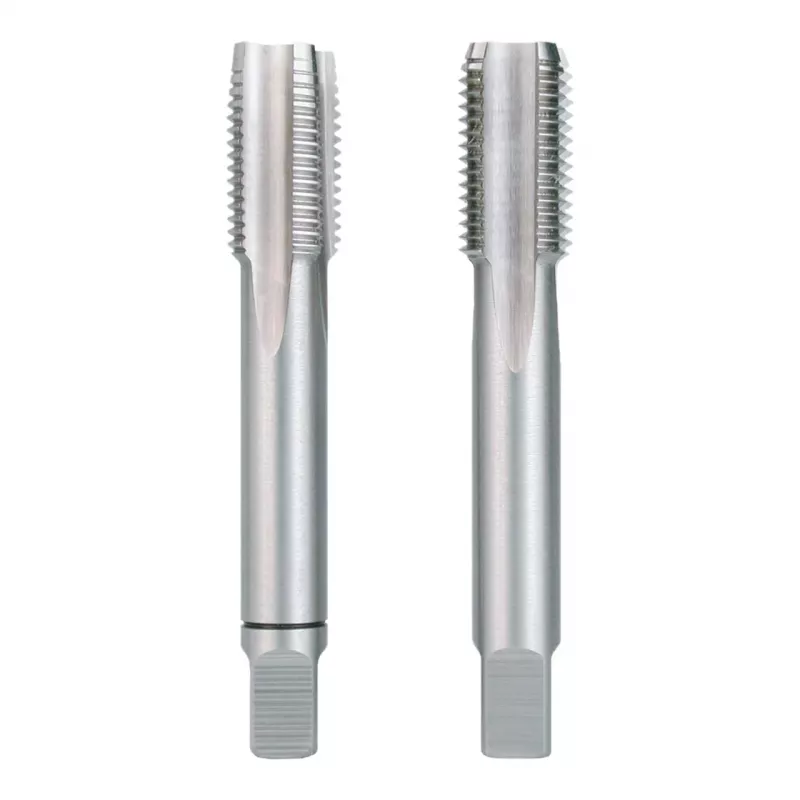

• Set includes taper tap (No. 1) and plug tap (No. 2) for progressive thread cutting.
• Metric fine thread M30 x 1.0 with 60° profile angle, ISO 2 (6H) tolerance class.
• Made from HSS-G (high-speed steel, ground) for durability and clean cutting edges.
• Bright uncoated finish reduces chip adhesion in general-purpose work.
• Right-hand cutting direction, 4-5 flutes for efficient chip evacuation.

Specifications

• Thread type: Metric fine (MF)
• Thread size: M30 x 1.0
• Standard: DIN 2181
• Material: HSS-G
• Overall length: 160 mm
• Thread length: 55 mm
• Shank diameter: 22.0 mm
• Square drive: 17.0 mm
• Cutting direction: Right-hand
• Tolerance class: ISO 2 (6H)
• Number of flutes: 4-5
• Thread profile angle: 60°
• Recommended material hardness: up to 800 N/mm²
• Application: General purpose for unalloyed/low-alloy steels, malleable cast iron, non-ferrous metals

Tips

Use a suitable tapping fluid and reverse the tap periodically to break chips, especially in blind holes. For best results, start with the taper tap and finish with the plug tap.
