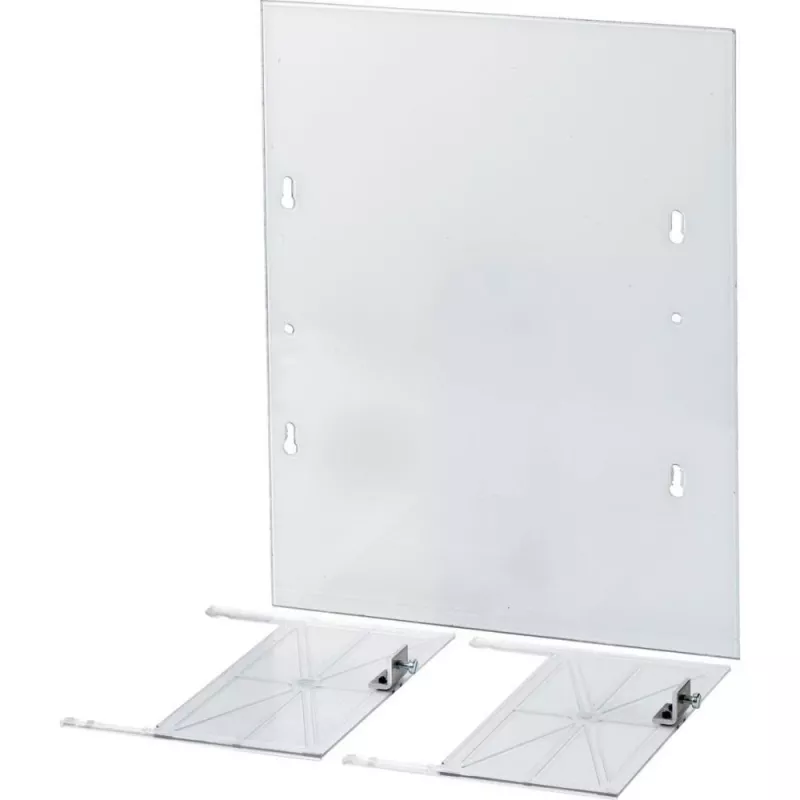

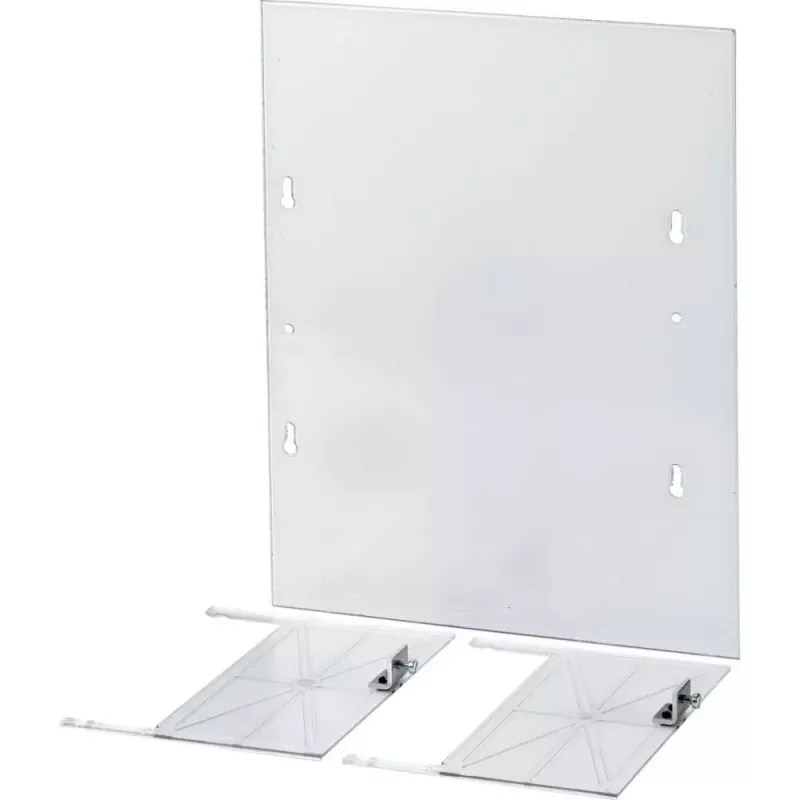

Tampa de fusível Eaton Xpole QSAFCOVER400/600/8 para interruptor de corte de carga 400-600A, policarbonato transparente, 165x70x70 mm

In electrical distribution systems, exposed live parts on high-current fuse switch-disconnectors pose a serious safety risk during maintenance and operation. Accidental contact can lead to severe injury or equipment damage. The Eaton Xpole QSAFCOVER400/600/8 fuse protection cover addresses this hazard by providing a transparent, insulating barrier that snaps directly onto compatible Eaton Xpole devices rated from 400A to 600A. This cover allows visual inspection of fuse status while maintaining a safe separation from energized components, ensuring compliance with safety standards and peace of mind for installers and maintenance personnel.

Who is it for

This accessory is intended for electricians, panel builders, and maintenance technicians working in industrial, commercial, and utility environments. It is ideal for those who install or service Eaton Xpole fuse switch-disconnectors in distribution boards, motor control centers, and switchgear assemblies. The cover is particularly valuable in applications where frequent fuse checks are required without shutting down the entire system, as its transparent design enables quick visual verification while keeping personnel protected.

Main features

• Transparent polycarbonate construction allows clear visibility of fuse status and connection points.
• Snap-on mounting for quick, tool-free installation on compatible Eaton Xpole devices.
• Provides IP20 degree of protection against direct contact with live parts when correctly fitted.
• Compatible with Eaton Xpole fuse switch-disconnectors rated 400A to 600A.
• Compact dimensions (165 mm length, 70 mm width, 70 mm height) fit standard panel layouts.
• Electrically insulating material enhances operator safety during routine inspections.

Specifications

• Brand: Eaton
• Model: QSAFCOVER400/600/8
• MPN: 1319426
• EAN: 8711426701977
• Product type: Fuse protection cover
• Manufacturer series: Xpole
• Compatibility: Eaton Xpole fuse switch-disconnectors, 400A-600A
• Material: Polycarbonate (PC)
• Colour: Transparent
• Mounting method: Snap-on / clip-on
• Degree of protection: IP20 (when installed correctly)
• Standards compliance: IEC/EN 60947-3 (for associated device)
• Length: 165 mm
• Width: 70 mm
• Height: 70 mm

Tips

Before installing the cover, ensure the fuse switch-disconnector is de-energized and locked out according to your facility's safety procedures. Verify that the cover model matches the specific Eaton Xpole device rating and frame size. The transparent material may accumulate dust over time; clean with a dry, soft cloth to maintain visibility. Store spare covers in a cool, dry place away from direct sunlight to prevent material degradation. For installations in harsh environments, consider additional protective measures as IP20 is intended for indoor use only.
