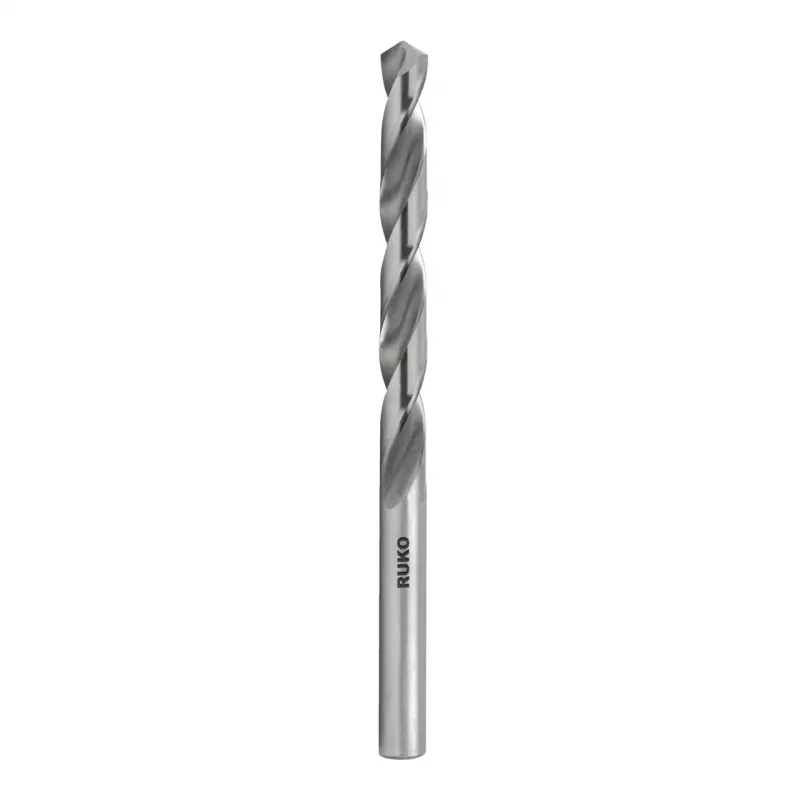

RUKO SPB-DIN338 HSS-G Broca helicoidal com afiação de cruz 12,4 mm

Twist drill bit with split point for precise centering and reduced feed pressure, manufactured from solid HSS-G (high-speed steel, ground) to DIN 338. The 135° split point ensures self-centering without center punch, making it ideal for stationary and hand-held drilling in a wide range of materials.

Advantages

Precision ground from solid for high accuracy and long tool life. The split point design minimizes walking and requires less feed pressure, improving hole quality and operator comfort. Bright finish provides a clean surface and good chip evacuation.

Suitable for

• Steel and cast steel
• Alloyed and non-alloyed materials
• Grey cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: HSS-G (high-speed steel, ground)
• Diameter: 12.4 mm
• Point type: Split point (Kreuzanschliff)
• Point angle: 135°
• Shank type: Cylindrical
• Shank diameter: 12.4 mm
• Flute type: Right-hand cutting
• Surface finish: Bright (uncoated)
• Overall length (l1): 151 mm
• Working length (l2): 101 mm
• Tolerance: h8

Recommendations

Use with suitable cutting fluid for extended tool life when drilling steel. Ensure proper spindle speed and feed for the material to achieve optimal results.
