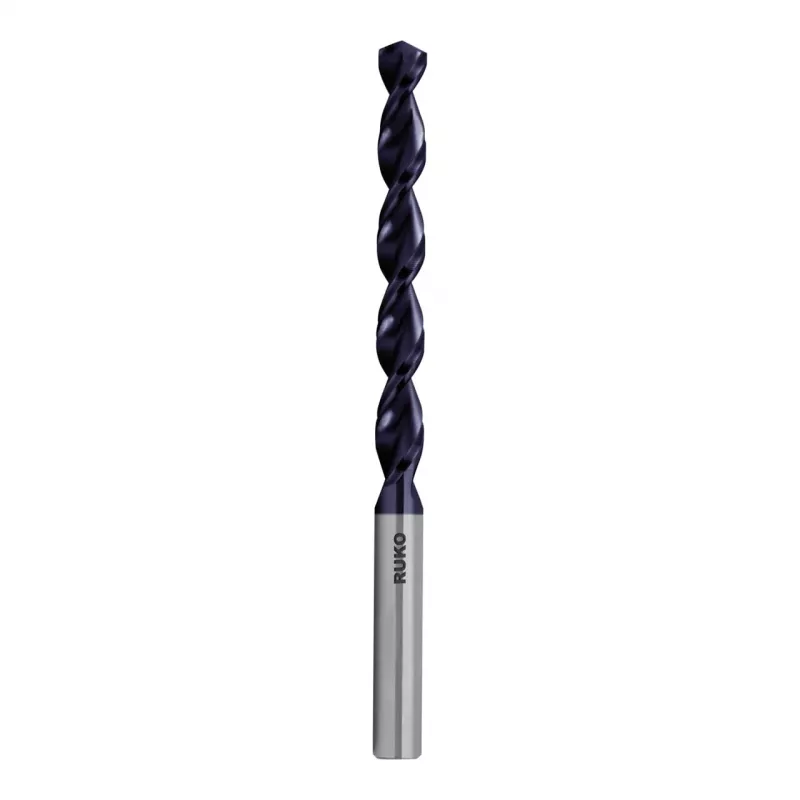

RUKO SPB-DIN338-HSS-TiAlN broca helicoidal 10,5 mm

Twist drill bit with 10.5 mm diameter, made from high-speed steel with TiAlN coating for high heat and wear resistance. Fully ground per DIN 338 with cylindrical shank and 118° point angle for precise drilling in steel up to 900 N/mm², cast iron, non-ferrous metals, and plastics.

Advantages

TiAlN coating provides high heat resistance and extended tool life. Fully ground flutes ensure accurate hole size and smooth chip evacuation. Right-hand cutting direction suits standard drilling machines.

Suitable for

• Steel up to 900 N/mm²
• Cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Diameter: 10.5 mm
• Total length: 133 mm
• Flute length: 87 mm
• Shank: Cylindrical
• Point angle: 118°
• Coating: TiAlN
• Material: HSS
• Standard: DIN 338

Recommendations

Use cutting fluid for deep holes in steel to reduce heat and improve tool life.
