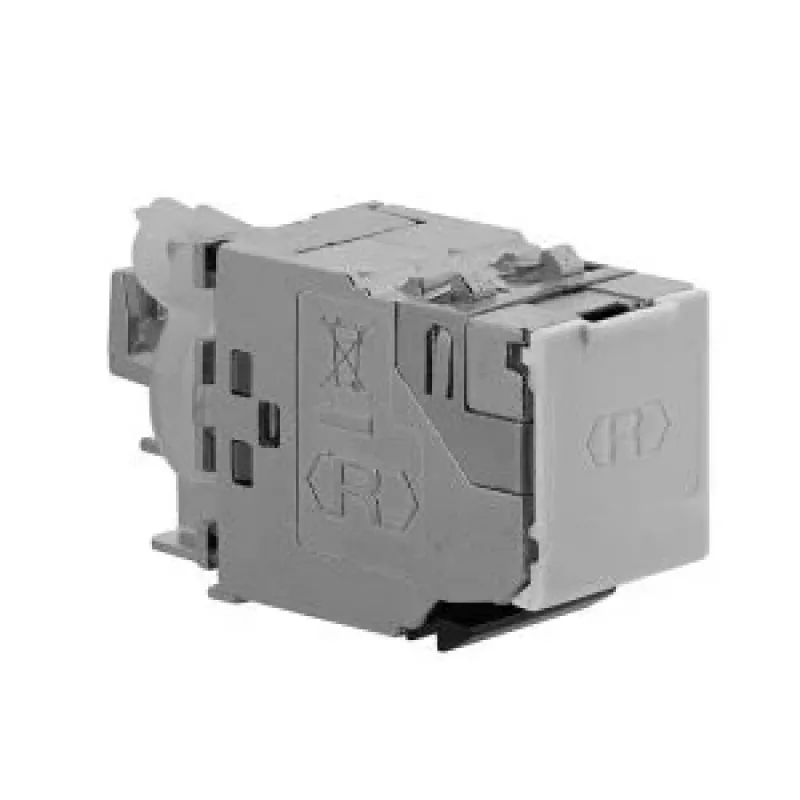

Rutenbeck Módulo Keystone Cat.8.1, 1xRJ45, blindado, sem ferramentas, 40/25/10G, Classe I 13900306

In high-density data centres and enterprise networks, the Rutenbeck Cat.8.1 keystone module provides a reliable, shielded RJ45 connection point for 40GBASE-T, 25GBASE-T, and 10GBASE-T applications. Its die-cast zinc housing and tool-free IDC termination make it a practical choice for structured cabling installers working with keystone panels and outlets.

Key specifications

• Performance category: Cat.8.1 (ISO/IEC 11801-1)
• Transmission class: Class I
• Connector type: RJ45, 1 port
• Shielding: Fully shielded die-cast zinc housing
• Data transfer rate: 40GBASE-T, 25GBASE-T, 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1GBASE-T
• Frequency range: Up to 2000 MHz
• Form factor: Keystone
• Termination type: Tool-less IDC
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Wire gauge compatibility: AWG 24/1 to AWG 22/1 (solid), AWG 26/7 to AWG 22/7 (stranded)
• Housing material: Die-cast zinc
• Contact plating: Gold-plated
• Standards compliance: ISO/IEC 11801-1, EN 50173-1, TIA-568.2-D, IEC 60603-7-81
• Wiring scheme: T568A and T568B compatible
• Installation: Snap-in mounting for keystone panels and outlets

Why choose it

The fully shielded zinc housing and gold-plated contacts ensure stable high-frequency performance up to 2 GHz, while the tool-free IDC termination speeds up installation without sacrificing reliability. It supports the latest PoE standards, making it suitable for powering devices over the same cable.

Ideal use cases

• Data centre patching and server connections
• Enterprise network horizontal cabling
• High-speed backbone links requiring Cat.8.1 performance
• PoE-powered devices such as access points and IP cameras

Good to know

The module snaps into standard keystone openings, allowing integration into faceplates, patch panels, and surface-mount boxes. It is compatible with both T568A and T568B wiring schemes, providing flexibility in existing installations.
