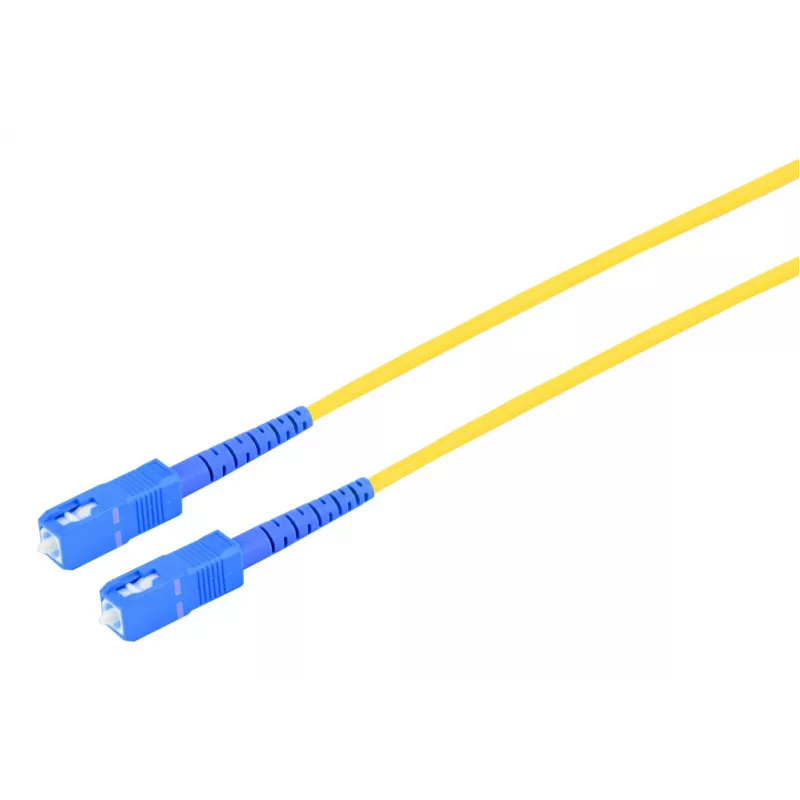

S CONN MAXIMUM CONNECTIVITY Cabo de rede de fibra ótica SC/SC UPC OS2 monomodo, 9/125µm, Amarelo, 0,5m 07-106012

This SC to SC singlemode patch cable uses OS2 fibre with a 9/125µm core/cladding and UPC polished connectors, delivering low insertion loss for reliable optical links. The yellow LSZH jacket meets indoor low-smoke requirements and the 0.5m length suits tight patching between equipment and fibre panels.

Highlights

• SC/UPC to SC/UPC connectors
• OS2 singlemode fibre, 9/125µm
• Yellow LSZH jacket
• 0.5m length

In daily use

Connect switches, routers, media converters or patch panels in data centres and building backbones. The simplex design handles one fibre path; use two cables for duplex links. UPC polish reduces back reflections, making it suitable for high-speed singlemode transmission at 1310nm and 1550nm.

Full specifications

• Fibre type: OS2 singlemode
• Core/cladding diameter: 9/125 µm
• Connector 1: SC/UPC
• Connector 2: SC/UPC
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Jacket material: LSZH
• Operating temperature: -20°C to +70°C

Final note

A dependable OS2 patch cable for clean singlemode connections in compact spaces.
