S CONN MAXIMUM CONNECTIVITY conjunto de cabos de extensão PV4, 4mm², 2x 20m, preto 02-32095

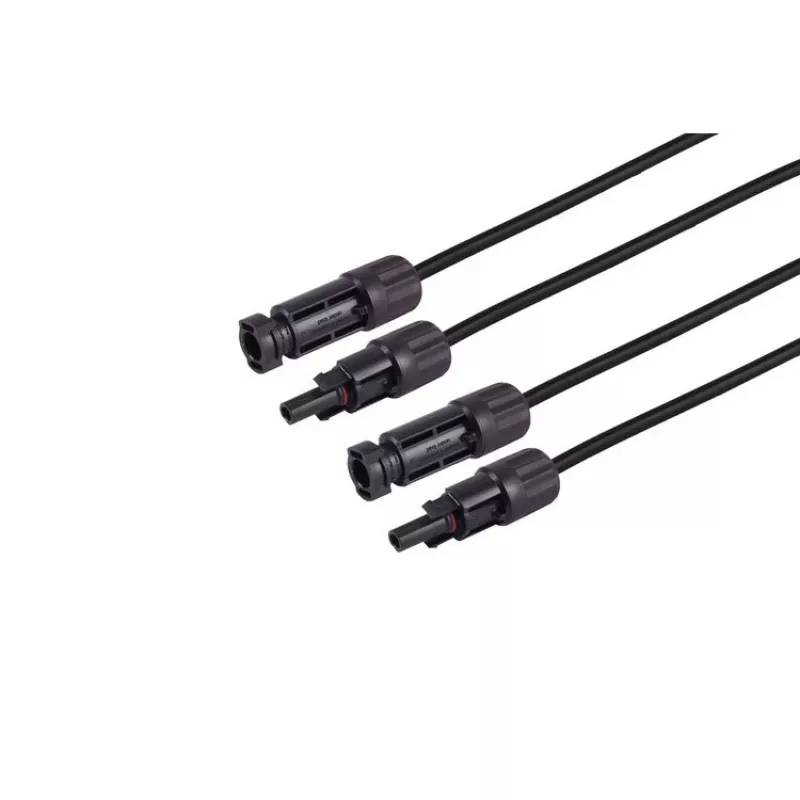

PV extension cable set for solar photovoltaic systems, delivering 4 mm² conductor cross-section over a 20 m length per cable. The set includes two black cables, each terminated with a PV4 male connector on one end and a PV4 female connector on the other, enabling reliable series connections between solar panels.

Advantages

Rated for 1000 V DC and 30 A, the cables use tinned copper conductors and XLPE insulation for durability. The UV and ozone resistant, halogen-free jacket withstands outdoor conditions, with an operating temperature range of -40°C to +90°C and IP67 connectors for weather resistance.

Suitable for

• Connecting solar panels in photovoltaic installations
• Extending existing PV cable runs
• Outdoor solar array wiring

Key specifications

• Cable type: PV extension cable
• Conductor cross-section: 4 mm²
• Cable length (per cable): 20 m
• Number of cables in set: 2
• Cable colour: Black
• Connector type (end 1): PV4 male
• Connector type (end 2): PV4 female
• Rated DC voltage: 1000 V
• Rated current: 30 A
• Conductor material: Tinned copper
• Insulation material: XLPE
• Jacket material: UV and ozone resistant, halogen-free
• Operating temperature range: -40°C to +90°C
• Connector protection rating: IP67
• Outer cable diameter: 6.0 mm

Recommendations

Ideal for installers needing a ready-made, weather-resistant extension for solar panel connections.
