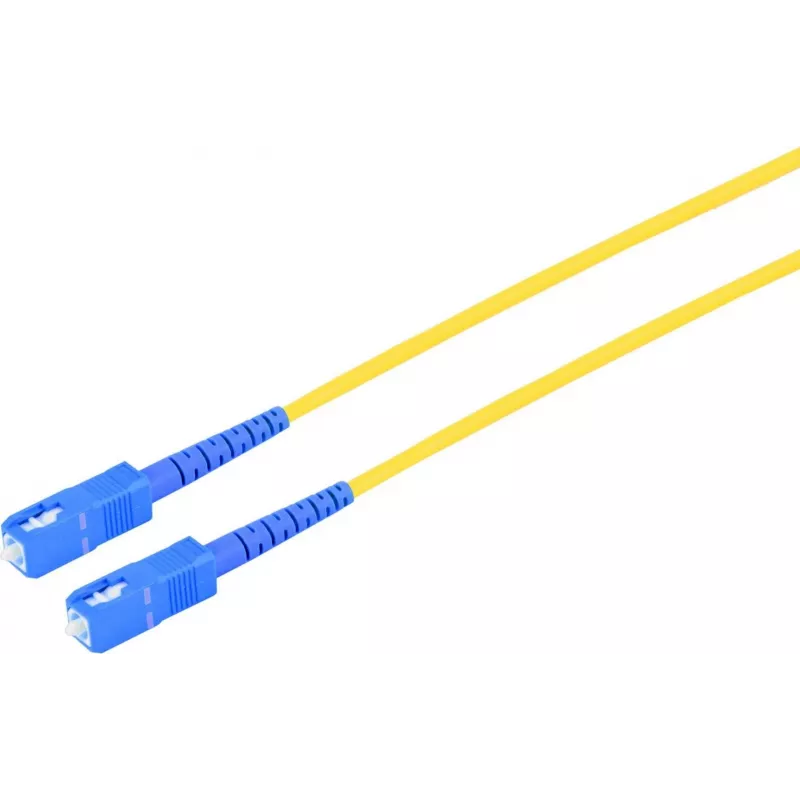

S CONN MAXIMUM CONNECTIVITY SC/SC UPC OS2 Cabo de rede de fibra ótica monomodo, 9/125µm, amarelo, 15m 07-106082

This S CONN MAXIMUM CONNECTIVITY fibre patch cable stands out with its SC/UPC connectors on both ends, delivering low insertion loss and high return loss for reliable singlemode links. The yellow LSZH jacket makes it easy to identify as OS2 singlemode fibre in dense cabling environments.

Highlights

• SC/UPC to SC/UPC connectors with ultra physical contact polish
• OS2 singlemode fibre with 9/125 µm core/cladding diameter
• 15 m length with yellow LSZH jacket for safety and visibility
• Low insertion loss < 0.3 dB per connector and return loss > 50 dB

In daily use

Ideal for data centres, LAN backbones, FTTx and telecommunications, this simplex patch cable maintains signal integrity over 15 metres. The LSZH jacket emits low smoke and zero halogen in case of fire, making it suitable for enclosed spaces. Bend radius of 10D dynamic and 5D static provides flexibility during installation without compromising performance.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Single-mode
• Fibre type: OS2
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector 1: SC/UPC
• Connector 2: SC/UPC
• Connector polish type: UPC
• Cable length: 15 m
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: < 0.3 dB per connector
• Return loss: > 50 dB
• Attenuation at 1310 nm: < 0.35 dB/km
• Attenuation at 1550 nm: < 0.22 dB/km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Minimum bend radius: 10D dynamic, 5D static
• Standards compliance: IEC 60793, IEC 61754, TIA/EIA-568-C.3

Final note

Built for stable singlemode connections, this patch cable combines performance with safety in a 15-metre reach.
