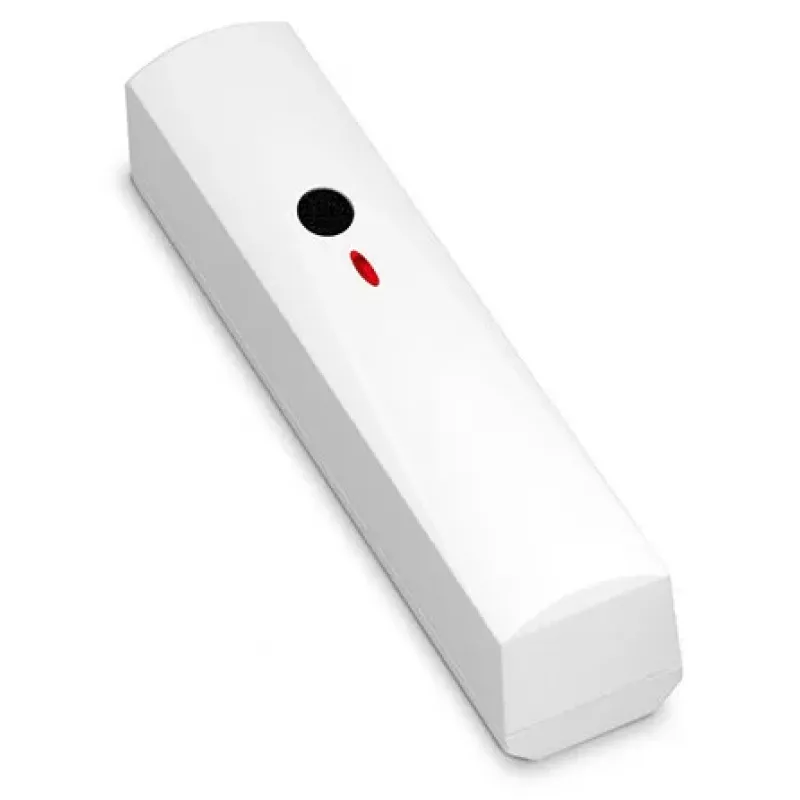

Satel MGD-300 Detetor de quebra de vidro sem fios

The Satel MGD-300 is a wireless glass break detector designed for indoor use, compatible with Satel ABAX 2 and ABAX wireless systems. It utilizes acoustic detection methods, analyzing shockwaves and sound frequencies to reliably detect glass breakage. Ideal for residential and commercial security applications, the detector offers a detection range of up to 9 meters radius and features remote sensitivity adjustment via DLOADX software.

Advantages

Reliable glass break detection with advanced acoustic analysis. Long battery life of up to 2 years in ABAX 2 systems. Easy remote configuration and tamper protection for enhanced security.

Suitable for

• Indoor security systems in homes and offices
• Integration with Satel ABAX 2 or ABAX wireless alarm systems
• Protection of glass doors, windows, and display cases

Key specifications

• Detection Method: Acoustic (shockwave and sound frequency analysis)
• Wireless Compatibility: Satel ABAX 2 / ABAX
• Frequency Band: 868 MHz
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 2 years (ABAX 2), Up to 1 year (ABAX)
• Detection Range: Up to 9 m radius
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Tamper Protection: Enclosure opening and detachment from mounting surface
• Communication Range: Up to 2000 m (ABAX 2), Up to 500 m (ABAX) open area
• Sensitivity Adjustment: Remote via DLOADX software
• Alarm Signaling: Wireless signal to control panel
• Installation Location: Indoor
• Compliance: EN 50131 Grade 2 (ABAX 2 system)
• Housing Material: ABS Plastic
• Current Consumption: 15 µA standby, 12 mA max
• Recommended Mounting Height: 2.1 - 2.7 m

Recommendations

For optimal performance, mount the detector at a height of 2.1 to 2.7 meters and ensure clear line of sight to the protected glass. Use only with Satel ABAX 2 or ABAX control panels.
