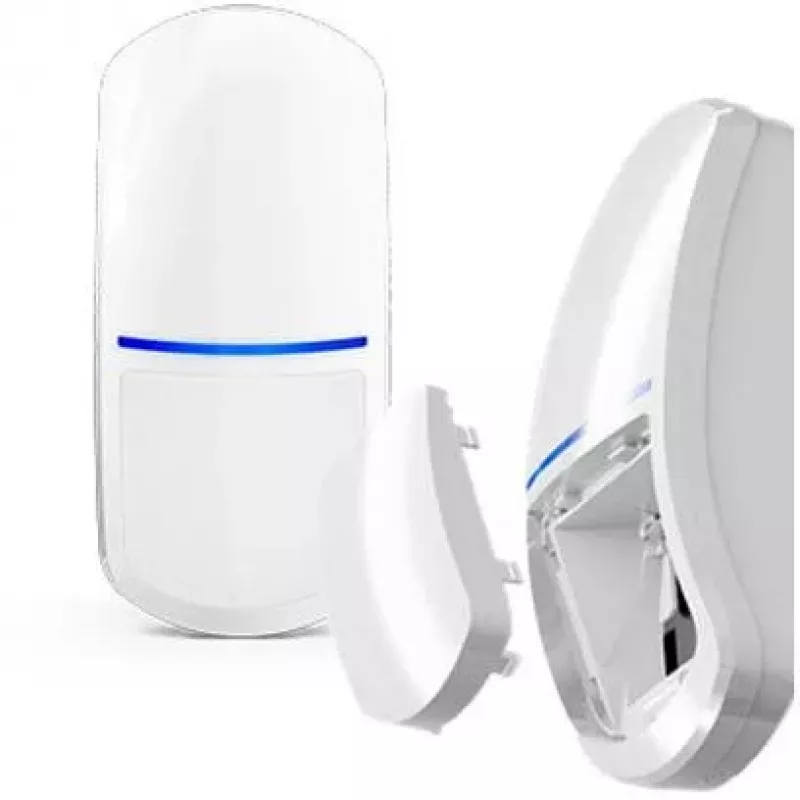

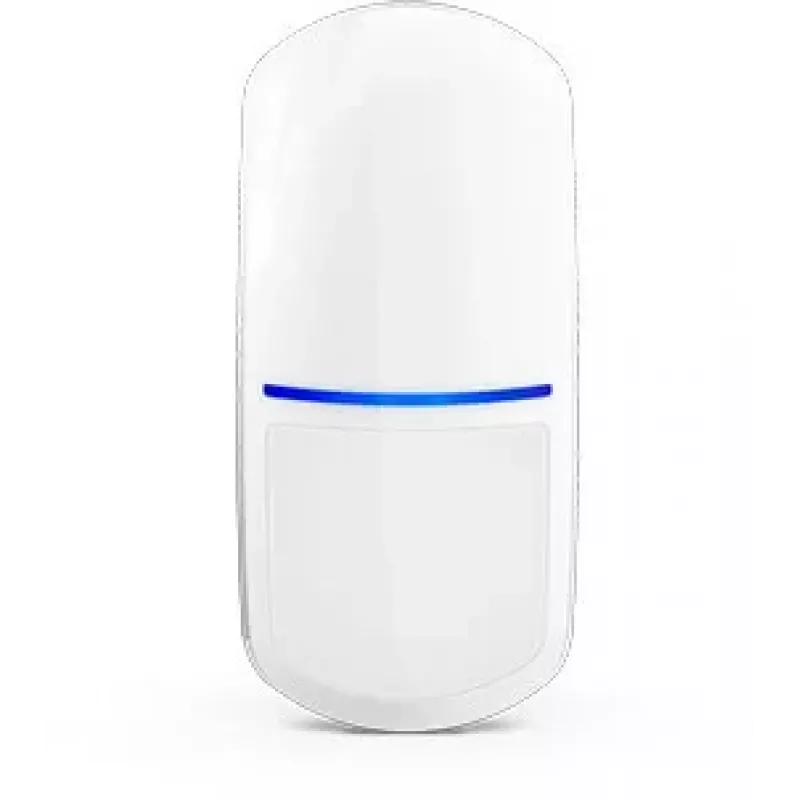

SATEL SLIM-PIR Detetor de movimento PIR digital

The SATEL SLIM-PIR is a digital passive infrared (PIR) motion detector designed for indoor security applications. With a sleek, slim profile and advanced digital signal processing, it offers reliable detection while minimizing false alarms. Ideal for residential and commercial premises, this detector is pet immune up to 20 kg and features adjustable sensitivity and digital temperature compensation.

Advantages

Digital PIR technology ensures high immunity to false alarms caused by temperature changes, drafts, or small animals. The slim design allows discreet installation in any interior. Easy configuration with selectable EOL resistors and adjustable sensitivity makes it versatile for various alarm systems.

Suitable for

• Indoor security systems in homes and offices
• Areas requiring pet immunity up to 20 kg
• Installations where a compact, low-profile detector is needed
• Integration with Grade 2 compliant alarm panels

Key specifications

• Detection range: 15 m
• Detection angle: 90°
• Recommended mounting height: 2.4 m
• Power supply: 12 V DC (±15%)
• Maximum current consumption: 12 mA
• Alarm output: NC relay (40 mA / 24 V DC)
• Tamper output: NC relay (40 mA / 24 V DC)
• Pet immunity: up to 20 kg
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50131-1)
• Security grade: Grade 2 (EN 50131-2-2)
• Digital temperature compensation: Yes
• Adjustable sensitivity: Yes
• EOL resistor support: 1.1 kΩ / 2.2 kΩ selectable
• Warm-up time: 30 seconds
• Alarm signaling time: 2 seconds

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m and avoid direct sunlight or heat sources. Use with a compatible Grade 2 alarm panel for full security compliance.
