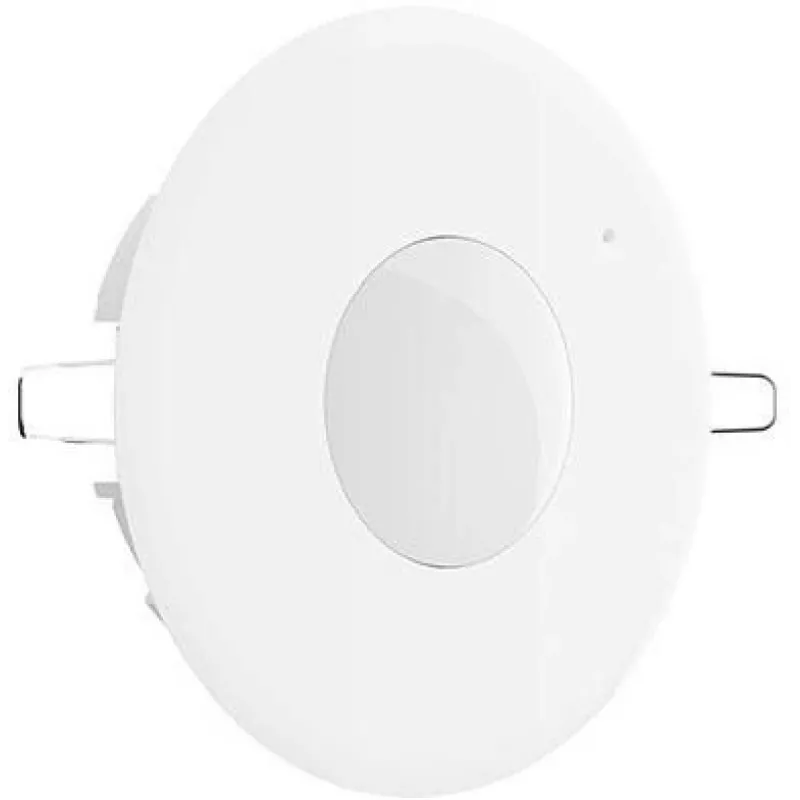

SATEL SLIM-R-PIR-PRO BUS Detector de Movimento PIR de Teto com Anti-Mascaramento, Encastre, Branco

The SATEL SLIM-R-PIR-PRO BUS is a professional-grade ceiling-mounted PIR motion detector designed for recessed installation in indoor security systems. It features active infrared anti-masking technology to prevent tampering and communicates via the SATEL BUS protocol for seamless integration with compatible alarm panels.

Advantages

This detector offers 360° coverage with a maximum detection diameter of 16 meters, making it ideal for large rooms. The recessed design ensures a discreet appearance, while the anti-masking function provides enhanced security against attempts to block the sensor. Remote sensitivity adjustment via DLOADX software allows fine-tuning without physical access.

Suitable for

• Indoor ceiling-mounted security applications
• Commercial and residential premises requiring discreet detection
• Integration with SATEL BUS alarm systems
• Areas needing anti-masking protection

Key specifications

• Detection method: Passive Infrared (PIR)
• Mounting type: Ceiling, recessed
• Communication interface: SATEL BUS
• Anti-masking: Yes (active IR)
• Detection angle: 360°
• Max. detection area diameter: 16 m (at 3.7 m mounting height)
• Recommended mounting height: 2.4 m to 3.7 m
• Power supply: 12 V DC (±15%)
• Standby current: 15 mA
• Maximum current: 17 mA
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Security grade: Grade 2 (EN 50131-2-2)
• Tamper protection: Enclosure opening, removal from mounting surface
• Digital signal processing: Yes
• Sensitivity adjustment: Yes (remote via DLOADX)
• Recessed hole diameter: 75 mm
• Housing material: ABS plastic
• Colour: White

Recommendations

For optimal performance, mount at the recommended height and ensure the recessed hole diameter matches 75 mm. Use with SATEL BUS control panels for full functionality. Regularly test the anti-masking feature to maintain security integrity.
