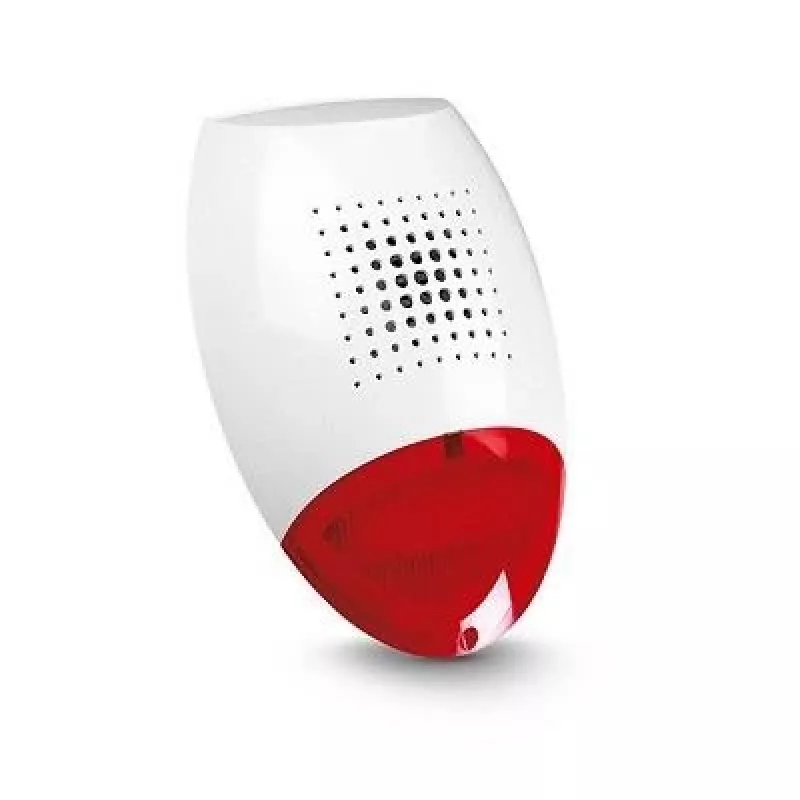

SATEL SP-500 R Sirene exterior com fio com luz intermitente, caixa vermelha, LED branco

The SATEL SP-500 R is a high-performance wired outdoor siren designed for reliable alarm signaling in security systems. Combining a powerful acoustic sounder with a bright LED strobe, this siren delivers both audible and visual alerts to deter intruders and notify of alarm events. Built with a durable polycarbonate housing and IP54 weatherproof rating, it is suitable for outdoor installation in residential, commercial, and industrial environments.

Advantages

• Dual signaling: acoustic (120 dB) and optical (white LED strobe) for maximum deterrence.
• Robust outdoor design: IP54 protection against dust and water splashes, operating from -25°C to +55°C.
• Tamper protection: anti-sabotage switches against opening and wall detachment.
• Battery backup capability: space for a 12V 1.3Ah battery (not included) ensures operation during power loss.
• Three selectable modulated tones for flexible alarm sound patterns.
• Separate trigger inputs for acoustic and optical signals allow independent control.

Suitable for

• Outdoor alarm systems in houses, offices, warehouses, and industrial sites.
• Integration with wired security control panels (12V DC).
• Applications requiring both loud audible alerts and visual strobe warnings.

Key specifications

• Type: Acoustic-optical wired outdoor siren
• Sound level: 120 dB at 1 m
• Power supply: 12 V DC
• Max current consumption: 370 mA
• Operating temperature: -25°C to +55°C
• Ingress protection: IP54
• Housing material: Polycarbonate
• Housing color: Red
• Strobe color: White (LED)
• Sound tones: 3 modulated tones
• Battery backup: Yes (space for 12V 1.3Ah battery, not included)
• Tamper protection: Anti-sabotage (opening, wall detachment)
• Compliance: EN 50131 Grade 2
• Alarm trigger inputs: Separate for acoustic and optical signals

Recommendations

For optimal performance, install the siren at a height of at least 2 meters and connect to a compatible 12V DC alarm control panel. Use a weatherproof junction box for cable connections. The backup battery should be ordered separately if required.
