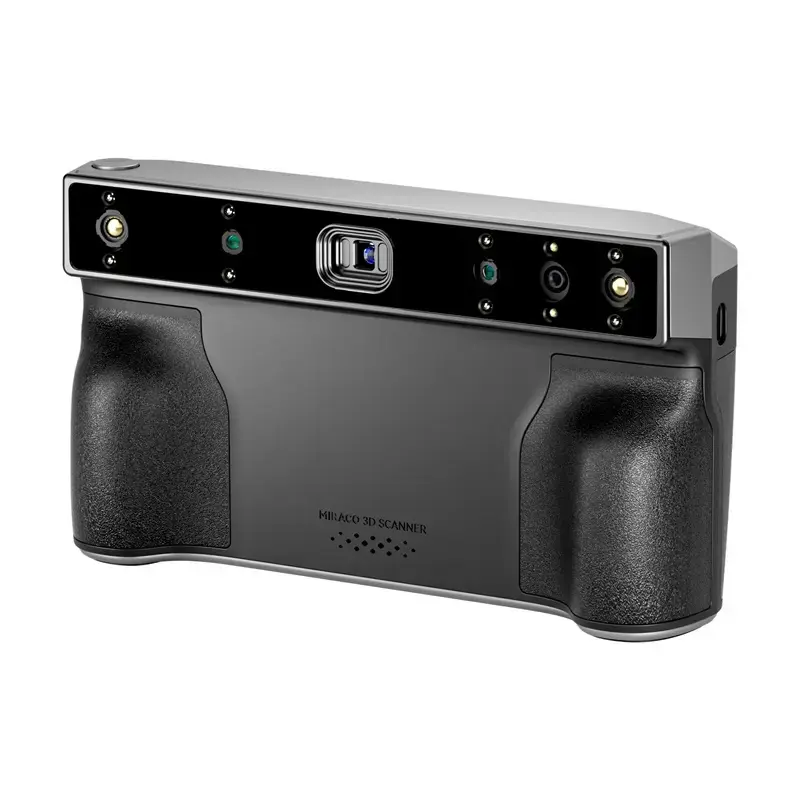

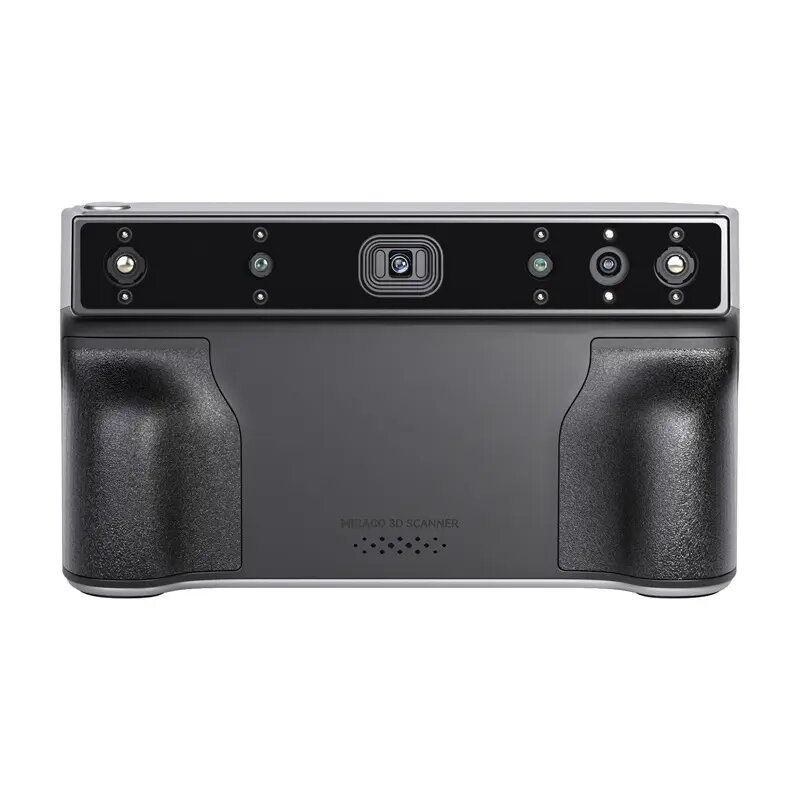

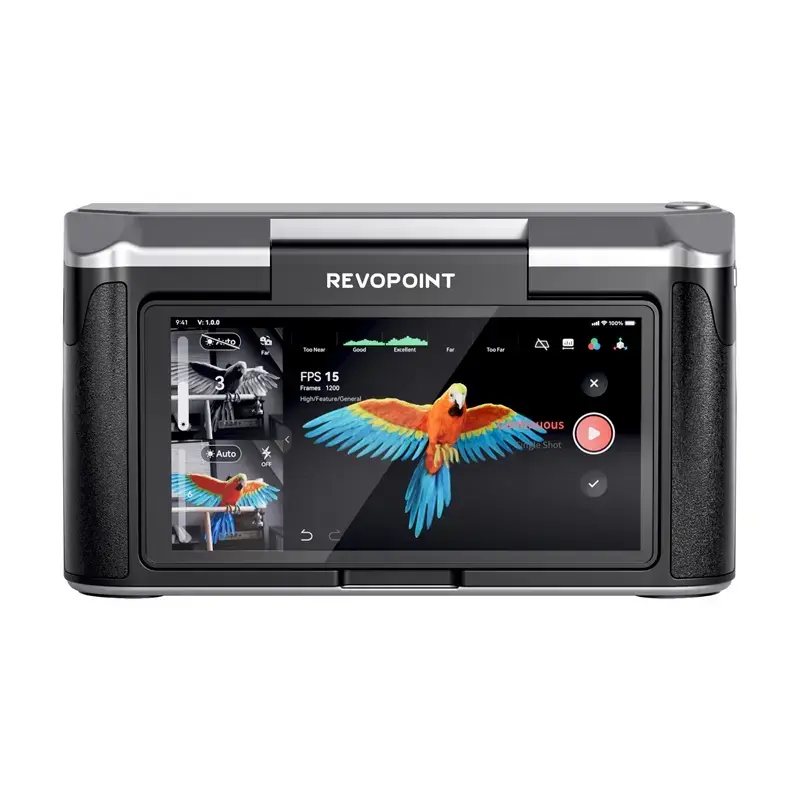

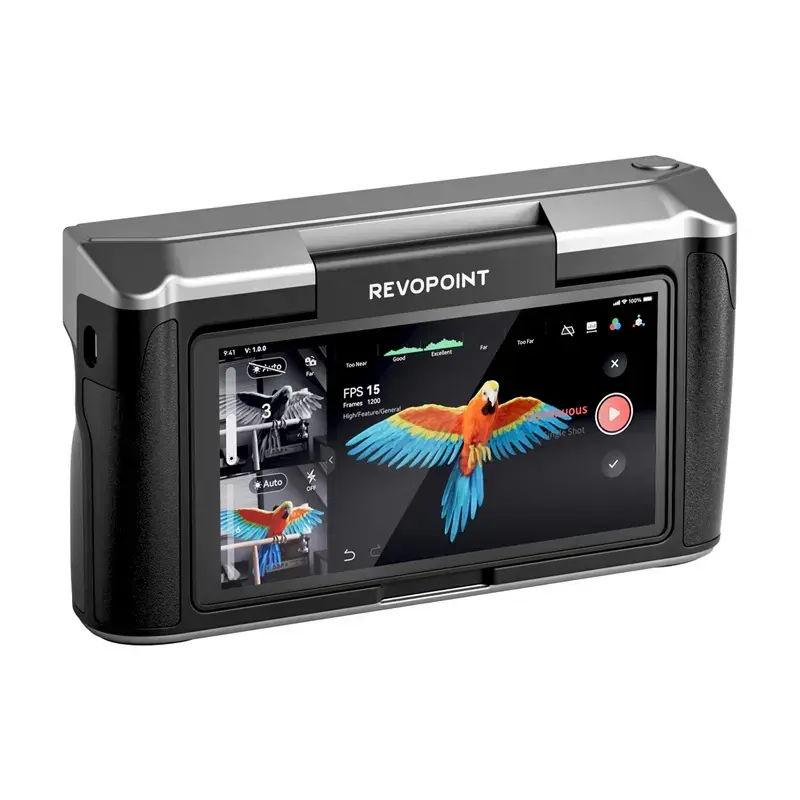

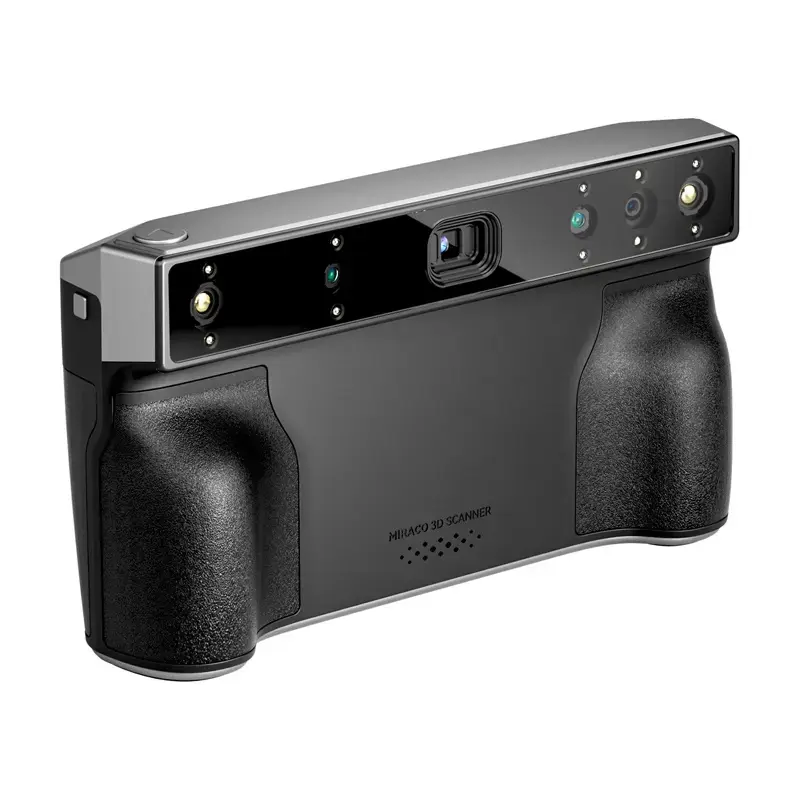

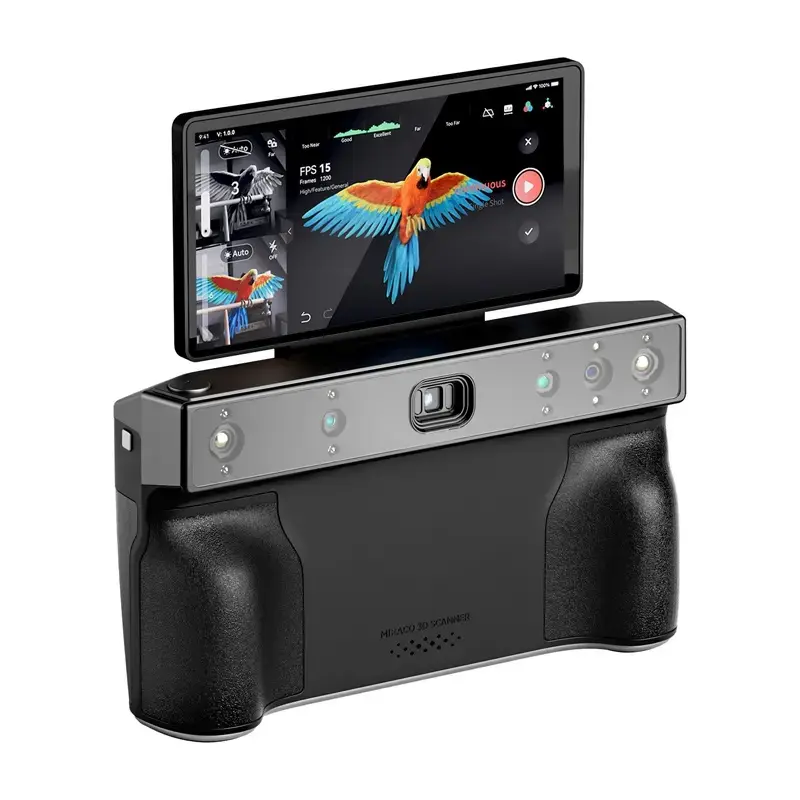

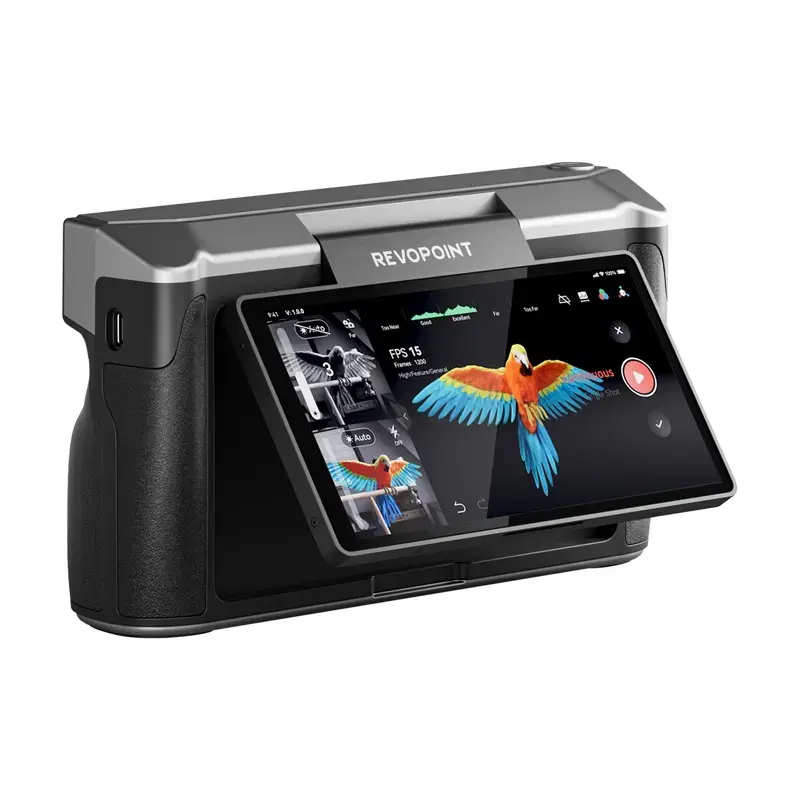

Scanner 3D Revopoint Miraco Pro High Precision Portable

Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
Scanner 3D Revopoint Miraco Pro High Precision Portable
1 889,18 €
PDF
PDF
Stock 27 Código 775171 Modelo Miraco Pro Garantia 3 anos

Envios e devoluções

Entrega prevista quinta-feira, 10 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Descrição

The Revopoint Miraco Pro is a high-precision portable 3D scanner that combines wireless operation, a lightweight design and an integrated touchscreen for standalone use. Equipped with a quad infrared structured-light depth system and a 48MP RGB camera, the device captures both fine details and larger surfaces and stores thousands of frames on the built-in memory. The scanner supports Single Shot and Continuous Shot modes and is designed for mobile scanning tasks in engineering, design and content creation.

Advantages

The Miraco Pro offers true wireless freedom with a 5,000 mAh battery and 50W fast charging, plus a compact 750 g body for handheld operation. Its quad-depth camera system provides high-detail capture down to 0.02 mm in single-shot mode and up to 0.2 mm for larger objects, while a 48MP RGB camera delivers photorealistic color. Internal processing (2.8 GHz octa-core processor, 32 GB RAM and 256 GB storage) and a 6-inch AMOLED 2K screen allow scanning, basic post-processing and previewing results without a computer. Additional reliability comes from a 9-axis IMU, IP45-rated operation range and Wi‑Fi 6 connectivity.

Suitable for

  • Reverse engineering of small to medium parts
  • Quality inspection and dimensional measurement
  • 3D printing and rapid prototyping workflows
  • Asset digitization for design, archiving and visualization
  • Content creation and photorealistic scanning for media

Key specifications

  • Manufacturer: Revopoint — Model: Miraco Pro
  • Technology: Quad infrared structured light with optical zoom
  • Single frame precision: up to 0.02 mm — frame accuracy: up to 0.04 mm
  • Photogrammetric length accuracy: 0.02 mm + 0.05 mm × L (m)
  • Fusion point distance: up to 0.05 mm
  • Working distance: 100–1000 mm
  • Single capture area: 28 × 53 mm @100 mm to 975 × 775 mm @1000 mm
  • Minimum scan volume: 10 × 10 × 10 mm — Maximum scan volume: 4 × 4 × 4 m
  • Scanning speed: up to 20 frames per second
  • Camera resolution: depth camera 2 MP, RGB camera 48 MP
  • Processor and GPU: 8-core ARM A76 (2.4–2.8 GHz), Mali G52 GPU
  • Memory: 32 GB RAM + 256 GB internal storage (up to ~10,000 frames monochrome / ~8,000 frames with color)
  • Light source: Class 1 infrared structured light — Fill lights: depth camera 8, RGB 2
  • Sensors: 9-axis IMU — Protection/classification: IP45 — Connectivity: Wi‑Fi 6

How to use

Charge the device with the included fast charger, power it on and select Single Shot for high-detail captures or Continuous Shot when speed is required. Position the scanner at an appropriate working distance (100–1000 mm) and move around the object to capture overlapping frames; the integrated 6-inch AMOLED screen provides live preview and basic editing tools. Use the included calibration plates and turntable for controlled scans of small objects, and transfer or export meshes from internal storage when post-processing on a PC or for 3D printing.

Recommendations

For best results, start with Single Shot mode for small, detailed parts and use the close-range calibration plate. For larger objects, use Continuous Shot and maintain consistent lighting; ensure the object surface has sufficient texture or apply the included magic mats to improve tracking. Store and back up scan data regularly from the internal 256 GB storage.
Destaques principais
  • Reverse engineering of small to medium parts
  • Quality inspection and dimensional measurement
  • 3D printing and rapid prototyping workflows
  • Asset digitization for design, archiving and visualization
  • Content creation and photorealistic scanning for media
  • Manufacturer: Revopoint — Model: Miraco Pro
  • Technology: Quad infrared structured light with optical zoom
  • Single frame precision: up to 0.02 mm — frame accuracy: up to 0.04 mm
  • Photogrammetric length accuracy: 0.02 mm + 0.05 mm × L (m)
  • Fusion point distance: up to 0.05 mm
  • Working distance: 100–1000 mm
  • Single capture area: 28 × 53 mm @100 mm to 975 × 775 mm @1000 mm
  • Minimum scan volume: 10 × 10 × 10 mm — Maximum scan volume: 4 × 4 × 4 m
  • Scanning speed: up to 20 frames per second
  • Camera resolution: depth camera 2 MP, RGB camera 48 MP
  • Processor and GPU: 8-core ARM A76 (2.4–2.8 GHz), Mali G52 GPU
  • Memory: 32 GB RAM + 256 GB internal storage (up to ~10,000 frames monochrome / ~8,000 frames with color)
  • Light source: Class 1 infrared structured light — Fill lights: depth camera 8, RGB 2
  • Sensors: 9-axis IMU — Protection/classification: IP45 — Connectivity: Wi‑Fi 6

Especificações

Especificações
Peso
5 kg
