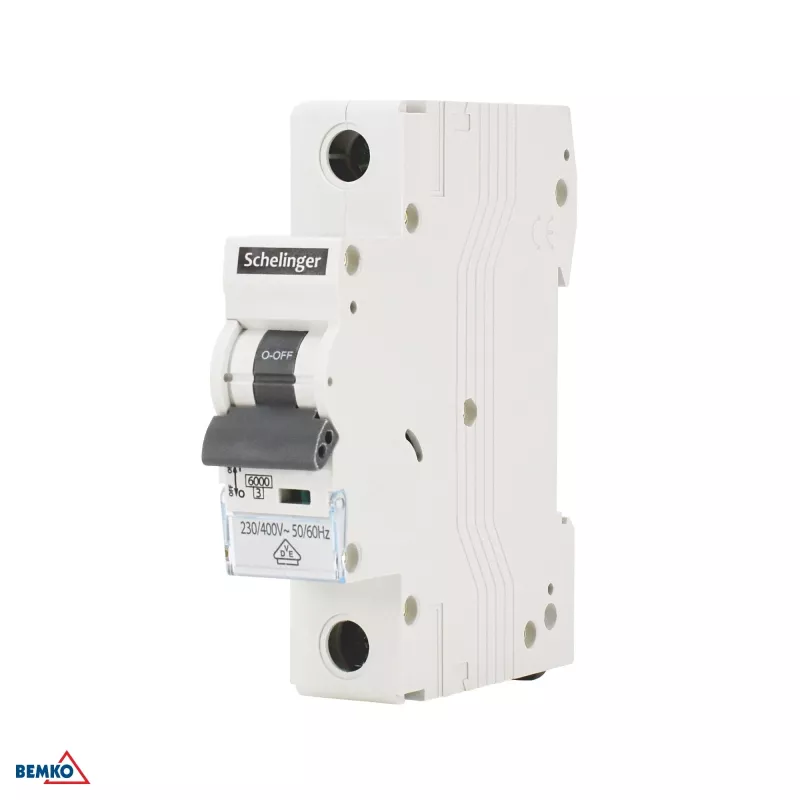

SCHELINGER A02-G8-1P-C20 disjuntor 6kA 1 polo, curva C, 20A

The SCHELINGER A02-G8-1P-C20 stands apart from typical miniature circuit breakers by combining a robust 6 kA breaking capacity with precise C-curve tripping, all in a compact single-pole design. This MCB is engineered to protect circuits against overloads and short circuits, ensuring reliable operation in residential and commercial installations.

Highlights

• Single-pole (1P) MCB for 230/400 V AC systems
• Rated current of 20 A with C tripping characteristic
• Short-circuit breaking capacity of 6 kA
• DIN rail mounting for quick installation (EN 60715)
• Complies with EN 60898-1, VDE and CE certified

In daily use

Designed for everyday reliability, this breaker protects cables and equipment from damage caused by overcurrent. The C-curve is ideal for circuits with moderate inrush currents, such as lighting and socket outlets. Screw terminals accept conductors from 1 to 25 mm², and the clear ON/OFF position indicator allows immediate status recognition. With an IP20 protection degree, it is intended for installation inside distribution boards.

Full specifications

• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 1P
• Rated current: 20 A
• Tripping curve: C
• Short-circuit breaking capacity: 6 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Terminal type: Screw terminals
• Terminal capacity: 1-25 mm²
• Protection degree: IP20
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Standard compliance: EN 60898-1
• Certifications: VDE, CE
• Operating temperature: -25°C to +55°C
• Energy limiting class: 3
• Indication: ON/OFF position indicator

Final note

For dependable circuit protection with a proven VDE certification, the SCHELINGER A02-G8-1P-C20 delivers consistent performance and easy integration into any standard distribution board.
