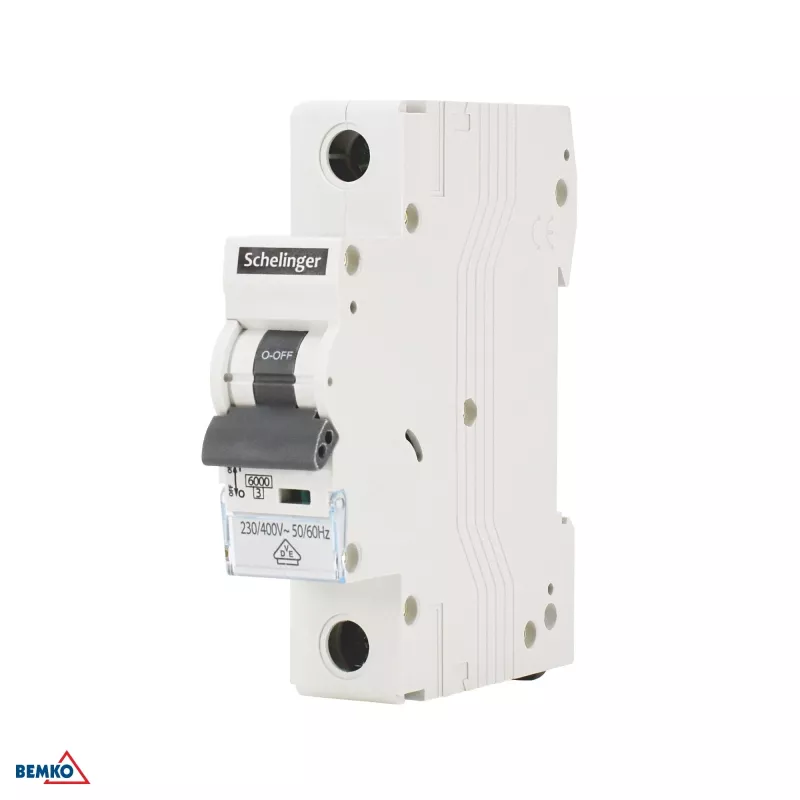

SCHELINGER MCB 6kA 1P C16A VDE disjuntor

Miniature circuit breaker delivering robust overload and short-circuit protection for residential and light commercial circuits. With a 16 A rated current and C tripping curve, it reliably safeguards lighting and socket outlet installations against fault currents up to 6 kA.

Advantages

The SCHELINGER A02-G8-1P-C16 combines dependable protection with straightforward installation. Its C curve suits circuits with moderate inrush currents, while the clear ON/OFF indicator allows quick status checks. Screw terminals accept conductors up to 25 mm², ensuring secure connections. Electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles guarantee long-term reliability.

Suitable for

• Protection of lighting circuits in residential buildings
• Socket outlet circuits in homes and offices
• Control circuits with moderate inductive loads
• Distribution boards requiring VDE-approved components

Key specifications

• Number of poles: 1P (single pole)
• Rated current: 16 A
• Tripping curve: C
• Rated breaking capacity: 6 kA
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail 35 mm
• Standards: IEC/EN 60898-1, VDE
• Terminal capacity: 1-25 mm²
• Protection degree: IP20 (terminals)
• Operating temperature: -25°C to +50°C
• Certifications: CE, VDE

Recommendations

For optimal performance, install this MCB in a suitable distribution board with proper ventilation. Ensure that the upstream protection is coordinated and that the circuit load does not exceed the rated current. Regular inspection of terminal tightness is advised.
