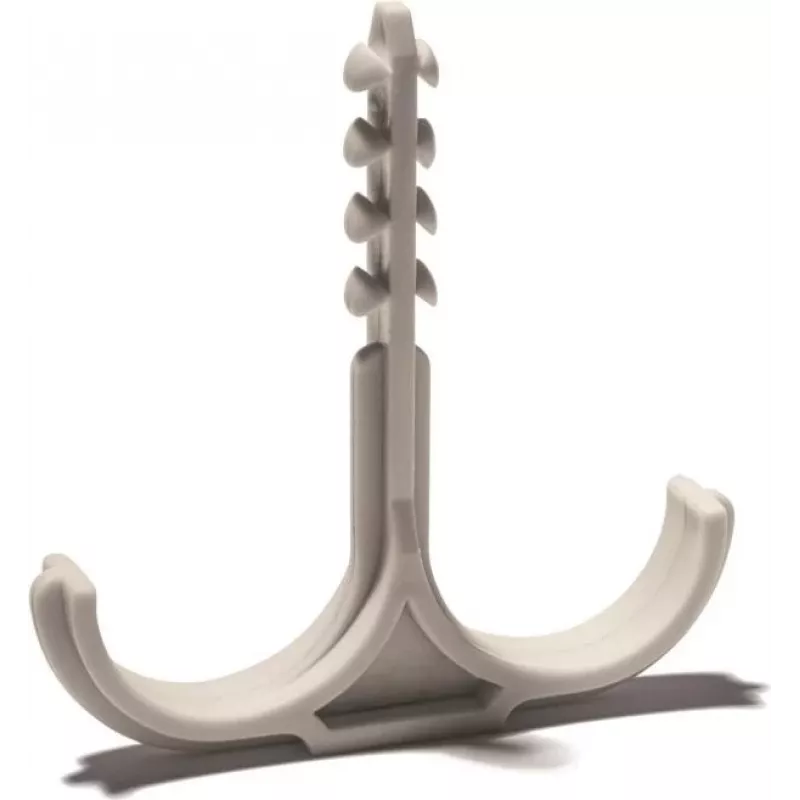

Schnabl DSS 20-25 H0 braçadeira dupla cinzento-claro para condução de tubos (30240)

Parallel routing of electrical pipes with different diameters often requires multiple separate fasteners, leading to extra drilling, uneven spacing, and wasted installation time. The Schnabl DSS 20-25 H0 double plug-in clamp solves this by holding two pipes of 20 mm and 25 mm diameter in a single, tool-free mounting step. Its halogen-free polypropylene body is light grey, UV-resistant, and self-extinguishing, making it suitable for long-term indoor and outdoor use.

Who is it for

Electricians and installers who need a fast, reliable way to secure two parallel pipes of different sizes without screws or additional brackets. Ideal for residential, commercial, and industrial electrical installations where halogen-free materials are required.

Main features

• Double plug-in clamp for parallel routing of one 20 mm and one 25 mm pipe
• Tool-free installation using Schnabl plug-in technology
• Halogen-free polypropylene (PP) in light grey
• UV-resistant and self-extinguishing
• Operating temperature range: -20°C to +90°C
• Resistant to oils, greases, fuels, acids, and alkalis
• Packaging unit: 100 pieces

Specifications

• Product type: Double plug-in clamp
• Series: DSS (Doppel-Steckschelle)
• Pipe diameter 1: 20 mm
• Pipe diameter 2: 25 mm
• Material: Halogen-free polypropylene (PP)
• Colour: Light grey
• Mounting system: Schnabl plug-in technology
• UV resistance: Yes
• Temperature range: -20°C to +90°C
• Fire behavior: Self-extinguishing
• Chemical resistance: Oils, greases, fuels, acids, alkalis
• Installation method: Tool-free, direct plug-in
• Design: For parallel routing of two pipes
• Environmental compliance: Halogen-free

Tips

For a neat installation, mark the position of both pipes before drilling the mounting hole. The clamp can be removed and repositioned if needed, but avoid excessive force to prevent damage to the plug-in mechanism.
