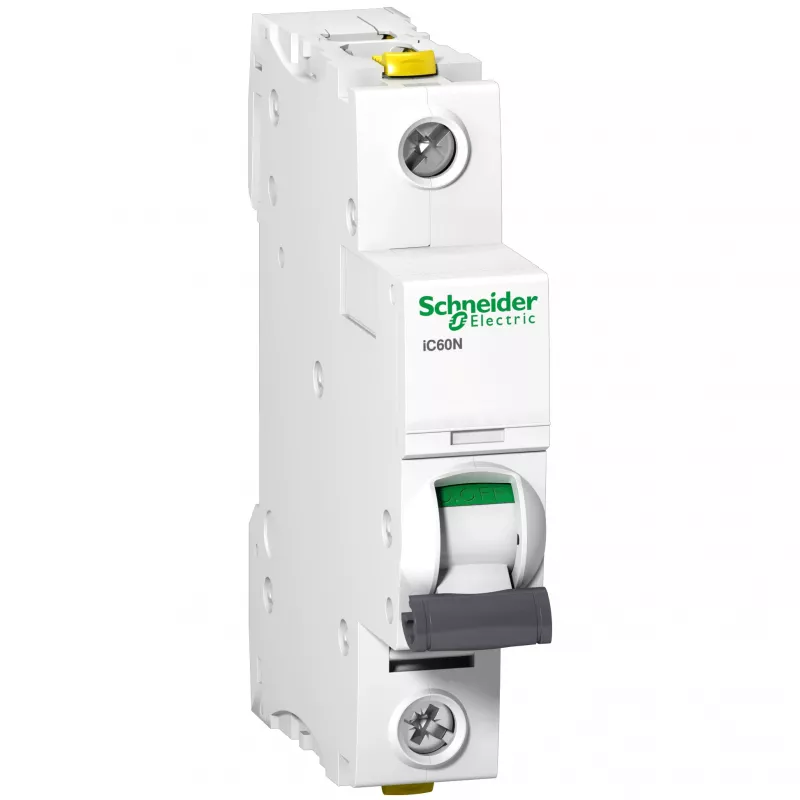

Schneider Electric A9F03106 disjuntor 6A 10kA 1P curva C Acti9 iC60N

The Schneider Electric A9F03106 is a high-performance miniature circuit breaker (MCB) from the Acti9 iC60N series, designed for reliable protection of electrical circuits against overloads and short circuits. With a rated current of 6 A and a breaking capacity of 10 kA, this 1-pole breaker ensures safety and continuity of supply in residential, commercial, and industrial applications.

Advantages

Compact design for DIN rail mounting, thermal-magnetic trip technology for precise protection, and compliance with international standards EN/IEC 60898-1 and EN/IEC 60947-2. Suitable for both AC and DC networks, with an IP20 rating for indoor use.

Suitable for

• Protection of lighting circuits, small appliances, and control systems
• Installation in distribution boards and sub-distribution boards
• Use in residential, commercial, and light industrial environments

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Range: Acti9
• Model Series: iC60N
• Poles: 1P
• Rated Current (In): 6 A
• Trip Curve: C
• Breaking Capacity (Icu): 10 kA at 230/240 V AC
• Rated Operational Voltage: 220-240 V AC 50/60 Hz
• Network Type: AC, DC
• Mounting Type: DIN Rail
• IP Protection Rating: IP20
• Standards: EN/IEC 60898-1, EN/IEC 60947-2
• Terminal Capacity: 1 to 25 mm² (rigid), 1 to 16 mm² (flexible)
• Mechanical Endurance: 20000 cycles
• Electrical Endurance: 10000 cycles
• Operating Temperature: -35 to 70 °C
• Pollution Degree: 3

Recommendations

For optimal protection, pair this MCB with a compatible residual current device (RCD) from the Acti9 range. Always follow local electrical regulations and installation guidelines.
